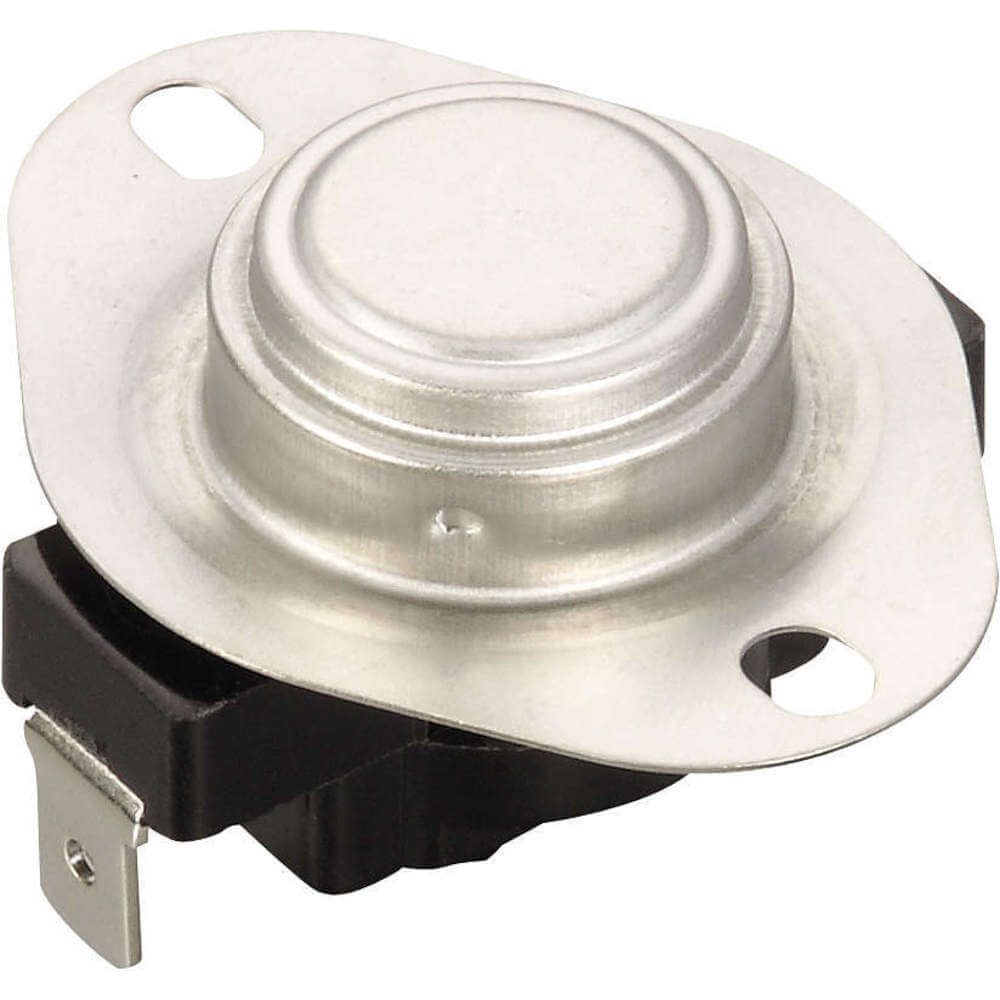

APPROVED VENDOR 6UED9 Fan Switch Closes At 150 120-277v
Item: AF2HXYModel: 6UED9
7 In Stock
Ships within 2 days via
10.00% off
€7.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Disc Control |
| Application | Fan Control |
| Circuit #1 Switch Closes @ (f) | 150 |
| Circuit #1 Switch Closes @ (f) | 150°F |
| Circuit #1 Switch Opens @ (f) | 130°F |
| Circuit #1 Switch Opens @ (f) | 130 |
| Contact Form | SPST |
| Depth | 1" |
| Face Diameter | 2" |
| Height | 1 1/2" |
| Inductive Amps @ 120v | 10 |
| Inductive Amps @ 120v | 10A |
| Inductive Amps @ 240v | 5A |
| Inductive Amps @ 240v | 5 |
| Input Voltage | 120/277V AC |
| Ip Rating | Not Rated |
| Mounting | Surface Mount |
| Mounting Base Length | 2" |
| Mounting Base Width | 1 5/8" |
| Mounting Hole Center To Center Distance | 1 5/8" |
| Mounting Hole Diameter | 1/8" |
| Number Of Mounting Holes | 2 |
| Overall Depth | 1" |
| Overall Height | 1 1/2" |
| Pilot Contact Rating | 125 VA |
| Pilot Duty Contacts (va) | 125 VA |
| Pilot Duty Contacts (va) | 125 |
| Product Type | Temperature Limit Controller |
| Reset Type | Automatic Reset |
| Resistive Amps @ 120v | 25 |
| Resistive Amps @ 120v | 25A |
| Resistive Amps @ 240v Ac | 25A |
| Resistive Amps @ 277v | 21.6 |
| Resistive Amps @ 277v | 21.6A |
| Standards | Culus Recognized |
| Switch Action | Close On Rise |
| Switch Closing Temperature | 150°F |
| Switch Opening Temperature | 130°F |
| Switch Type | SPST |
| Temp. Range | +130°F to +150°F |
| Temperature Differential | 20°F |
| Terminal Size | 1/4" |
| Type | Fan |
| Voltage | 120-277V AC |
| Voltage Range | 120-277V |
| Weight | 0.7 oz. |
| Width | 1 3/4" |
| Wire Connections | Spade terminals |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
| HS code | 8536509040 |
| Country of Origin | CN |
Product Details:
- Fan Off Temp. (F) (130)
- Fan On Temp. (F) (150)
- Resistive Rating 240V (25)
Product Variants
| Model | Voltage | Differential | Depth | Inductive Amps @ 120v | Inductive Amps @ 240v | Circuit #1 Switch Closes @ (f) | Circuit #1 Switch Opens @ (f) | Switch Action | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6UED4 | 120-240V AC | 10°F | 2 1/8" | 14A | 10A | 90°F | - | Close On Rise | €8.38 | |
| 6UED6 | 120-240V AC | 10°F | 2 1/8" | 14A | 10A | 120°F | 110°F | Close On Rise | €8.47 | |
| 6UED7 | 120-277V AC | 15°F | 1" | 10A | 5A | 130°F | 115°F | Close On Rise | €8.84 | |
| 6UED8 | 120-277V AC | - | 1" | 10A | 5A | 140°F | 120°F | Close On Rise | €8.38 |
