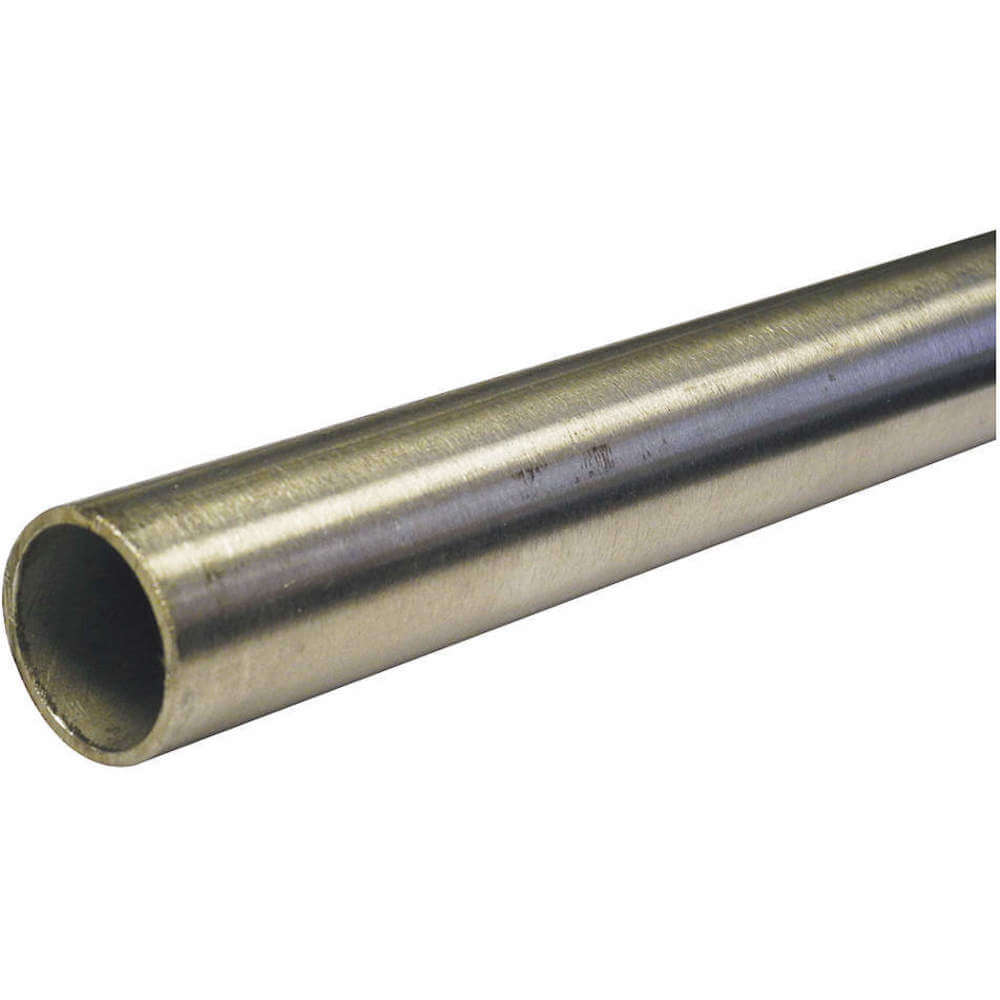

APPROVED VENDOR 5LVP6 Tubing Welded 1 1/4 Inch Outer Diameter 6 Feet 3227 Psi
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€214.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Fabrication | Welded |
| Form | Straight |
| Grade | Grade 316 |
| Inside Dia. | 1.01" |
| Length | 6" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Pressure | 3227 psi |
| Maximum Operating Pressure | 3227 psi @ 72°F |
| Maximum Operating Temperature | 1500°F |
| Minimum Operating Temperature | -325°F |
| Outside Dia. | 1 1/4" |
| Outside Dia. Tolerance | -0.005" to +0.005" |
| Overall Length | 6 ft. |
| Resistance Properties | Corrosion Resistant, Pitting Resistant |
| Standards | Astm A249, Astm A269 |
| Temp. Range | -325°F to +1500°F |
| Temper | Annealed |
| Type | Welded |
| Wall Thickness | 3/25" |
| Weight Per Foot | 1.448 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 3.74 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 183.39 |
| Ship width (cm) | 3.3 |
| HS code | 7306405064 |
| Country of Origin | US |
Product Variants
| Model | Wall Thickness | Outside Dia. | Inside Dia. | Temp. Range | Outside Dia. Tolerance | Grade | Material | Fabrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ZUSA-HTM-145 | 0.02" | 1/8" | 0.093" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €70.40 | |
| ZUSA-HTM-143 | 0.02" | 1/8" | 0.085" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €21.78 | |
| ZUSA-HTM-142 | 0.03" | 1/8" | 0.069" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €32.72 | |
| ZUSA-HTM-141 | 0.04" | 1/8" | 0.055" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €31.77 | |
| ZUSA-HTM-153 | 0.03" | 1/4" | 0.194" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €24.74 | |
| ZUSA-HTM-151 | 0.04" | 1/4" | 0.18" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €24.06 | |
| ZUSA-HTM-150 | 0.05" | 1/4" | 0.152" | -423°F to +1500°F | -0.005" to +0.005" | 304 | Stainless Steel | Welded | €41.74 |
