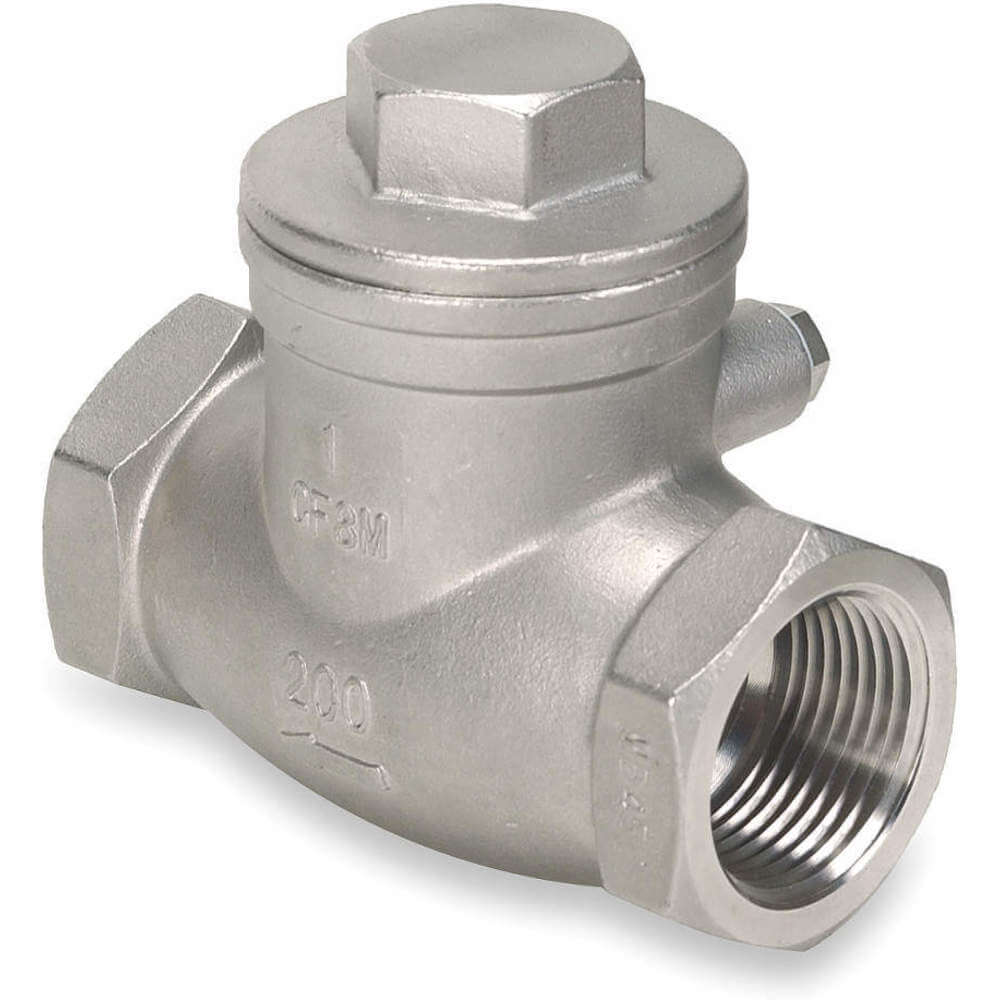

APPROVED VENDOR 4VMT7 Swing Check Valve 316 Stainless Steel 1/4 Inch Npt
Item: AD9XCXModel: 4VMT7
7 In Stock
Ships within 2 days via
10.00% off
€85.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swing Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | 316 Stainless Steel |
| Cap To Inlet Center | 1.688" |
| Cap To Inlet Center | 1-11/16" |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Disc Material | Stainless Steel |
| Flow Rate | 4 GPM |
| For Media | Steam, Water |
| Grade | Grade 316 |
| Height - Cap To Inlet Center | 1 11/16" |
| Hex Size | 1 1/16" |
| Includes Counterweight | No Counterweight |
| Length | 2 9/16" |
| Manufacturer Warranty | 1 yr. |
| Material | Stainless Steel |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | 200 psi |
| Max. Temp. | 353°F |
| Max. Water Pressure | 200 psi |
| Media Temperature Range | -4°F to +350°F |
| Mounting Orientation | Horizontal |
| Mounting Position | Horizontal |
| Operating Temperature - Maximum | 350°F |
| Operating Temperature - Minimum | -4°F |
| Overall Height | 2.562" |
| Overall Length | 2.56" |
| Pipe Size | 1/4" |
| Seal Material | PTFE |
| Silent Check | Standard |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Width | 1.828" |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 6.1 |
| HS code | 8481302090 |
| Country of Origin | CN |
Product Variants
| Model | Connection Type | Body Material | Pipe Size | Cracking Pressure | Max. Water Pressure | Mounting Position | Cap To Inlet Center | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10F288 | FNPT x FNPT | Bronze | 1/4" | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 1.312" | 406°F | €66.43 | |
| 10F289 | FNPT x FNPT | Bronze | 3/8" | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 1.312" | 406°F | €62.71 | |
| 10F290 | FNPT x FNPT | Bronze | 1/2" | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 1.312" | 406°F | €72.16 | |
| 10F291 | FNPT x FNPT | Bronze | 3/4" | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 1.656" | 406°F | €84.35 | |
| 10F292 | NPT | - | - | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 1.312" | 406°F | €112.72 | |
| 10F293 | FNPT x FNPT | Bronze | 1 1/4" | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 2.062" | 406°F | €205.04 | |
| 10F294 | FNPT x FNPT | Bronze | 1 1/2" | 0.75 psi to 1 psi | 200 psi | Horizontal/Vertical | 2 1/4" | 406°F | €198.76 |
