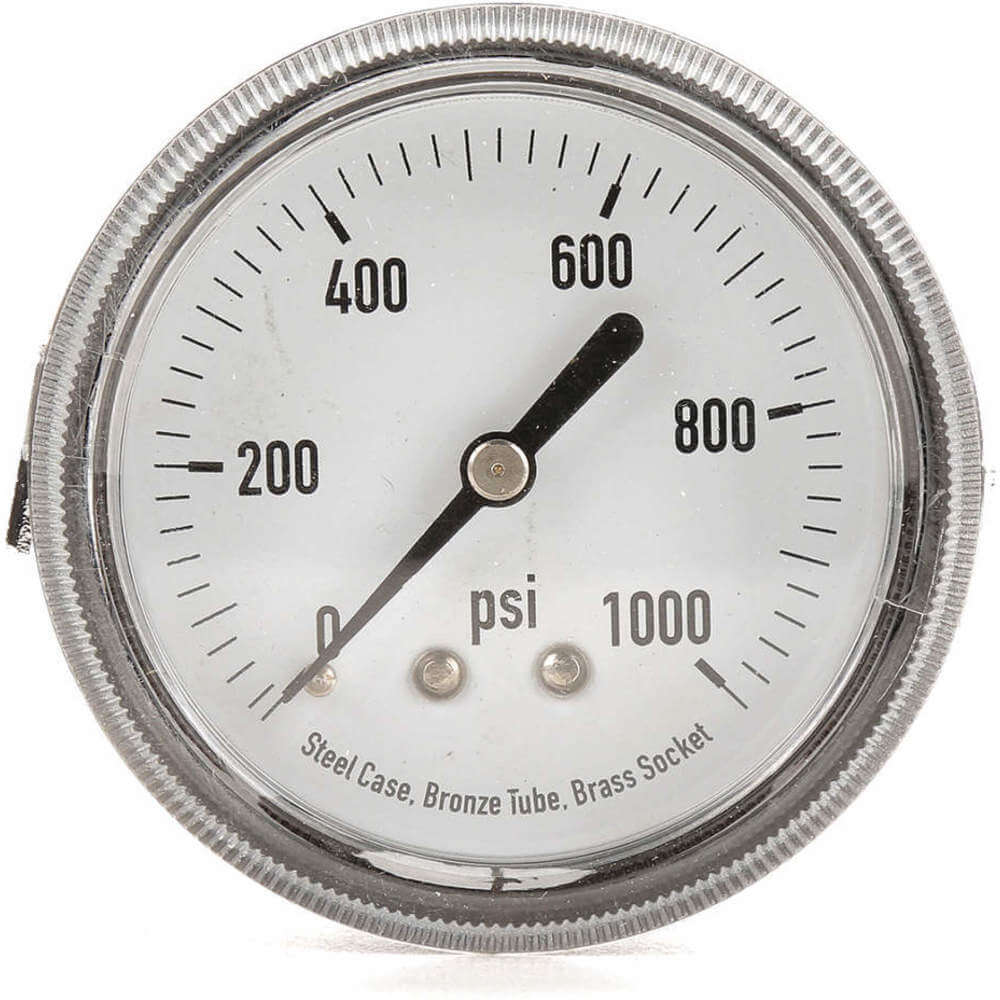

APPROVED VENDOR 4UA29 Panel Mount Gauge Clamp 2 1/2 Inch 1000psi
Item: AD9PVXModel: 4UA29
7 In Stock
Ships within 2 days via
5.00% off
€22.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Panel Mount Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +120°F |
| Application | General Purpose |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Back |
| Dial Color | White |
| Dial Size | 2 1/2" |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Mounting Type | U-Clamp |
| Gauge Type | U Clamp |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Included Calibration Certificate | No |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid-filled Case | No |
| Mounting Type | U Clamp |
| Nominal Dial Size | 2 1/2" |
| Non Sparking | No |
| Operating Temp. | -40°F to +120°F |
| Panel-mountable | Yes |
| Pressure | 0 psi to 1000 psi |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 1000 psi |
| Primary Scale Minor Graduations | 20 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 1000 psi |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Smallest Graduation | 20 psi |
| Socket Material | Brass |
| Tube Material | Bronze |
| Vibration Resistance | None |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure | Process Connection Size | Nominal Dial Size | Dial Size | Range | Gauge Type | Smallest Graduation | Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4CEY3 | 0 psi to 1000 psi | 1/8" | 2" | 2" | 0 psi to 1000 psi | U Clamp | 10 psi | -40°F to +150°F | - | RFQ
|
 |
4CEY4 | 0 psi to 3000 psi | 1/8" | 2" | 2" | 0 psi to 3000 psi | U Clamp | 10 psi | -40°F to +150°F | - | RFQ
|
 |
4CEZ3 | 0 psi to 600 psi | 1/4" | 2" | 2" | 0 psi to 600 psi | U Clamp | 10 psi | -40°F to +150°F | €21.61 | |
 |
4CEZ4 | 0 psi to 1000 psi | 1/4" | 2" | 2" | 0 psi to 1000 psi | U Clamp | 10 psi | -40°F to +150°F | €21.61 | |
 |
4CFA3 | 0 psi to 400 psi | 1/4" | 2 1/2" | 2 1/2" | 0 psi to 400 psi | U Clamp | 10 psi | -40°F to +150°F | €23.49 | |
 |
4CFA5 | 0 psi to 1000 psi | 1/4" | 2 1/2" | 2 1/2" | 0 psi to 1000 psi | U Clamp | 10 psi | -40°F to +150°F | - | RFQ
|
 |
4CFA8 | 0 psi to 400 psi | 1/4" | 3 1/2" | 3 1/2" | 0 psi to 400 psi | U Clamp | 2 psi | -40°F to +150°F | - | RFQ
|
