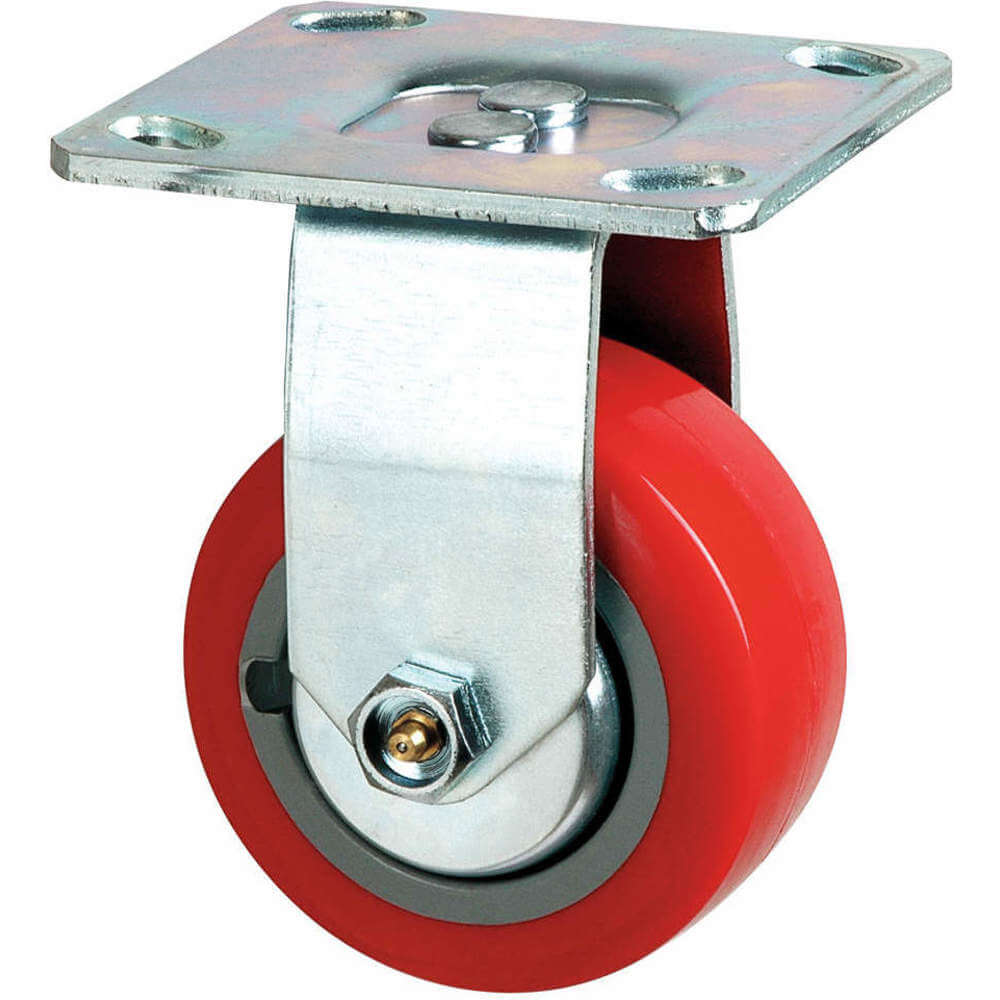

APPROVED VENDOR 4HXH6 Rigid Plate Caster 600 Lb 4 Inch Diameter
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€20.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Polyolefin |
| Durometer | 95 Shore A |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 3" x 3" |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 5 5/8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 0.187" |
| Plate Type | B |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Red |
| Wheel Core Material | Plastic |
| Wheel Diameter | 4" |
| Wheel Material | Polyurethane |
| Wheel Width | 2" |
| Wheel/tread Color | Red |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 1.37 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 31.75 |
| HS code | 8716903000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Brake Type | Mounting Height | Caster Load Rating Range | Mounting Plate Bolt Hole Pattern | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1G092 | 1 3/4" x 2 5/8" | 1 3/4" x 3" | Precision Ball | No Brake Included | 4 5/8" | 0 lbs. to 299 lbs. | C | 1 1/4" | €19.13 | |
 |
1G098 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | 4 5/8" | 0 lbs. to 299 lbs. | C | 1 1/4" | €23.50 | |
|
1G099 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | 5 1/8" | 0 lbs. to 299 lbs. | C | 1 1/4" | €24.85 | |
|
1G100 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | No Brake Included | 6 3/16" | 0 lbs. to 299 lbs. | C | 1 1/4" | €31.46 | |
 |
1G193 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | No Brake Included | 3 3/4" | 0 lbs. to 299 lbs. | D | 1 1/4" | €16.93 | |
|
1G194 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | No Brake Included | 4 11/16" | 0 lbs. to 299 lbs. | D | 1 1/4" | €23.57 | |
|
1G195 | 1 3/4" x 3" | 1 3/4" x 3" | Plain Bore | - | - | 0 lbs. to 299 lbs. | - | 1 1/4" | €15.60 |
