APPROVED VENDOR 4FMR1 Pressure Gauge Test 3-1/2 In | AD7NGV

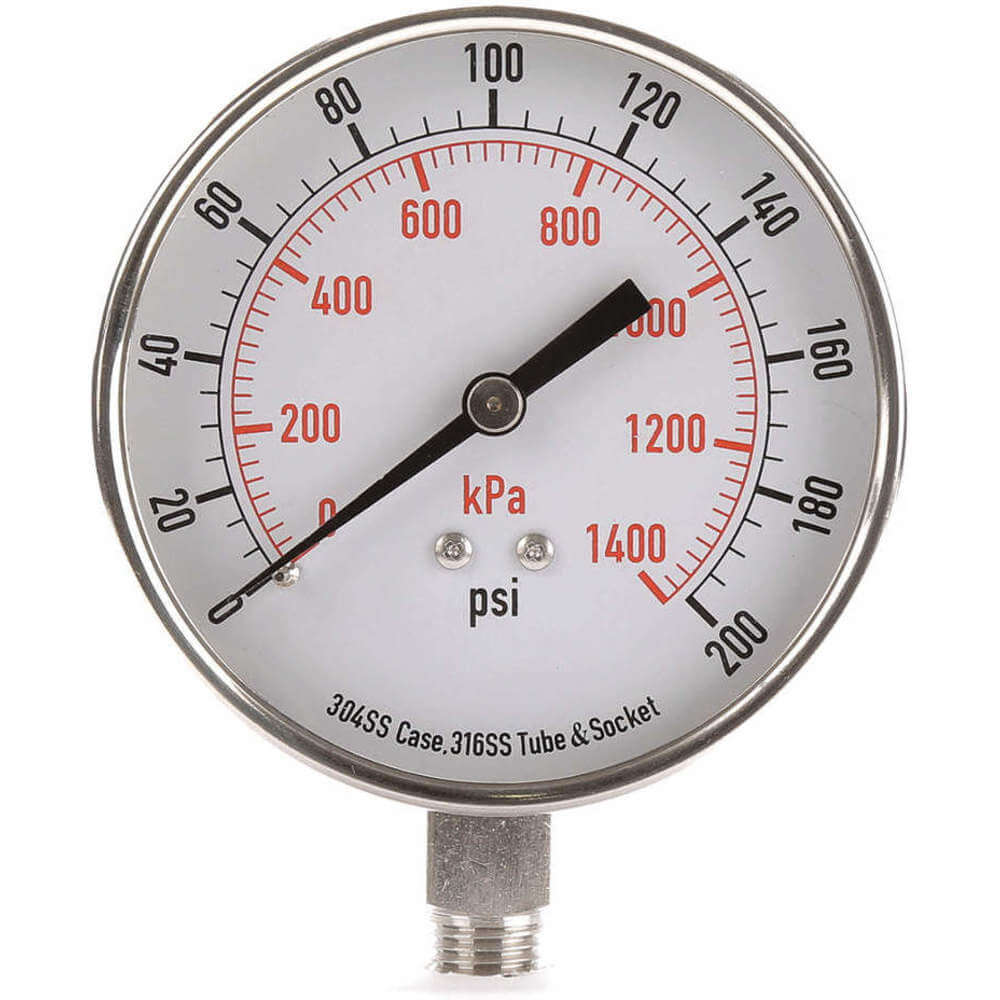

APPROVED VENDOR 4FMR1 Pressure Gauge Test 3-1/2 In

Item: AD7NGVModel: 4FMR1
7 In Stock

Ships within 2 days via

€114.14
5.00% off
€108.43 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pressure Gauge
Accuracy +/-3-2-3%
Accuracy Scale Mid Scale
Ambient Operating Temp. -40°F to +150°F
Application Test and Measurement
Bezel Material Crimped Stainless Steel
Blowout Safety Back No
Case Color Silver
Case Material Stainless Steel
Cleaned For Oxygen Service No
Connection Location LOWER
Dial Color White
Dial Size 3 1/2"
Dry Dampening Feature Not Available
Field Fillable No
Freeze Resistant Movement No
Gauge Application Corrosion Resistant Case
Gauge Case Liquid None
Gauge Case Material Stainless Steel
Gauge Case Material Grade Grade 304
Gauge Type Test
Gauge Wetted Parts Stainless Steel
Hazardous Location Rating Not Rated
Included Calibration Certificate No
Included Mounting Hardware No
Included Vent Plug No
Ip/nema Rating Not Rated
Lens Material Acrylic
Lens Material Gauge Plastic
Liquid-filled Case No
Mounting Type Stem Mount
Nominal Dial Size 3 1/2"
Non Sparking No
Operating Temp. -40°F to +150°F
Panel-mountable No
Pressure 0 psi to 200 psi
Pressure Gauge Type Commercial Pressure Gauge
Pressure Type Pressure
Primary Graduations 5
Primary Pressure 0 psi to 200 psi
Primary Scale Minor Graduations 5
Primary Scale Units PSI
Process Connection 1/4" NPT Male
Process Connection Gender Male
Process Connection Location Bottom
Process Connection Size 1/4"
Process Connection Type NPT
Removable Bezel No
Ring Material Crimped Stainless Steel
Scale Type Dual
Secondary Pressure Range 0 to 1400
Secondary Range 0 kPa to 1400 kPa
Secondary Scale Units Kpa
Sensor Material 316 Stainless Steel
Smallest Graduation 5 psi
Socket Material Stainless Steel
Tube Material Stainless Steel
Vibration Resistance None
Wetted Parts Material Stainless Steel

Shipping Info:

Ship weight (kg) 0.2
Ship height (cm)10.67
Ship length (cm)9.65
Ship width (cm)3.81
HS code9026208000
Country of OriginCN

Product Variants

ProductModelLens MaterialSocket MaterialCase ColorCase MaterialSensor MaterialProcess Connection SizeNominal Dial SizeProcess Connection LocationPrice
APPROVED VENDOR 18C739 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8EBZ 18C739AcrylicCopper Alloy HPB59-1SilverStainless SteelCopper Alloy1/4"4 1/2"Bottom€61.42
APPROVED VENDOR 18C741 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8ECB 18C741AcrylicCopper Alloy HPB59-1SilverStainless SteelCopper Alloy1/4"4 1/2"Bottom€61.42
APPROVED VENDOR 18C742 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8ECC 18C742AcrylicCopper Alloy HPB59-1SilverStainless SteelCopper Alloy1/4"4 1/2"Bottom€61.42
APPROVED VENDOR 18C743 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8ECD 18C743AcrylicCopper Alloy HPB59-1SilverStainless SteelCopper Alloy1/4"4 1/2"Bottom€61.42
APPROVED VENDOR 18C744 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8ECE 18C744AcrylicCopper Alloy HPB59-1SilverStainless SteelCopper Alloy1/4"4 1/2"Bottom€61.42
APPROVED VENDOR 18C746 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8ECG 18C746Acrylic-SilverStainless Steel----€61.42
APPROVED VENDOR 18C747 Pressure Gauge Mechanical Contractors 4-1/2 In | AA8ECH 18C747AcrylicCopper Alloy HPB59-1SilverStainless SteelCopper Alloy1/4"4 1/2"Bottom€61.42
