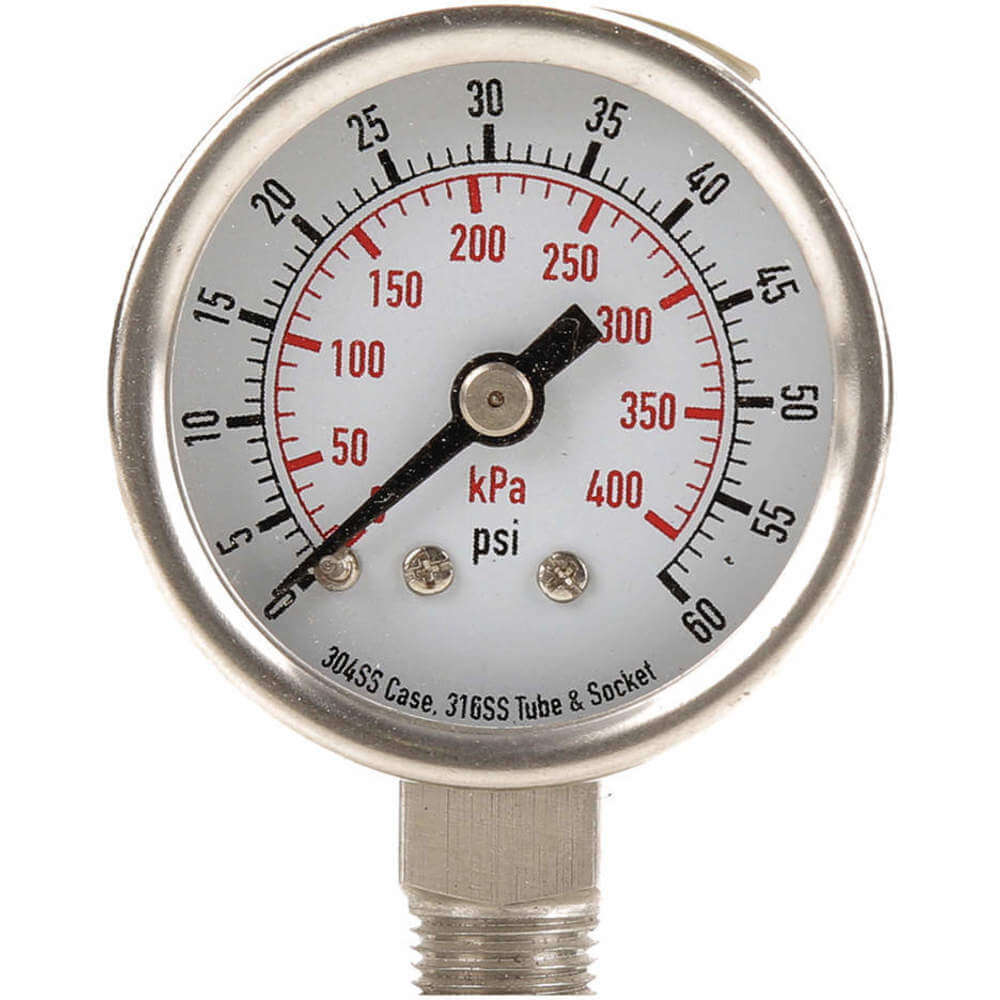

APPROVED VENDOR 4FMJ1 Pressure Gauge Test 1-1/2 In
Item: AD7NEWModel: 4FMJ1
7 In Stock
Ships within 2 days via
10.00% off
€41.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Application | Test and Measurement |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Case Color | Silver |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Lower |
| Dial Color | White |
| Dial Size | 1 1/2" |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Type | Test |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +150°F |
| Panel-mountable | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 0 psi to 60 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 1 |
| Primary Pressure Range | 0 psi to 60 psi |
| Primary Scale Minor Graduations | 1 |
| Primary Scale Units | Psi |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Ring Material | Crimped Stainless Steel |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 400 psi |
| Secondary Range | 0 kPa to 400 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | 316 Stainless Steel |
| Smallest Graduation | 1 psi |
| Socket Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.3 |
| HS code | 9026208000 |
| Country of Origin | CN |
