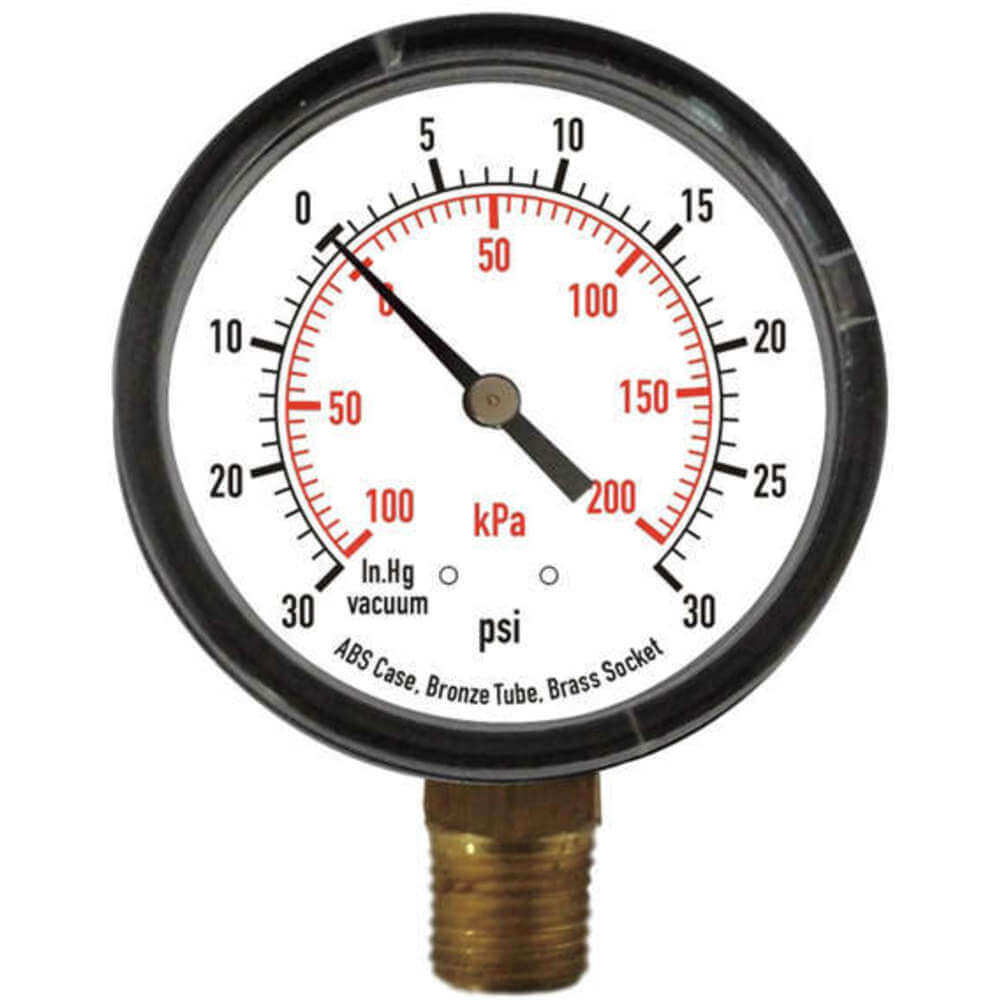

APPROVED VENDOR 4FLX4 Compound Gauge Test 3-1/2 In
Item: AD7NBBModel: 4FLX4
7 In Stock
Ships within 2 days via
10.00% off
€30.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compound Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Application | Test and Measurement |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Connection Location | Lower |
| Dial Color | White |
| Dial Size | 3 1/2" |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | General Purpose Case |
| Gauge Case Material | ABS Plastic |
| Gauge Type | Test |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +150°F |
| Panel-mountable | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 30 in. hg to 0 in. hg to 30 in. hg |
| Pressure Range Type | Compound |
| Primary Graduations | 1, 2 |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | In. Hg/psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Ring Material | Crimped Stainless Steel |
| Scale Type | Dual |
| Secondary Pressure Range | -100 to +200 |
| Secondary Range | -100 Kpa to 0 Kpa to 200 Kpa |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze |
| Socket Material | Brass |
| Tube Material | Bronze |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 3.81 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Gauge Type | Pressure Range Type | Process Connection Location | Nominal Dial Size | Application | Case Color | Socket Material | Case Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11A483 | Process Pressure Gauge | Vacuum | Bottom | 4 1/2" | Process Industries | Black | Brass | Aluminum | €183.15 | |
 |
11A494 | Process Pressure Gauge | Compound | Bottom | 4 1/2" | General Purpose | Black | Brass | Aluminum | €183.15 | |
 |
11A509 | Process Pressure Gauge | Compound | Bottom | 6" | General Purpose | Black | Brass | Aluminum | €205.32 | |
 |
4CFD3 | - | - | - | - | - | Blue | Brass | ABS | €12.17 | |
 |
4CFR3 | Commercial Pressure Gauge | Compound | Center Back | 2 1/2" | General Purpose | Silver | Stainless Steel | Stainless Steel | €83.37 | |
 |
4CFW6 | Ammonia, Refrigerant Gauge | Compound | Bottom | 2 1/2" | Ammonia Refrigerant | Black | Steel | Steel | €57.55 | |
 |
4CFW7 | Ammonia, Refrigerant Gauge | Compound | Bottom | 2 1/2" | Ammonia Refrigerant | Black | Steel | Steel | €53.25 |
