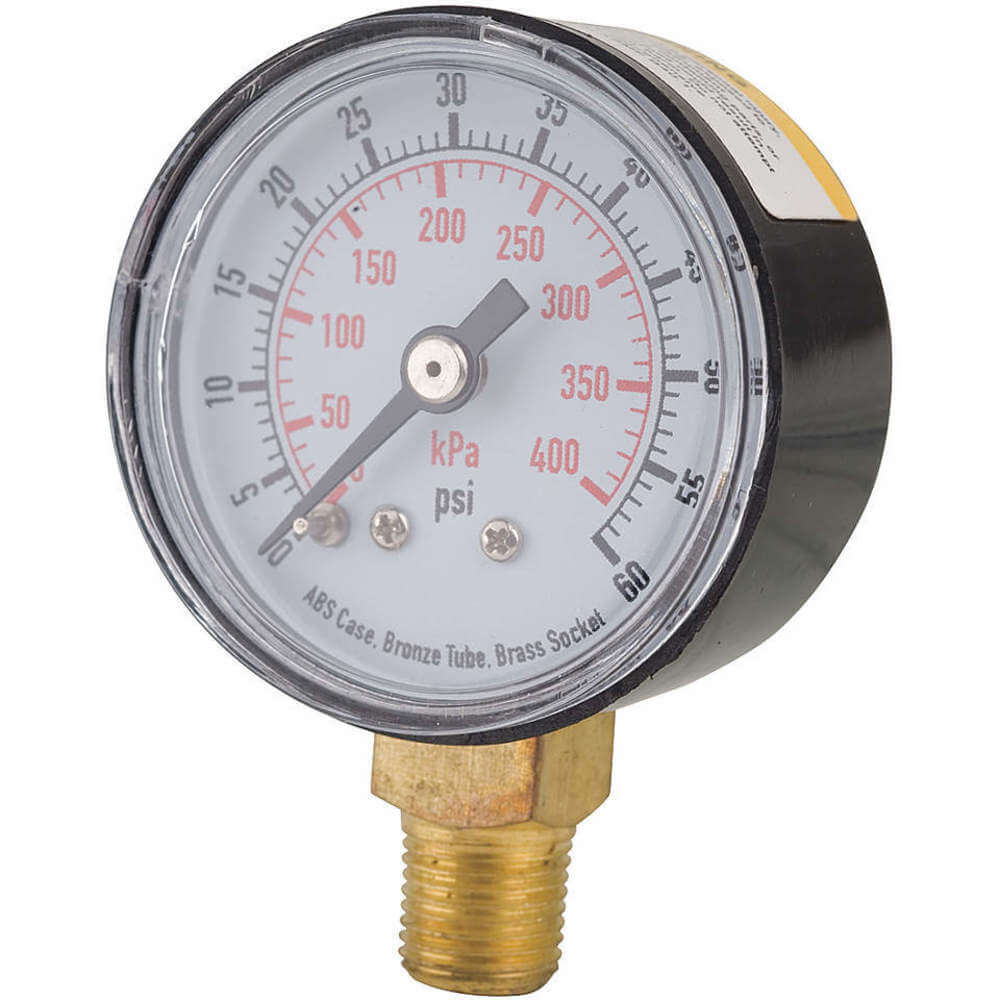

APPROVED VENDOR 4FLR1 Pressure Gauge Test 1-1/2 In
Item: AD7MYZModel: 4FLR1
7 In Stock
Ships within 2 days via
5.00% off
€15.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +150°F |
| Application | Test and Measurement |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Connection Location | LOWER |
| Dial Color | White |
| Dial Size | 1 1/2" |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | General Purpose Case |
| Gauge Case Liquid | None |
| Gauge Case Material | ABS Plastic |
| Gauge Type | Test |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Included Calibration Certificate | No |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material Gauge | Plastic |
| Liquid-filled Case | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non Sparking | No |
| Operating Temp. | -40°F to +150°F |
| Panel-mountable | No |
| Pressure | 0 psi to 60 psi |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Graduations | 1, 2 |
| Primary Pressure | 0 psi to 60 psi |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | PSI |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Ring Material | Crimped Stainless Steel |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 400 psi |
| Secondary Range | 0 kPa to 400 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze |
| Smallest Graduation | 1 psi |
| Socket Material | Brass |
| Tube Material | Bronze |
| Vibration Resistance | None |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.05 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lens Material | Socket Material | Case Color | Case Material | Sensor Material | Process Connection Size | Nominal Dial Size | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11A497 | Polycarbonate | Brass | Black | Aluminum | Bronze | 1/4" | 4 1/2" | Bottom | - | RFQ
|
 |
18C739 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C741 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C742 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C743 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C744 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C746 | Acrylic | - | Silver | Stainless Steel | - | - | - | - | €61.42 |
