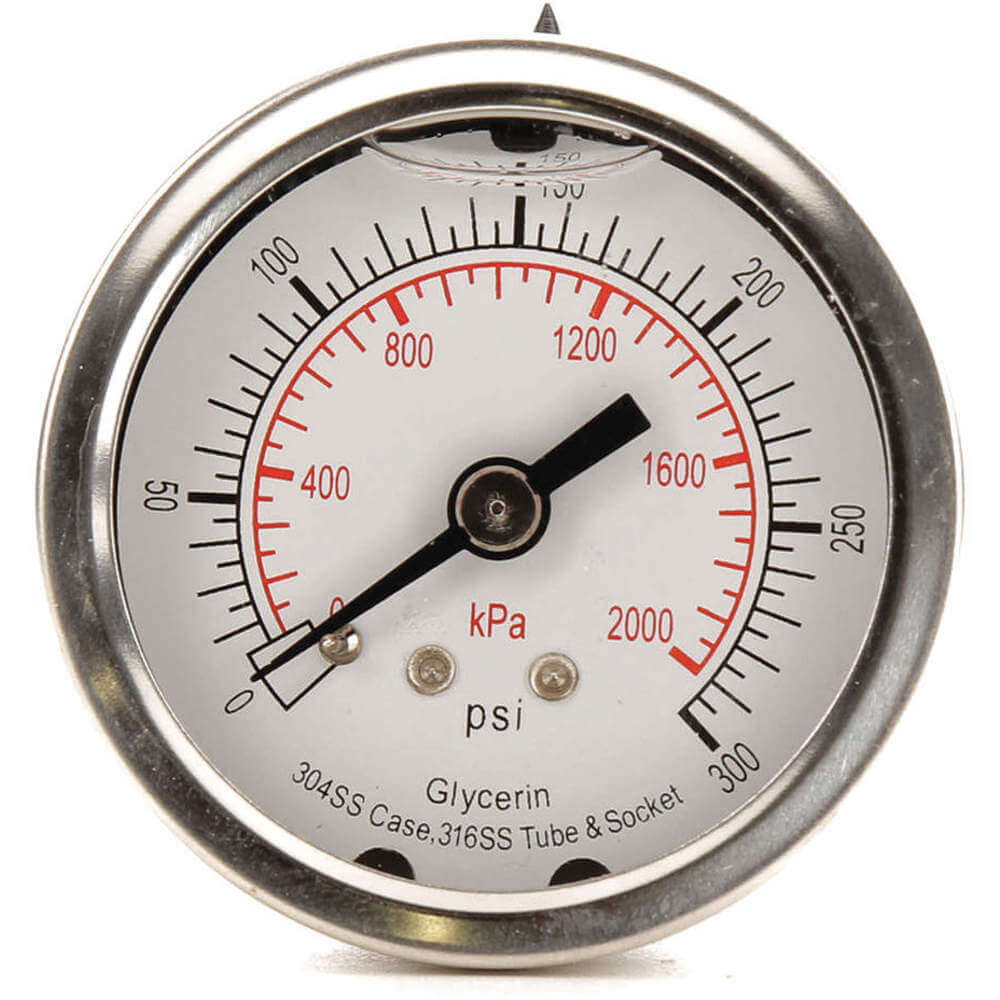

APPROVED VENDOR 4CFP4 Pressure Gauge Liquid Filled 2 In
Item: AD6XJYModel: 4CFP4
7 In Stock
Ships within 2 days via
5.00% off
€61.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +140°F |
| Application | General Purpose |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Case Color | Silver |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Back |
| Dial Color | White |
| Dial Size | 2" |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Filled With | Glycerin |
| Freeze Resistant Movement | No |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Type | Liquid Filled |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Included Calibration Certificate | No |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material Gauge | Plastic |
| Liquid-filled Case | Yes |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2" |
| Non Sparking | No |
| Operating Temp. | -40°F to +140°F |
| Panel-mountable | No |
| Pressure | 0 psi to 300 psi |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range (secondary) | 0 psi to 300 psi |
| Pressure Type | Pressure |
| Primary Graduations | 1, 2 |
| Primary Pressure | 0 psi to 300 psi |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Ring Material | Crimped Stainless Steel |
| Scale Type | Dual |
| Secondary Scale Units | Kpa |
| Sensor Material | 316 Stainless Steel |
| Smallest Graduation | 5 psi |
| Socket Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 5.59 |
| Ship width (cm) | 5.33 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lens Material | Socket Material | Case Color | Case Material | Sensor Material | Process Connection Size | Nominal Dial Size | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11A497 | Polycarbonate | Brass | Black | Aluminum | Bronze | 1/4" | 4 1/2" | Bottom | - | RFQ
|
 |
18C739 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C741 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C742 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C743 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C744 | Acrylic | Copper Alloy HPB59-1 | Silver | Stainless Steel | Copper Alloy | 1/4" | 4 1/2" | Bottom | €61.42 | |
 |
18C746 | Acrylic | - | Silver | Stainless Steel | - | - | - | - | €61.42 |
