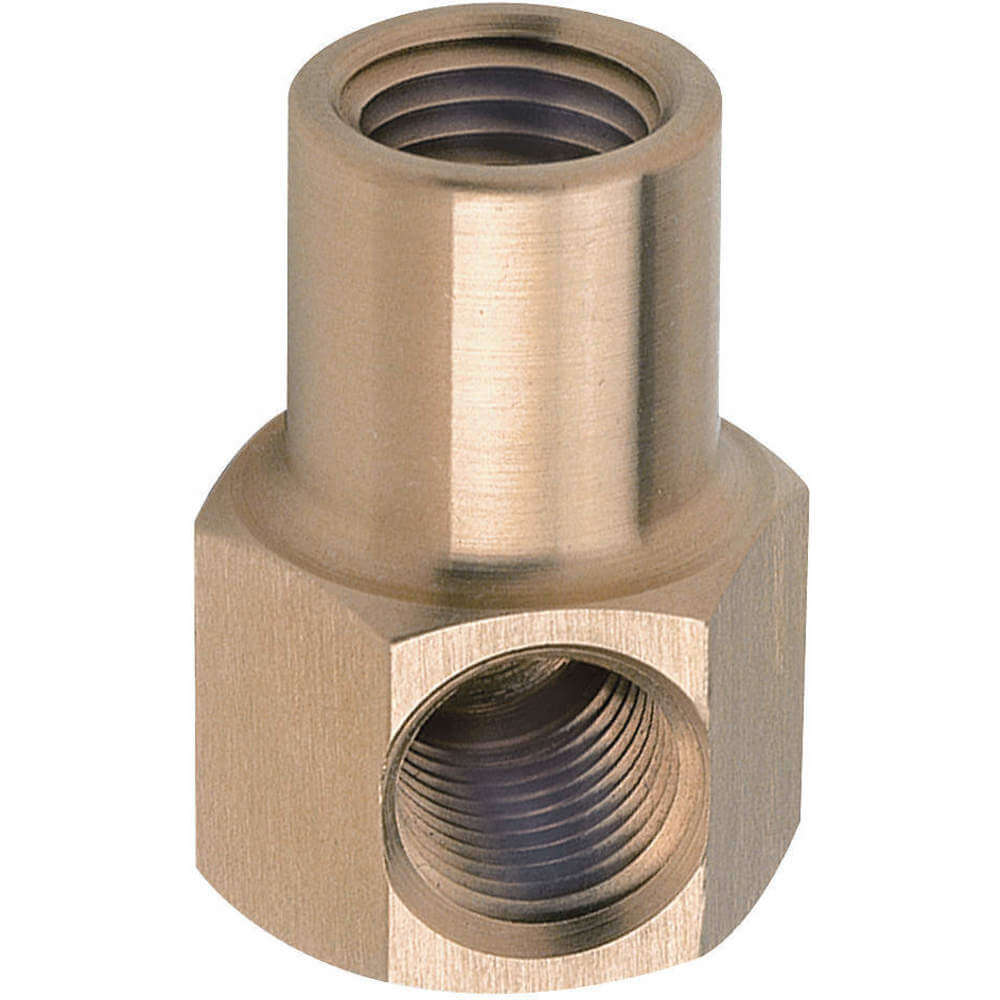

APPROVED VENDOR 4CCF8 Hex Elbow Brass 1/16 Inch Fnpt
Item: AD6WWKModel: 4CCF8
7 In Stock
Ships within 2 days via
10.00% off
€22.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Elbow |
| Application | Air, Hydraulic Fluid, Non-Potable Water |
| Basic Fitting Shape | Elbow |
| Body Material | Brass |
| Color | Brown |
| Connection Type | FNPT |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1/16" |
| Fitting Side A Outside Diameter | 9/16" |
| Fitting Side A Pipe Threading | 27 |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1/16" |
| Fitting Side B Outside Diameter | 9/16" |
| Fitting Side B Pipe Threading | 27 |
| Fitting Side B Type | NPT |
| Hex Size | 9/16" |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Length | 13/16" |
| Material Grade | Ca360 |
| Max. Pressure | 1000 psi |
| Maximum Operating Pressure | 1200 psi |
| Outside Dia. | 1" |
| Overall Length | 13/16" |
| Pipe Fitting Material | Brass |
| Pipe Size | 0.062" |
| Specific Fitting Shape | Hex Elbow |
| Standards | ASA |
| Temp. Range | -65°F to +250°F |
| Thread Size A | 1/16"-27 |
| Thread Size B | 1/16"-27 |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 7.62 |
| HS code | 7412200045 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Outside Dia. | Fitting Side A Nominal Pipe Size | Overall Length | Hex Size | Connection Type | Color | Basic Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4CCF9 | 1/8" | 1.266" | 1/8" | 1" | 3/4" | FNPT | Brown | Elbow | €23.11 | |
| 4CCG1 | 1/8" x 1/4" | 1.266" | 1/4" | 1 1/4" | 3/4" | FNPT | Brown | Elbow | €24.96 | |
| 4CCG2 | 1/4" | 1.391" | 1/4" | 1 3/8" | 7/8" | FNPT | Brown | Elbow | €24.19 | |
| 4CCG3 | 1/4" x 3/8" | 1.391" | 3/8" | 1 3/8" | 7/8" | FNPT | Brown | Elbow | €32.36 | |
| 4CCJ1 | 3/8" | 1.516" | 3/8" | 1 5/8" | 1" | FNPT | Brown | Elbow | €33.79 | |
| 4CCJ2 | 1/2" | 1.891" | 1/2" | 1 7/8" | - | FNPT | Brown | Elbow | €55.70 | |
| 4CCJ3 | 3/4" | 2.266" | 3/4" | 2 1/4" | - | FNPT | Brown | Elbow | €79.31 |
