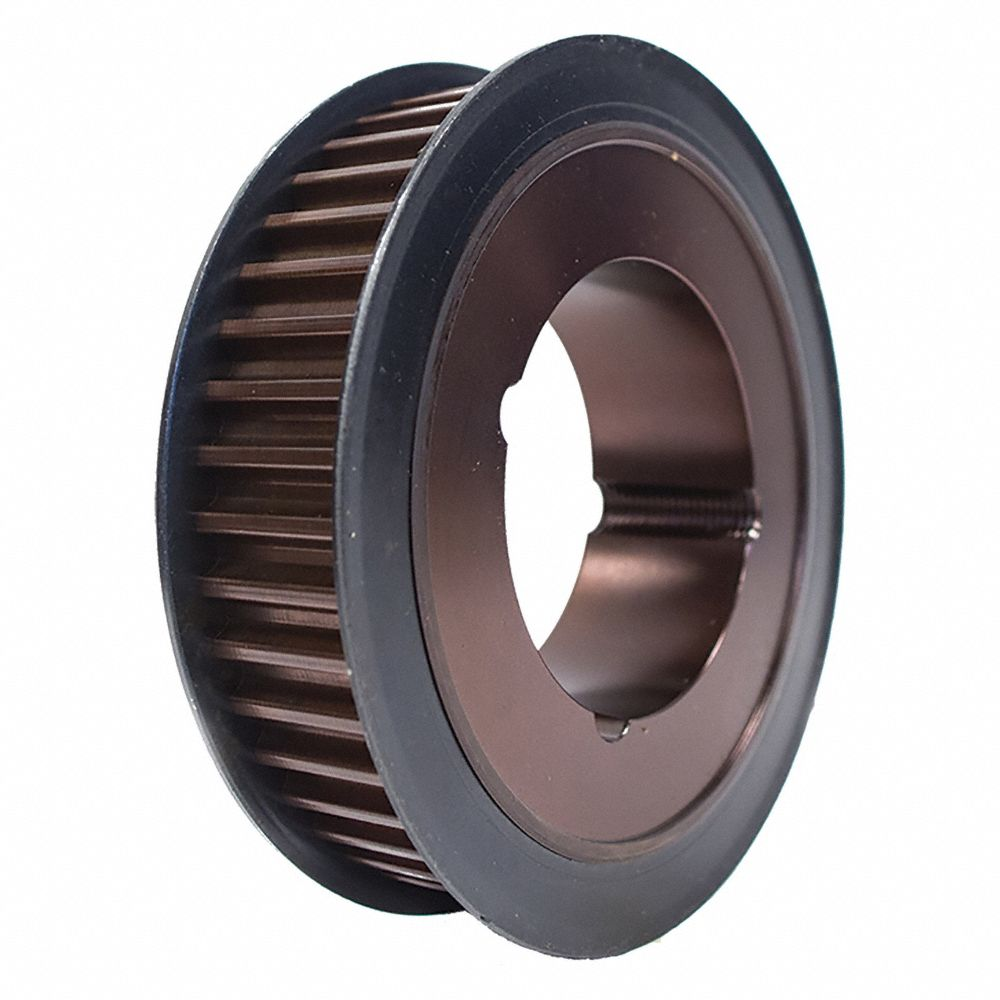

APPROVED VENDOR 4514MX373020 Timing Belt Pulley, 37 mm Belt Width, 45 Teeth
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€623.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Timing Belt |
| Bore Type | Taper Lock Bushing |
| Bushing Size | 3020 |
| Bushing Type | Taper Lock |
| Face Width | 1 3/4" |
| Feature | Built For High Torque, Low Speed Applications, Outperforms Industry Standards, Superb Flexibility |
| Finish | Black Oxide |
| Flange Type | With Flanges |
| For Belt Series | Poly Chain GT Carbon |
| For Belt Trade Size | Carbon |
| For Belt Width | 37 mm |
| For Use With | Poly Chain GT Carbon Belts |
| Material | Cast Iron |
| Material Fabrication | Cast |
| No. Of Flanges | 2 |
| No. Of Teeth | 45 |
| Outside Dia. | 8.395" |
| Pitch Dia. | 7.895" |
| Resistance Properties | Chemical Resistant, Cut Resistant, Oil Resistant, Wear Resistant |
| Thread Pitch | 14 mm |
| Width | 2 1/16" |
Shipping Info:
| Ship weight (kg) | 7.54 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | Face Width | Pitch | No. Of Teeth | For Belt Width | Flange Type | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
288MX121108 | Steel | 2.807" | 7/8" | - | 28 | 12 mm | With Flanges | - | €179.79 | |
 |
288MX211108 | Steel | 2.807" | 1.203" | - | 28 | 21 mm | With Flanges | - | €269.08 | |
 |
11214MX203525 | Cast Iron | 19.65" | 1.359" | 14 mm | 112 | 20 mm | No Flanges | 2 1/2" | €1,337.15 | |
|
11214MX373525 | Cast Iron | 19.65" | 2.063" | - | 112 | 37 mm | Flangeless | - | €1,727.93 | |
|
11214MX684030 | Cast Iron | 19.65" | 3.328" | 14 mm | 112 | 68 mm | No Flanges | 3 21/64" | €2,196.81 | |
 |
1128MX122012 | Cast Iron | 11.229" | 0.85" | - | 112 | 12 mm | Flangeless | - | €647.90 | |
 |
1128MX212517 | Cast Iron | 11.229" | 1.203" | 8 mm | 112 | 21 mm | No Flanges | 1 3/4" | €675.66 |
