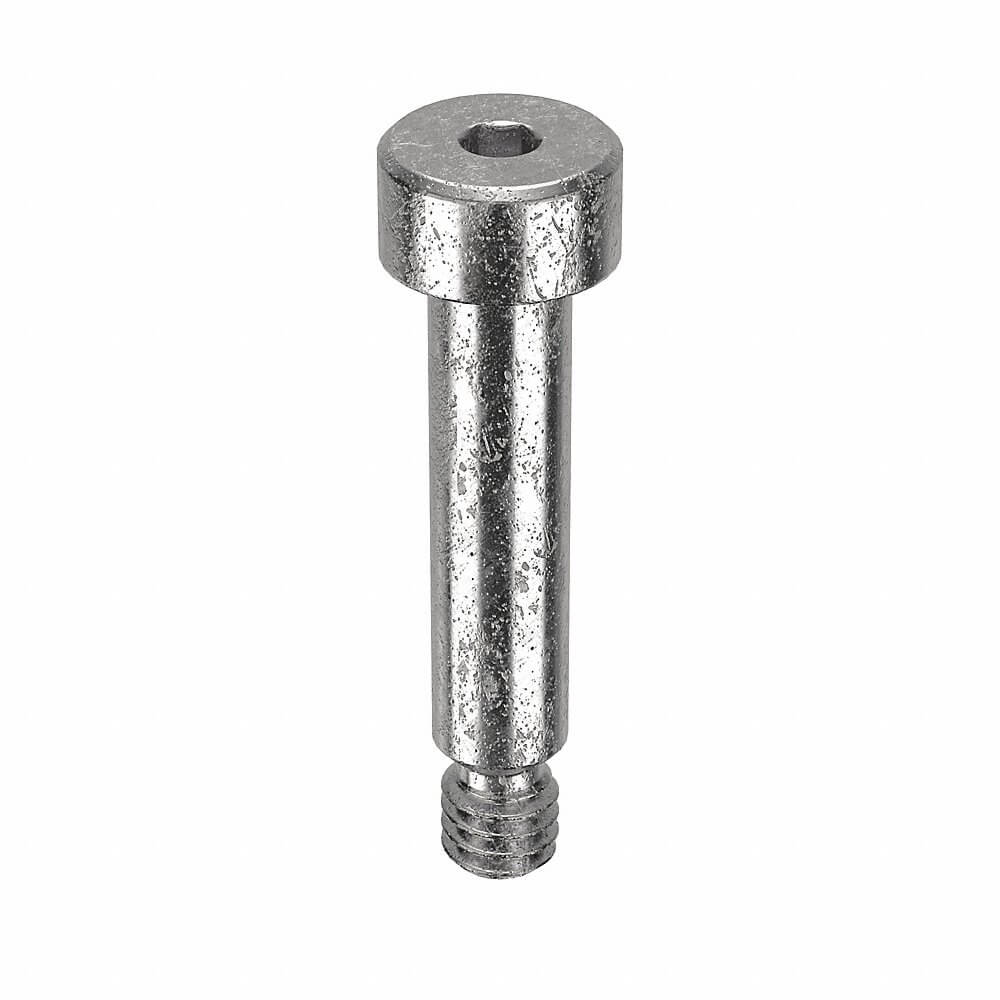

APPROVED VENDOR 4422 Shoulder Screw, 8-32 Thread Size, 3/4 In Shoulder Lg., 5/32 In Head Ht., Hex Socket
Item: AE9HVUModel: 4422Cross Ref: 6JY19
7 In Stock
Ships within 2 days via
5.00% off
€30.69 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Size | 3/32" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 5/16" |
| Head Height | 5/32" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 116000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Dia. | 3/16" |
| Shoulder Dia. Tolerance | 0.0015" to 0" |
| Shoulder Length | 3/4" |
| Shoulder Length Tolerance | 0" to 0.002" |
| System Of Measurement | Imperial |
| Tensile Strength | 116000 psi |
| Thread Fit | 2A |
| Thread Length | 3/16" |
| Thread Size | #8-32 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156010 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4410 | 1/4" | 1/8" | 1/8" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €25.51 | |
 |
PAT4411 | 1/4" | 1/8" | 3/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.31 | |
 |
PAT4412 | 1/4" | 1/8" | 1/4" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.97 | |
|
PAT4413 | 1/4" | 1/8" | 5/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €30.20 | |
 |
PAT4414 | 1/4" | 1/8" | 3/8" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €30.28 | |
|
PAT6906SS | 1/4" | 1/8" | 7/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €32.58 | |
 |
PAT6907SS | 1/4" | 1/8" | 1/2" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.61 |
