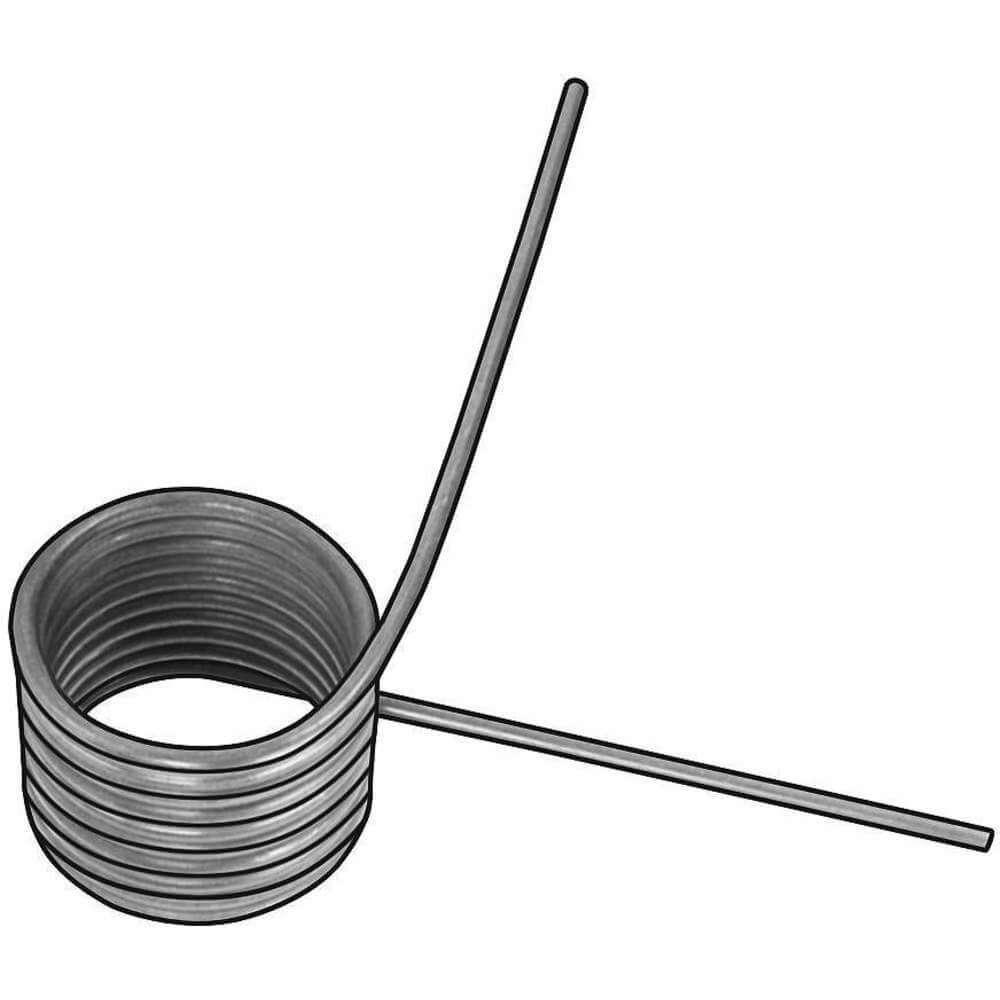

APPROVED VENDOR 3HPF2 Torsion Spring 270 Degree 0.184od
Item: AC9NEGModel: 3HPF2
7 In Stock
Ships within 2 days via
10.00% off
€7.84 /pkg. of 6
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Torsion Spring |
| Deflection Angle | 270° |
| Deflection Angle (deg.) | 270 |
| Finish | Plain |
| Material | Carbon Steel Music Wire |
| Max. Rod Outside Dia. | 0.109" |
| Number Of Coils | 10.75 |
| Spring Length @ Torque | 3/8" |
| Spring Length @ Torque | 0.375" |
| Torque @ 1/2 Leg Length | 0.234 lbs.-in. |
| Torque @ 1/2 Leg Length (in.-lbs.) | 0.234 |
| Wind Direction | Right Hand |
| Wire Dia. | 0.021" |
Shipping Info:
| Ship height (cm) | 0.76 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 5.08 |
| HS code | 7320205020 |
| Country of Origin | US |
Product Variants
| Model | Wind Direction | Material | Torque | Leg Length | Wire Dia. | Outside Dia. | Torque @ 1/2 Leg Length | Deflection Angle | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3HPF1 | Right Hand | Music Wire | 0.0005 lbs.-in. | - | 0.017" | 0.259" | 0.125 lbs.-in. | 270° | 6 | €8.71 | |
| 3HPF3 | Right Hand | Music Wire | 0.0012 lbs.-in. | - | 0.023" | - | 0.33 lbs.-in. | 270° | 6 | €8.71 | |
| 3HPF4 | Right Hand | Music Wire | 0.0047 lbs.-in. | 1 1/4" | 0.038" | 0.353" | 1.275 lbs.-in. | 270° | 6 | €8.71 | |
| 3HPF5 | Right Hand | Music Wire | 0.008 lbs.-in. | 2" | - | - | 2.143 lbs.-in. | 270° | 6 | €8.71 | |
| 3HPF6 | Right Hand | Music Wire | 0.0278 lbs.-in. | 2" | - | - | 7.5 lbs.-in. | 270° | 6 | €12.27 | |
| 3HPJ6 | Left Hand | Music Wire | 0.0005 lbs.-in. | - | 0.017" | 0.259" | 0.125 lbs.-in. | 270° | 6 | €8.71 | |
| 3HPJ7 | Left Hand | Music Wire | 0.0009 lbs.-in. | - | 0.021" | 0.184" | 0.234 lbs.-in. | 270° | 6 | €8.71 |
