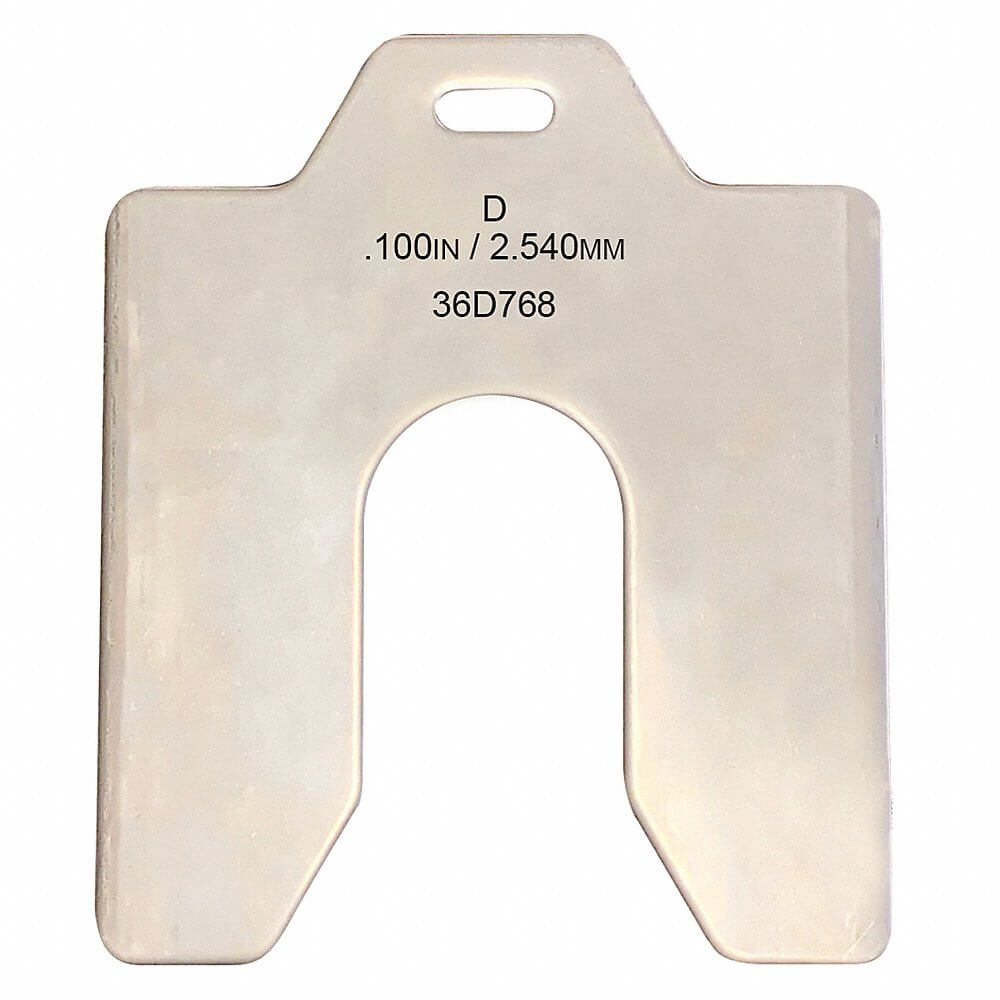

APPROVED VENDOR 36D768 Slotted Shim 5 x 5 In x 0.100in
Item: AC6TVDModel: 36D768
7 In Stock
Ships within 2 days via
10.00% off
€104.59 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Slotted Shim Pack |
| Application | Alignment, Leveling, Used For Spacing |
| Color | Silver |
| Finish | Plain |
| Grade | Grade 302/304 |
| Length | 5" |
| Length Tolerance | -0.015" to +0.015" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Bolt Size | 1 1/2" |
| Minimum Bolt Size | 1" |
| Product Type | Slotted Shims |
| Resistance Properties | Corrosion Resistant, Rust Resistant |
| Rockwell Hardness | Rockwell B80 To B90 |
| Shim Length | 5" |
| Shim Width | 5" |
| Slot Depth | 3 5/8" |
| Slot Width | 1.625" |
| Slotted Shim Type | Tabbed |
| Tab Height | 1-3/8" |
| Tab Height | 1 3/8" |
| Tab Width | 3" |
| Temper | O60 |
| Tensile Strength | 75000 psi |
| Thickness | 0.1" |
| Thickness Tolerance | -0.002" to +0.002" |
| Trade Size | D |
| Type | With Tab |
| Width | 5" |
| Width Tolerance | -0.015" to +0.015" |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 13.72 |
| HS code | 7326908588 |
| Country of Origin | US |
Product Variants
| Product | Model | Slot Width | Temper | Thickness | Slot Depth | Tab Height | Tab Width | Rockwell Hardness | Tensile Strength | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
36D718 | 5/8" | H18 | 0.001" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €61.82 | |
 |
36D719 | 5/8" | H18 | 0.002" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €43.95 | |
 |
36D720 | 5/8" | H18 | 0.003" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €43.82 | |
 |
36D721 | 5/8" | H18 | 0.004" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €43.60 | |
 |
36D722 | 5/8" | H18 | 0.005" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €44.75 | |
 |
36D723 | 5/8" | H18 | 0.01" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €44.84 | |
 |
36D724 | 5/8" | H18 | 0.015" | 1 9/32" | 5/8" | 1 1/2" | Rockwell C35 To C45 | 75000 psi | 20 | €45.08 |
