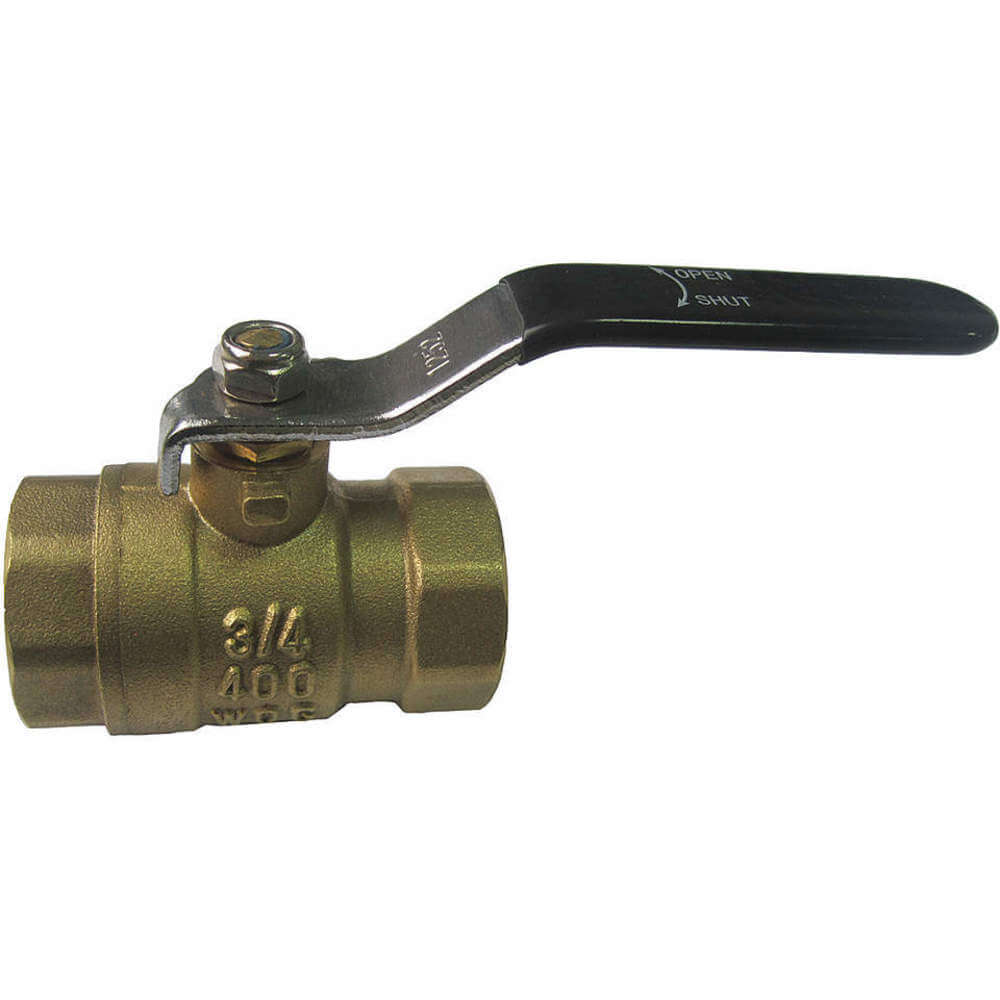

APPROVED VENDOR 32J030 Brass Ball Valve Inline Fnpt 3/4 In
Item: AC6AHRModel: 32J030
7 In Stock
Ships within 2 days via
10.00% off
€27.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 25.29 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Air, Oil, Steam, Water |
| Handle | Lever |
| Handle Color | Blue |
| Handle Height | 1.82" |
| Handle Length | 3.46" |
| Handle Material | PVC, Steel |
| Handle Type | Lever |
| Manufacturer Warranty | 3 yrs. |
| Max. Pressure | 400 psi |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temperature Range | -20°F to +356°F |
| Nominal Valve Size | 3/4" |
| Number Of Pieces | 2 |
| Overall Length | 2.25" |
| Pipe Size | 3/4" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +356°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Brass |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 8 |
| Ship length (cm) | 16 |
| Ship width (cm) | 11.99 |
| HS code | 8481801085 |
| Country of Origin | CN |
Product Variants
| Product | Model | Handle Material | Max. Pressure | Seal Material | Handle | Overall Length | Stem Material | Ball Material | Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PYT2 | PVC, Steel | 600 psi | PTFE | Lever | 7.52" | Brass | - | Full | €725.77 | |
 |
107-816-LH | PVC, Steel | 200 psi | PTFE | Locking Lever | 5.86" | Brass | - | Full | €118.14 | |
|
107-817-LH | PVC, Steel | 200 psi | PTFE | Locking Lever | 7.34" | Brass | - | Full | €147.05 | |
|
107-818-LH | PVC, Steel | 200 psi | PTFE | Locking Lever | 7.64" | Brass | - | Full | €184.83 | |
 |
1PZA7 | Nylon | 450 psi WOG | PTFE | Handle Set (Lever/Tee/Wedge) | 1.57" | Brass | - | Reduced | €18.54 | |
 |
1PZA8 | Nylon | 450 psi WOG | PTFE | Handle Set (Lever/Tee/Wedge) | 1.69" | Brass | - | Reduced | €22.09 | |
|
1PZA9 | Nylon | 450 psi WOG | PTFE | Handle Set (Lever/Tee/Wedge) | 1.73" | Brass | - | Reduced | €22.09 |
