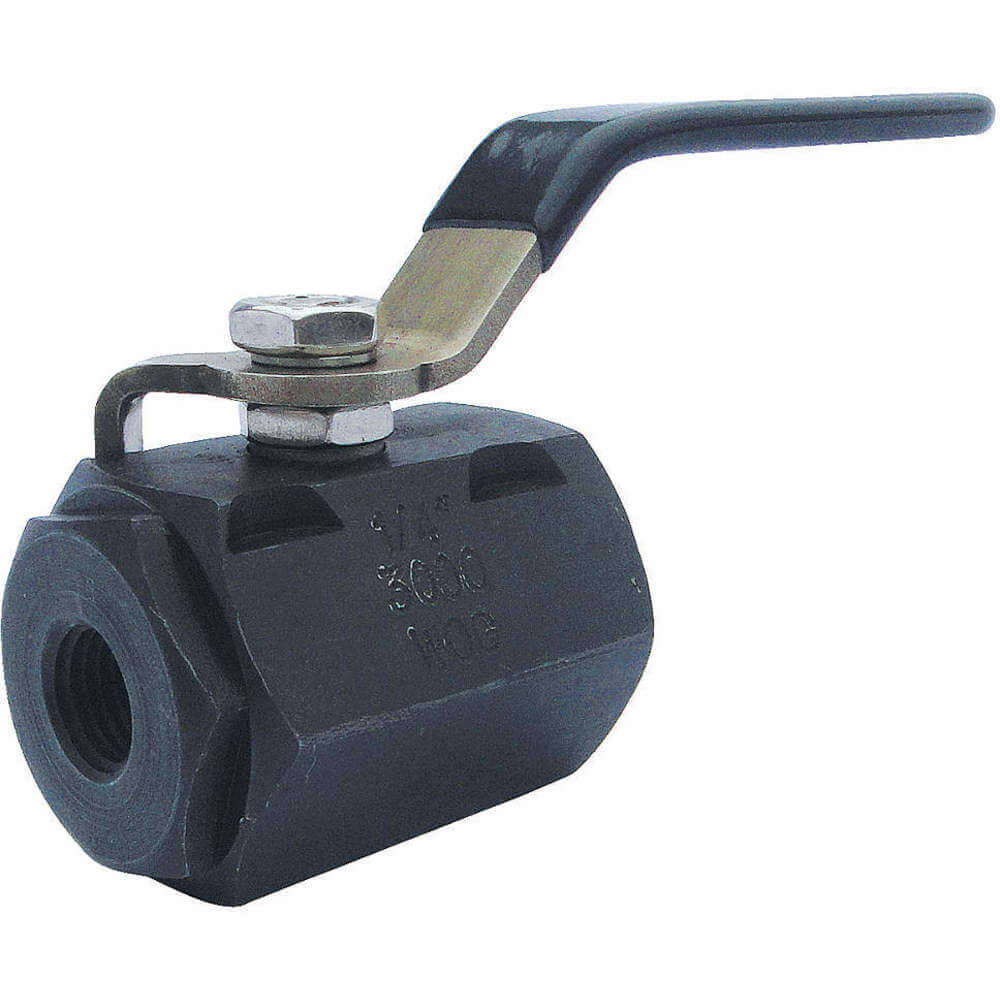

APPROVED VENDOR 32H962 Carbon Steel Ball Valve Inline Fnpt 1/2 In
Item: AC6AEUModel: 32H962
7 In Stock
Ships within 2 days via
10.00% off
€84.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Grade | Grade 304 , Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Style | Inline |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 18.55 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Air, Oil, Steam, Water |
| Handle | Lever |
| Handle Color | Blue |
| Handle Height | 2.1" |
| Handle Length | 5" |
| Handle Material | PVC, Steel |
| Handle Type | Lever |
| Manufacturer Warranty | 3 yrs. |
| Max. Pressure | 3000 psi WOG |
| Max. Pressure (cwp) | 3000 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp Range | -20°F to +425°F |
| Nominal Valve Size | 1/2" |
| Number Of Pieces | 2 |
| Overall Length | 2.72" |
| Pipe Size | 1/2" |
| Port | Full |
| Pressure For Water | 3000 psi WOG |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Stem Material | Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +425°F |
| Vacuum Service Rating | 29.9 in. hg |
| Valve Body Color | Black |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.37 |
| HS code | 8481803070 |
| Country of Origin | CN |
Product Variants
| Model | Max. Pressure | Seat Material | Seal Material | Stem Material | Handle | Handle Material | Overall Length | Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 32H960 | 3000 psi WOG | RPTFE | RPTFE | Steel | Lever | PVC, Steel | 2" | Full | €52.88 | |
| 32H961 | 3000 psi WOG | RPTFE | RPTFE | Steel | Lever | PVC, Steel | 2" | Full | €52.88 | |
| 32H963 | 3000 psi WOG | RPTFE | RPTFE | Steel | Lever | PVC, Steel | 3.49" | Full | €128.61 | |
| 32H964 | 3000 psi WOG | RPTFE | RPTFE | Steel | Lever | PVC, Steel | 3.94" | Full | €185.43 | |
| 08Q241N06014S4 | 2000 psi WOG | PTFE | PTFE | Stainless Steel | Locking Lever | Grade 304 Stainless Steel | 1.69" | Full | €37.32 | |
| 08Q241N06038S4 | 2000 psi WOG | PTFE | PTFE | Stainless Steel | Locking Lever | Grade 304 Stainless Steel | 1.77" | Full | €38.71 | |
| 08Q011N06012S4 | 2000 psi WOG | PTFE | PTFE | Stainless Steel | - | - | - | Standard | €39.00 |
