APPROVED VENDOR 2WJ19 Elbow Street 45 Degree Galvanised 4in
Item: AC3UXBModel: 2WJ19
7 In Stock
Ships within 2 days via
10.00% off
€153.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Street Elbow, 45 Degrees |
| Basic Fitting Shape | Elbow |
| Body Material | Malleable Iron |
| Class | Class 150 |
| Color | White |
| Connection Type | FNPT x MNPT |
| Finish | Galvanized |
| Finish/coating | Galvanized |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 4" |
| Fitting Side A Pipe Threading | 8 |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Male |
| Fitting Side B Nominal Pipe Size | 4" |
| Fitting Side B Pipe Threading | 8 |
| Fitting Side B Type | NPT |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 300 psi @ 150°F WOG |
| Pipe Fitting Material | Malleable Iron |
| Pipe Size | 4" |
| Specific Fitting Angle | 45° |
| Specific Fitting Shape | Street Elbow |
| Standards | Asme B16.3, Astm A197, Fm Approved, Iapmo, Ul Listed |
Shipping Info:
| Ship weight (kg) | 3.73 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
| HS code | 7307199060 |
| Country of Origin | CN |
Product Variants
| Product | Model | Class | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Fitting Side B Pipe Threading | Fitting Side A Pipe Threading | Basic Fitting Shape | Connection Type | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

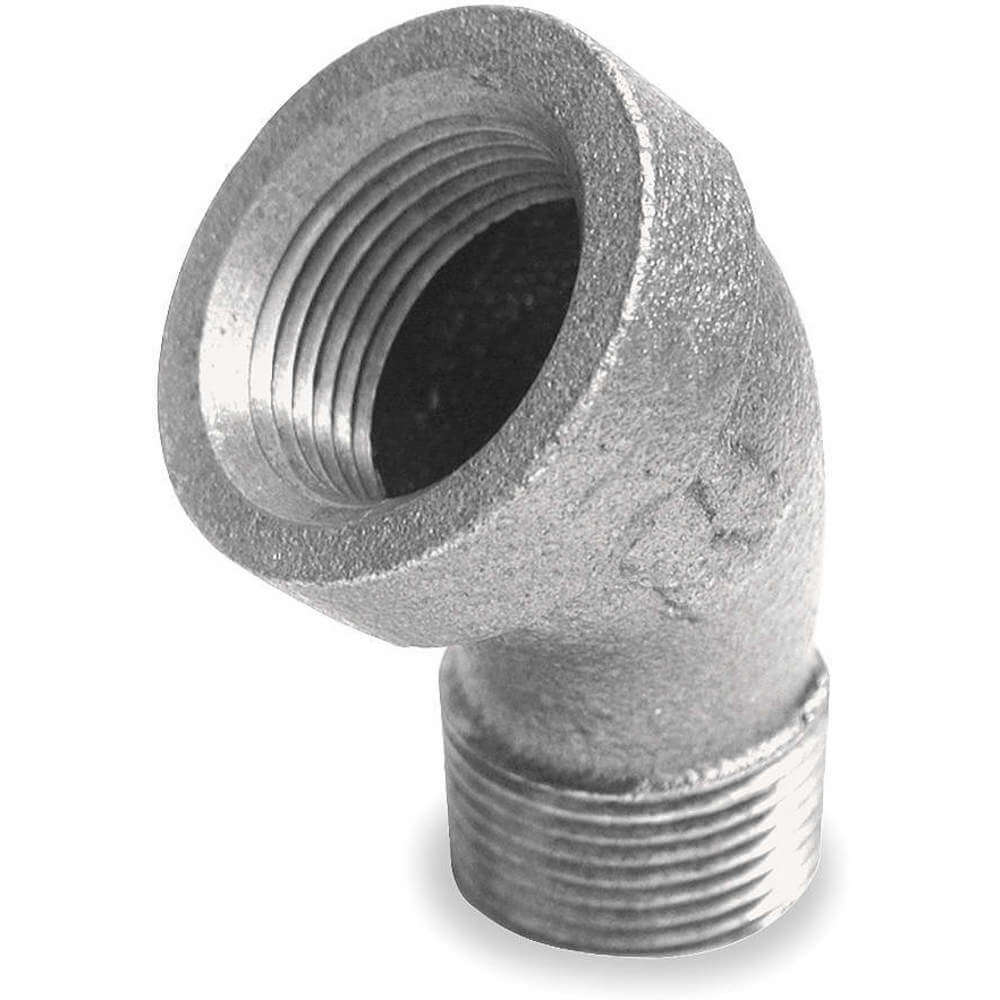

1XKU9 | Class 300 | 1" | 1" | 11.5 | 11 1/2" | Elbow | FNPT x MNPT | Malleable Iron | €30.53 | |
|
2WJ18 | Class 150 | 3" | 3" | 8 | 8 | Elbow | FNPT x MNPT | Malleable Iron | €114.18 | |
 |

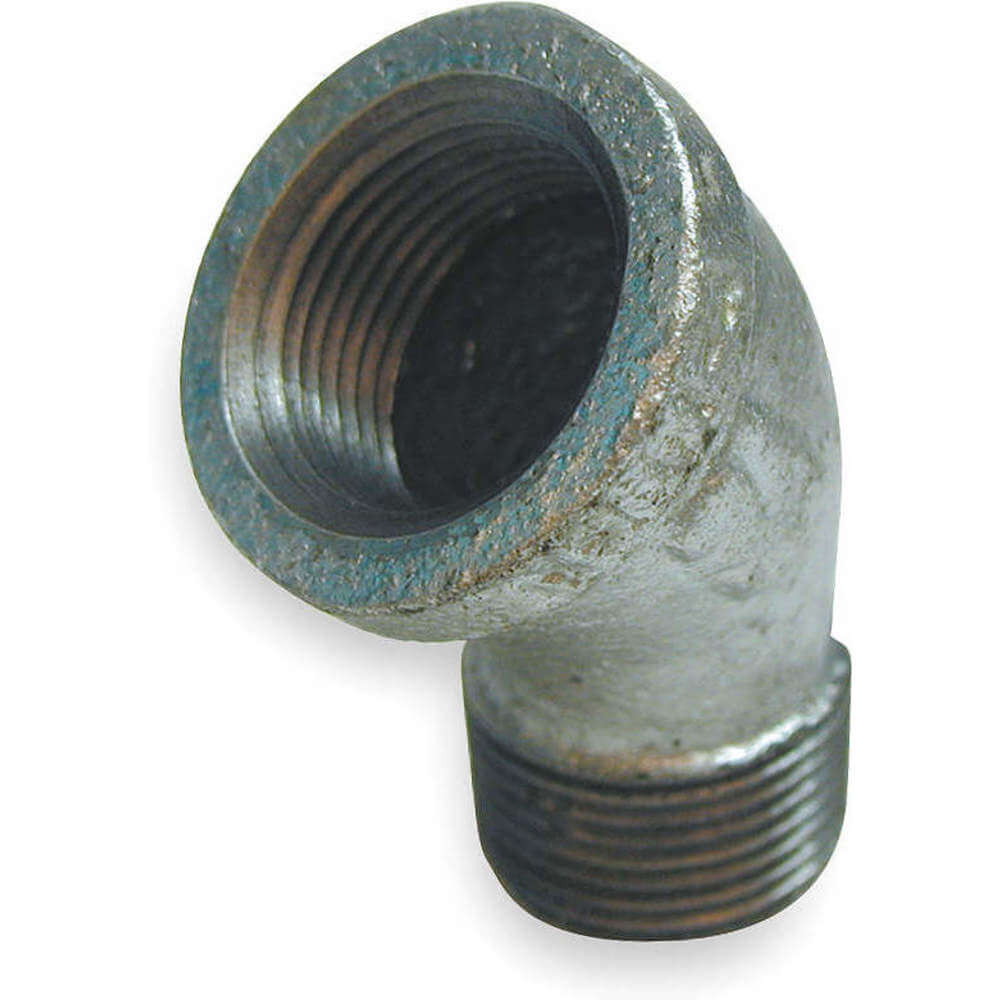

5P839 | Class 150 | 1/2" | 1/2" | 14 | 14 | Elbow | FNPT x MNPT | Malleable Iron | €5.83 | |
|
5P840 | Class 150 | 3/4" | 3/4" | 14 | 14 | Elbow | FNPT x MNPT | Malleable Iron | €11.22 | |
|
6KJ06 | Class 150 | 1" | 1" | 11.5 | 11 1/2" | Elbow | FNPT x MNPT | Malleable Iron | €11.81 |
