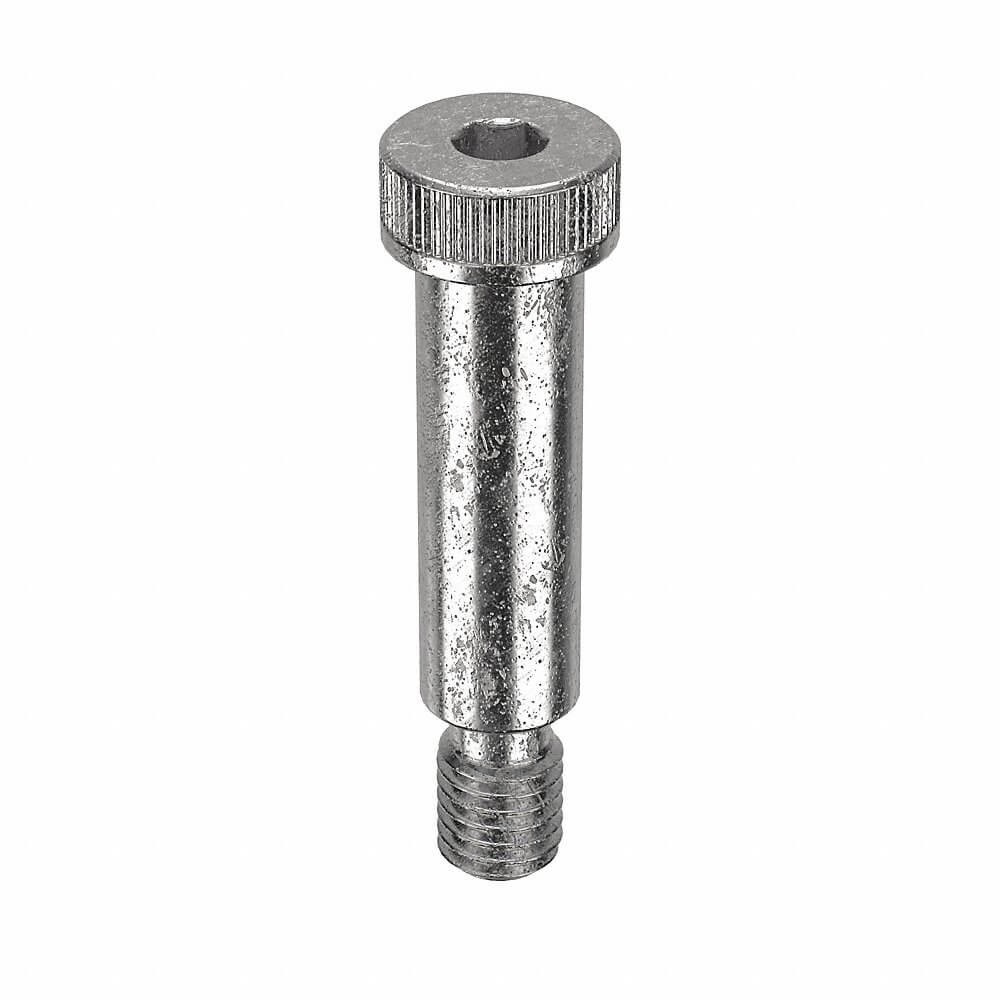

APPROVED VENDOR 2DMT2 Shoulder Screw, 1/2 In - 13 Thread Size, 2 In Shoulder Lg., 3/8 In Head Ht., 7/8 In Head Dia., Gr. 18-8
Item: AB9KAZModel: 2DMT2
7 In Stock
Ships within 2 days via
5.00% off
€116.37 /pkg. of 2
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 2 |
| Drive Size | 5/16" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 7/8" |
| Head Height | 3/8" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 5/8" |
| Shoulder Dia. Tolerance | 0.002" to 0.004" |
| Shoulder Length | 2" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 70000 psi |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Thread Size | 1/2"-13 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 4.57 |
| HS code | 7318158030 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Drive Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4410 | #4-40 | 1/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €25.51 | |
 |
PAT4411 | #4-40 | 3/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €29.31 | |
 |
PAT4412 | #4-40 | 1/4" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €29.97 | |
|
PAT4413 | #4-40 | 5/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €30.20 | |
 |
PAT4414 | #4-40 | 3/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €30.28 | |
|
PAT6906SS | #4-40 | 7/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €32.58 | |
 |
PAT6907SS | #4-40 | 1/2" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 5 | €29.61 |
