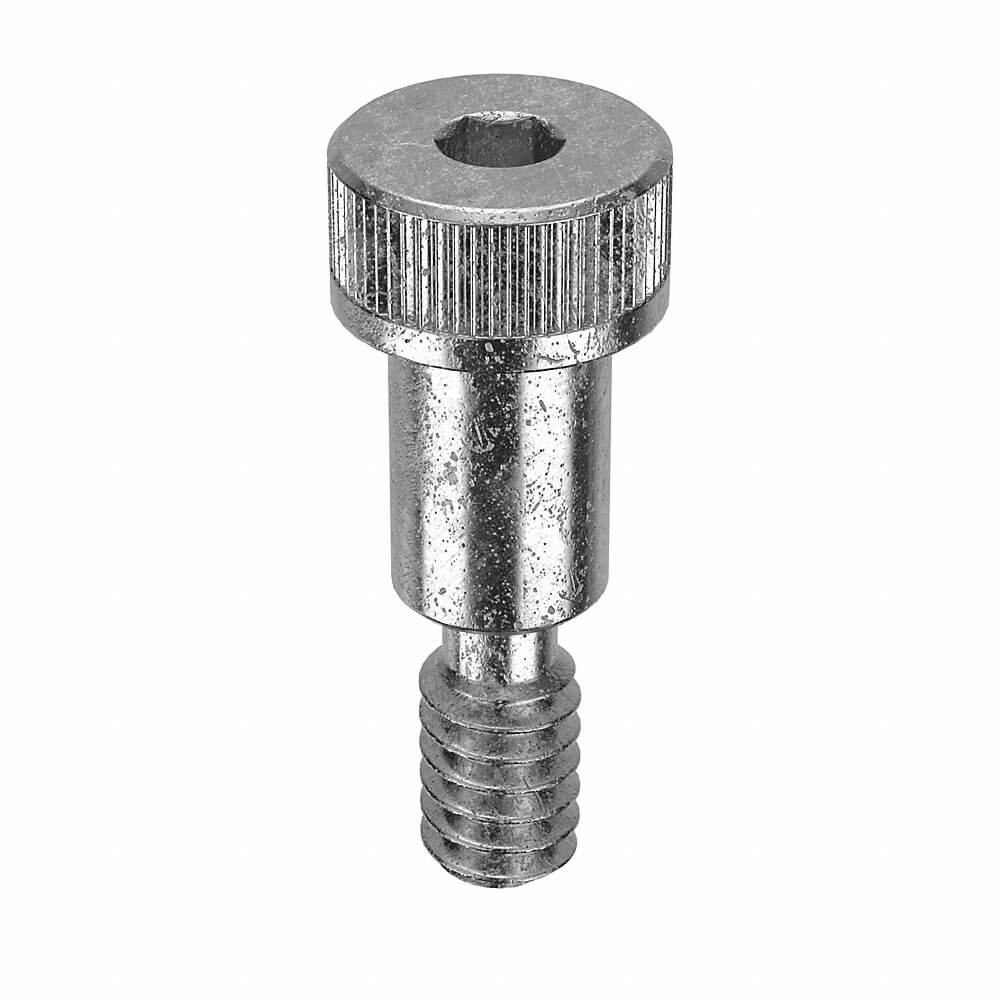

APPROVED VENDOR 2DMF2 Shoulder Screw, 10-24 Thread Size, 3/8 In Shoulder Lg., 3/16 In Head Ht., Std, SS
Item: AB9JXLModel: 2DMF2
7 In Stock
Ships within 2 days via
10.00% off
€22.02 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 4 |
| Drive Size | 1/8" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 1/4" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Shoulder Length | 3/8" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 70000 psi |
| Thread Fit | 3A |
| Thread Length | 3/8" |
| Thread Size | #10-24 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.52 |
| HS code | 7318156010 |
| Country of Origin | US |
