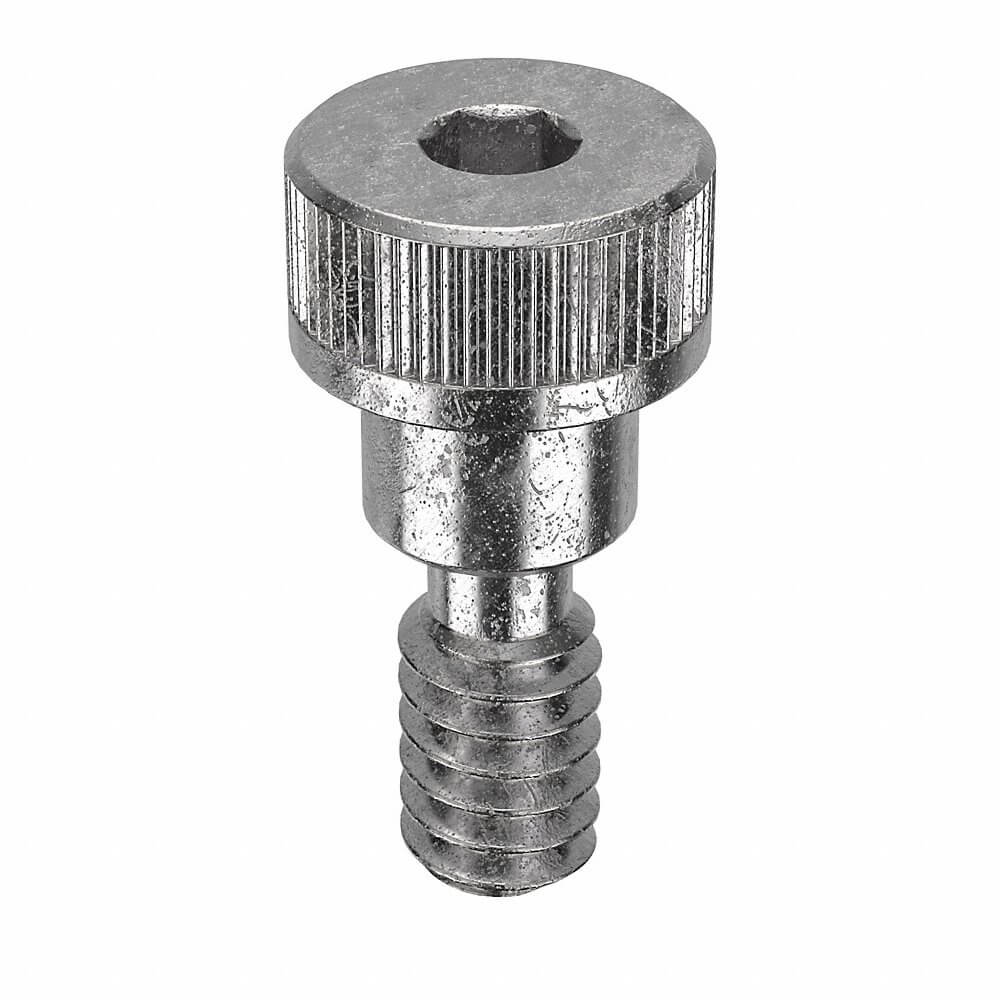

APPROVED VENDOR 2DME9 Shoulder Screw, 10-24 Thread Size, 3/16 In Shoulder Lg., 3/16 In Head Ht., Std
Item: AB9JXJModel: 2DME9
7 In Stock
Ships within 2 days via
5.00% off
€30.54 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 4 |
| Drive Size | 1/8" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 1/4" |
| Shoulder Dia. Tolerance | 0.002" to 0.004" |
| Shoulder Length | 3/16" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 70000 psi |
| Thread Fit | 3A |
| Thread Length | 3/8" |
| Thread Size | #10-24 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.78 |
| HS code | 7318156010 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4410 | 1/4" | 1/8" | 1/8" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €23.81 | |
 |
PAT4411 | 1/4" | 1/8" | 3/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €27.36 | |
 |
PAT4412 | 1/4" | 1/8" | 1/4" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €27.97 | |
|
PAT4413 | 1/4" | 1/8" | 5/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €28.19 | |
 |
PAT4414 | 1/4" | 1/8" | 3/8" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €28.26 | |
|
PAT6906SS | 1/4" | 1/8" | 7/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €30.41 | |
 |
PAT6907SS | 1/4" | 1/8" | 1/2" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €27.64 |
