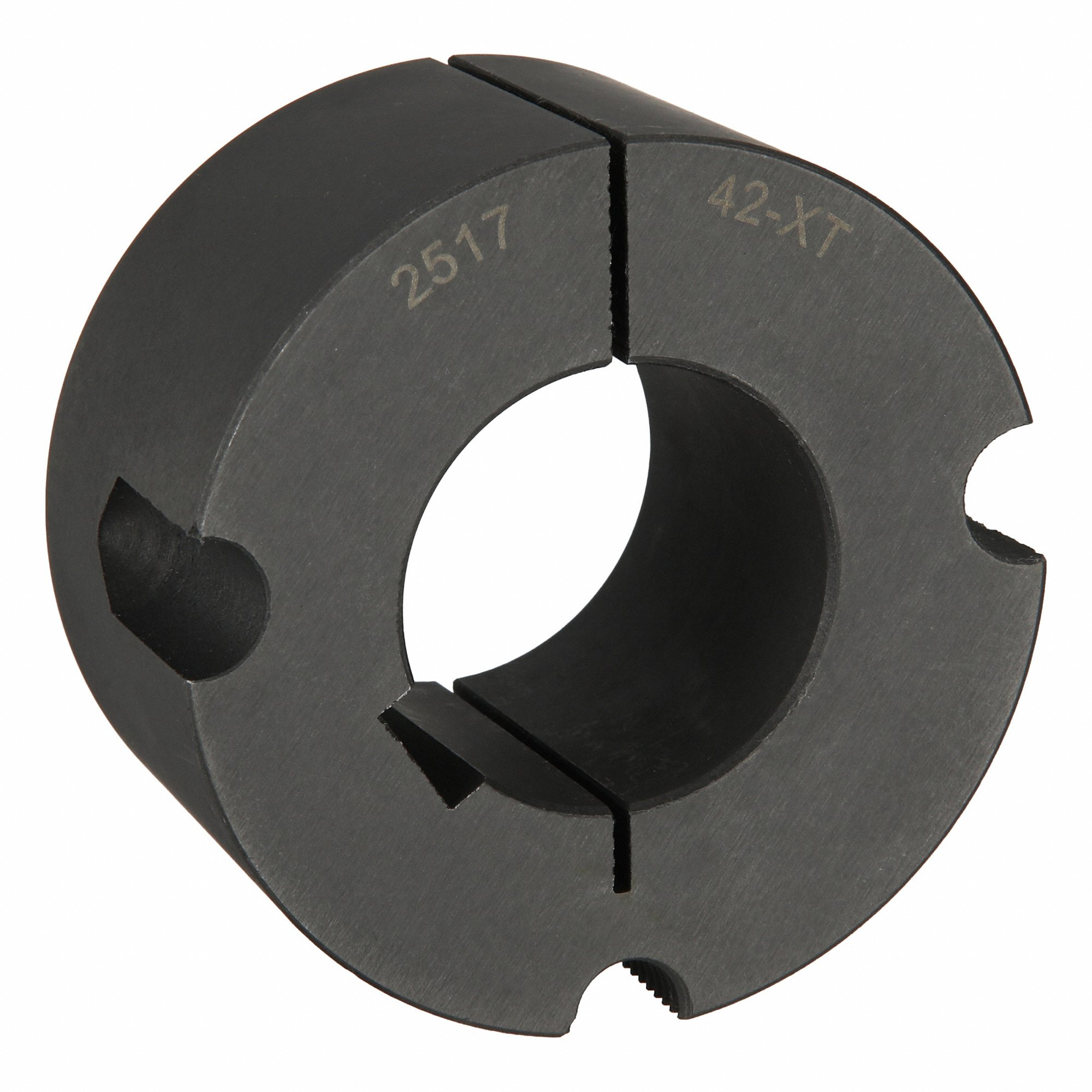

APPROVED VENDOR 2517X42MM Taper Lock Bushing, 42 mm Bore Dia, 1.75 Inch Overall Length, 3.375 Inch Overall Dia
Item: EA4DPKModel: 2517X42MMCross Ref: 813A30
7 In Stock
Ships within 2 days via
5.00% off
€90.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Lock Bushing |
| Bolt Circle Dia. | 3 1/4" , 3.25" |
| Bore Bushing Series | 2517, 2517 Series |
| Bore Dia. | 42 mm |
| Bore System Of Measurement | Metric |
| Bushing Type | Taper Lock |
| Flange Type | Flangeless |
| For Shaft Type | Keyed |
| Includes | (2) Set Screws |
| Keyway Depth | 3.5 mm |
| Keyway Width | 12 mm |
| Length | 1 3/4" |
| Material | Steel |
| Max. Torque | 11300 lbs.-in. |
| Overall Dia. | 3 3/8" , 3.375" |
| Overall Length | 1 3/4" |
| System Of Measurement | Metric |
| Taper | 8° |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 5.08 |
| Country of Origin | CN |
Product Variants
| Product | Model | Bolt Circle Dia. | Bore Dia. | Material | Overall Dia. | Max. Torque | Bore Bushing Series | Bore System Of Measurement | Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1210 25MM | 1 3/4" | 25 mm | Cast Iron | - | - | - | - | - | €23.68 | |
 |
2012 2.1/8 | 2 5/8" | 2 1/8" | Cast Iron | - | - | - | - | - | €33.59 | RFQ
|
|
1108 19MM | 1 29/64" | 19 mm | Cast Iron | - | - | - | - | - | €23.26 | |
|
4030 3.13/16 | 5.54" | 3 13/16" | Cast Iron | - | - | - | - | - | €235.11 | |
|
1008 19MM | 1 21/64" | 19 mm | Cast Iron | - | - | - | - | - | €21.44 | |
 |
1008 .11/16 | 1.33" | 11/16" | Steel | 1.375" | 1200 lbs.-in. | 1008 Series | Inch | (2) Set Screws | - | RFQ
|
|
1108 .13/16 | 1.453" | 0.812" | Steel | 1.5" | 1300 lbs.-in. | 1108 Series | Inch | (2) Set Screws | €44.65 |
