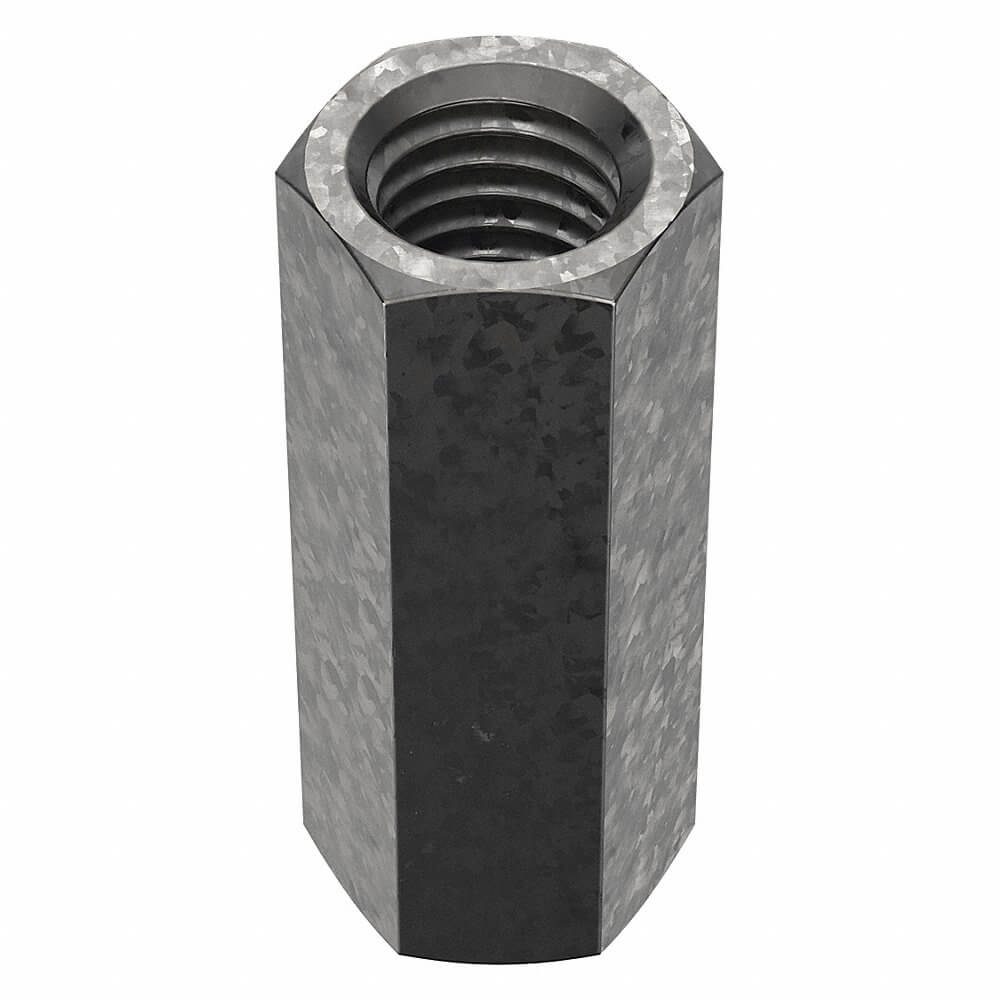

APPROVED VENDOR 250290BG Coupling Nut, 5/8 In - 11 Thread Size, Steel, 13/16 In Wd., 2 1/8 In Lg., Gr. 2, Right Hand
Item: AA9XXUModel: 250290BGCross Ref: 1JB51
7 In Stock
Ships within 2 days via
5.00% off
€31.37 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Coupling Nut |
| Dimensional Standards | ASME B18.2.2, ROHS COMPLIANT |
| Finish | Hot Dip Galvanized |
| Grade | Grade 2 |
| Hex Width | 13/16" |
| Length | 2 1/8" |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Material Quality Standards | Sae J995 |
| Min. Yield (psi) | 40,000 |
| Nut Type | Coupling Nut - Tapped Oversized |
| Overall Length | 2 1/8" |
| System Of Measurement | Imperial |
| Tensile Strength | 50000 psi |
| Thread Direction | Right Hand |
| Thread Size | 5/8"-11 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Coupling |
| Width | 13/16" |
| Yield Strength | 40000 psi |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| HS code | 7318160085 |
| Country of Origin | US |
Product Variants
| Product | Model | Hex Width | Thread Direction | Type | Thread Style | Material Grade/class | Material Quality Standards | Tensile Strength | Yield Strength | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
250285BG | 5/8" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 5 | €24.75 | |
 |
250286BG | 5/8" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 5 | €30.29 | |
 |
250288BG | 11/16" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 5 | €26.23 | |
 |
250292BG | 1" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 2 | €19.50 | |
 |
250294BG | 1" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 2 | €29.05 | |
 |
250295BG | 1 1/4" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 2 | €35.54 | |
 |
250298BG | 1 3/8" | Right Hand | Coupling | Fully Threaded | Grade 2 | Sae J995 | 50000 psi | 40000 psi | 2 | €36.57 |
