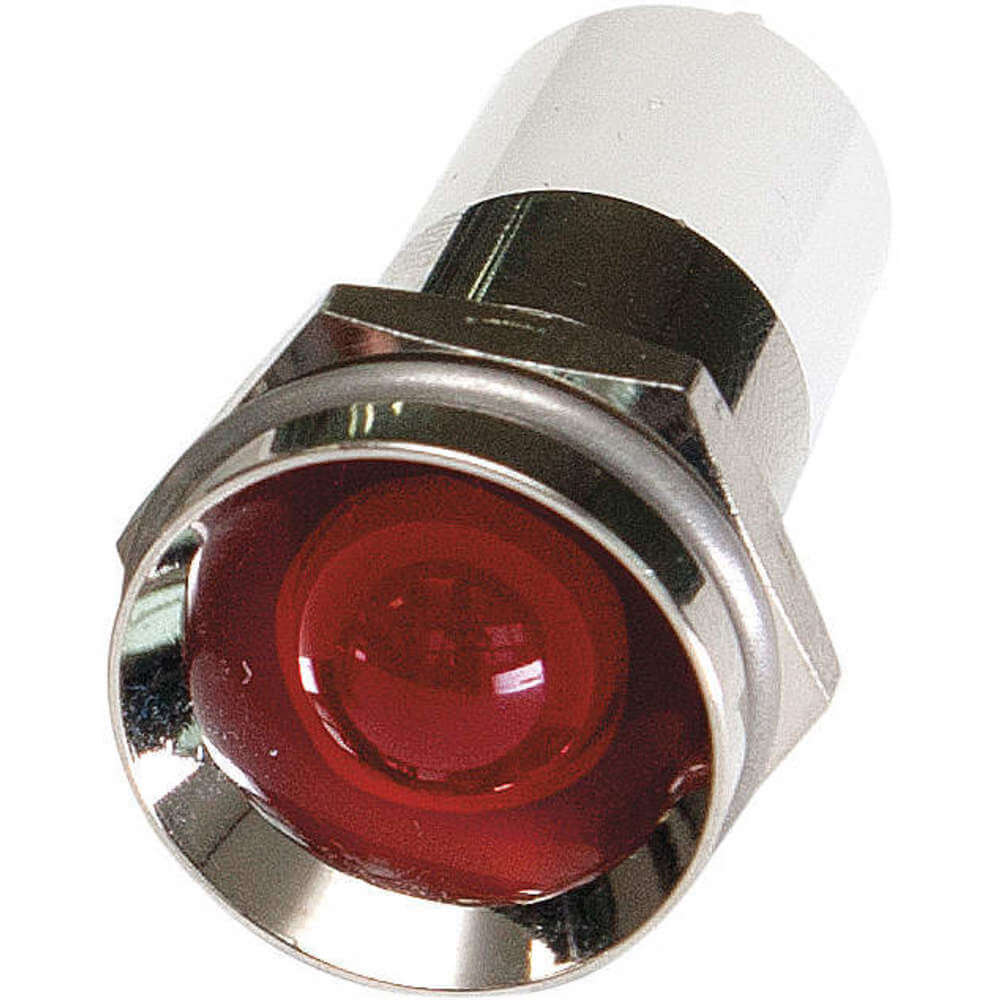

APPROVED VENDOR 24M154 Protrude Indicator Light Red 12vdc
Item: AB7YMKModel: 24M154
7 In Stock
Ships within 2 days via
10.00% off
€15.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Protruding Indicator Light |
| Amps Drawn | 20 mA |
| Average Life | 100000 hrs. |
| Body Material | ABS, Brass Plated Chrome |
| Color | Red |
| Electrical Connection | 0.11 Male Quick Disconnect |
| Finish | Brass Plated |
| Head Color | Red |
| Head Style | Protruding |
| Includes Lamp Module - New | Yes |
| Includes Lens | Lens Included |
| Ip Rating | IP40 |
| Lamp Bulb Color | Red |
| Lamp Bulb Type | LED |
| Lamp Type | LED |
| Manufacturer Warranty Length | 3 yrs. |
| Nema Enclosure Rating | No Enclosure |
| Overall Depth | 1.57" |
| Overall Height | 18/25" |
| Overall Width | 18/25" |
| Panel Mounting Hole Diameter | 16 mm |
| Panel Thickness | Up To 0.16" |
| Series | M16 Series |
| Shape | Round |
| Stem Thread Size | M16 |
| Voltage | 12V DC |
| Voltage Rating - Maximum | 12V DC |
Shipping Info:
| Ship height (cm) | 1.78 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.03 |
| HS code | 8531200040 |
| Country of Origin | KR |
Product Variants
| Product | Model | Color | Electrical Connection | Mounting Dia. | Lamp Type | Voltage | Ip Rating | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
24M026 | Red | Lead For Soldering | - | LED | 12V DC | IP40 | Brass Plated | €6.66 | |
 |
24M027 | Yellow | Lead For Soldering | 6 mm | LED | 12V DC | IP40 | Brass Plated | €6.66 | |
 |
24M028 | Green | Lead For Soldering | 6 mm | LED | 12V DC | IP40 | Brass Plated | €6.66 | |
 |
24M051 | Red | 0.11 Male Quick Disconnect | - | LED | 12V DC | IP40 | Brass Plated | €7.33 | |
 |
24M052 | Yellow | 0.11 Male Quick Disconnect | 8 mm | LED | 12V DC | IP40 | Brass Plated | €7.32 | |
 |
24M053 | Green | 0.11 Male Quick Disconnect | 8 mm | LED | 12V DC | IP40 | Brass Plated | €8.09 | |
 |
24M084 | Red | 0.11 Male Quick Disconnect | 10 mm | LED | 12V DC | IP40 | Brass Plated | €9.60 |
