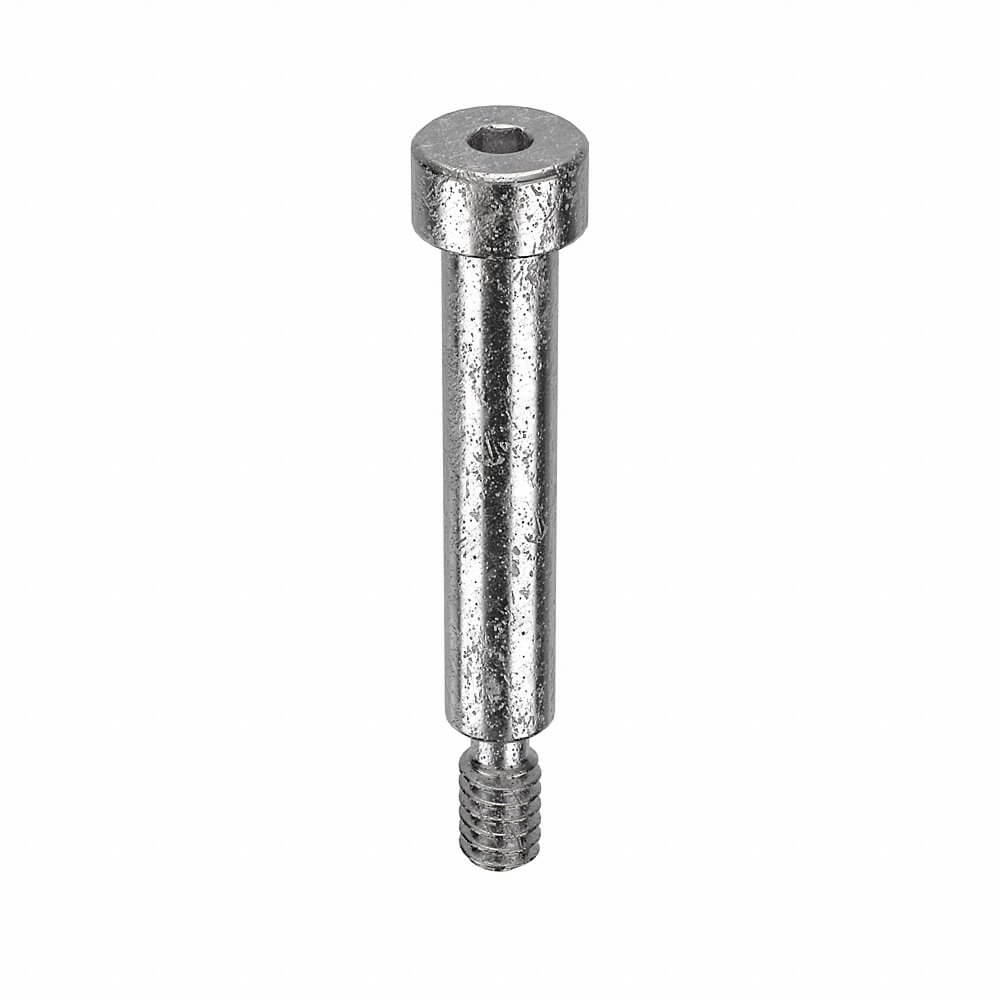

APPROVED VENDOR 24. Oct 4435 Shoulder Screw, 10-24 Thread Size, 1 1/4 In Shoulder Lg., 3/16 In Head Ht., Precision, SS
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€44.83 /pkg. of 5
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Size | 1/8" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 116000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Dia. | 1/4" |
| Shoulder Diameter Tolerance | 0.0015" to 0" |
| Shoulder Length | 1 1/4" |
| Shoulder Length Tolerance | 0" to 0.002" |
| System Of Measurement | Imperial |
| Tensile Strength | 116000 psi |
| Thread Fit | 2A |
| Thread Length | 1/4" |
| Thread Size | #10-32 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
| HS code | 7318156010 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4410 | #4-40 | 1/8" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €26.74 | |
 |
PAT4411 | #4-40 | 3/16" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €30.53 | |
 |
PAT4412 | #4-40 | 1/4" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €31.21 | |
|
PAT4413 | #4-40 | 5/16" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €31.45 | |
 |
PAT4414 | #4-40 | 3/8" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €31.54 | |
|
PAT6906SS | #4-40 | 7/16" | 1/8" | 5/32" | - | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €33.95 | |
 |
PAT6907SS | #4-40 | 1/2" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5 | €30.85 |
