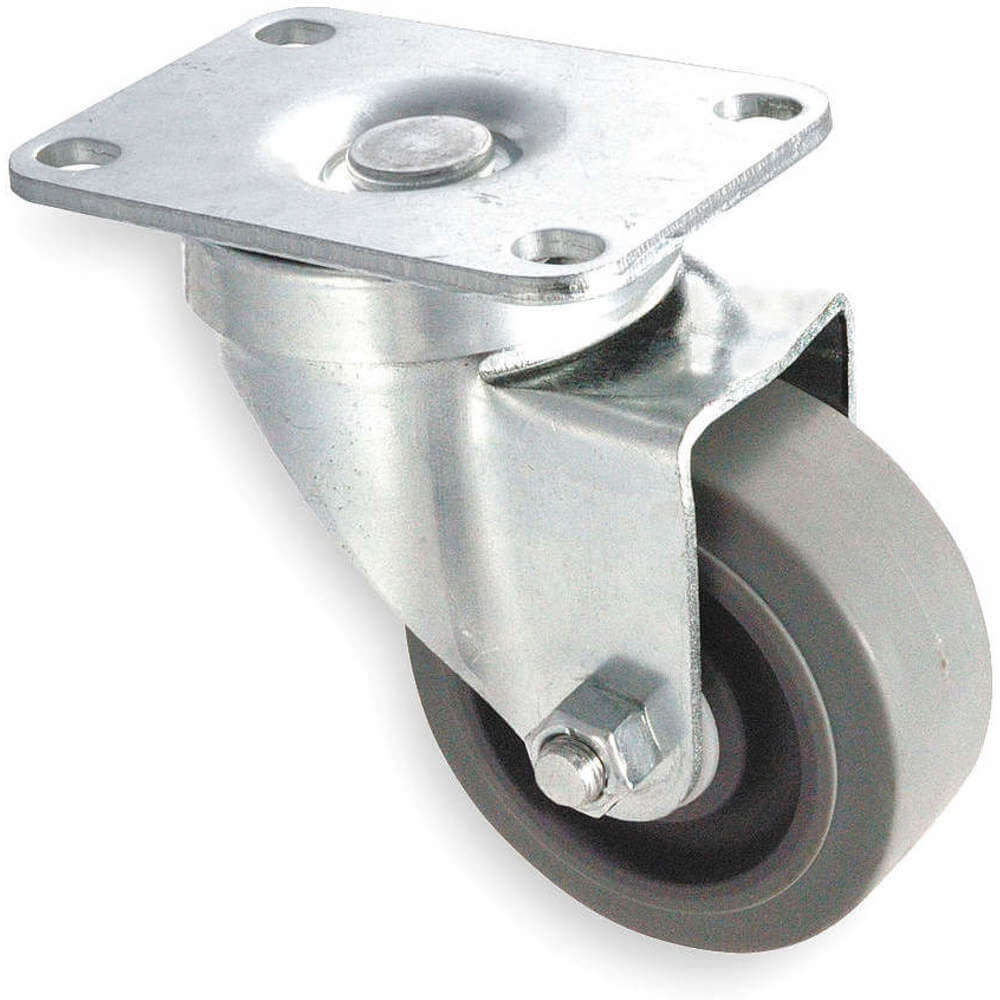

APPROVED VENDOR 1UHX2 Swivel Plate Caster 325 Lb 5 Inch Diameter
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€13.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Rubber |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Polyolefin |
| Durometer | 75 Shore A |
| Features | Corrosion Resistant |
| Frame Finish | Zinc Plated |
| Hole Pattern | C |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Load Rating | 325 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 6 3/16" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( C ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Overall Height | 6.187" |
| Plate Size | 2 1/2" x 3 5/8" |
| Plate Thickness | 0.157" |
| Plate Type | C |
| Raceway Type | Double Ball |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Diameter | 5" |
| Wheel Material | Rubber |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 75 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Thermoplastic Rubber |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 16.51 |
| HS code | 8302200000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Load Rating Range | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Wheel/tread Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1G095 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 0 lbs. to 299 lbs. | No Brake Included | 4 5/8" | C | Polyurethane | €20.41 | |
|
1G096 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 0 lbs. to 299 lbs. | No Brake Included | 5 1/8" | C | Polyurethane | €19.02 | |
|
1G097 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 0 lbs. to 299 lbs. | No Brake Included | 6 1/8" | C | Polyurethane | €21.74 | |
 |
1G190 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 3 3/4" | D | Thermoplastic Rubber | €13.11 | |
 |
1G191 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 4 11/16" | D | Thermoplastic Rubber | €28.92 | |
 |
1G192 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 5 5/8" | D | Thermoplastic Rubber | €14.74 | |
 |
1G196 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 3 3/4" | D | Polyurethane | €11.97 |
