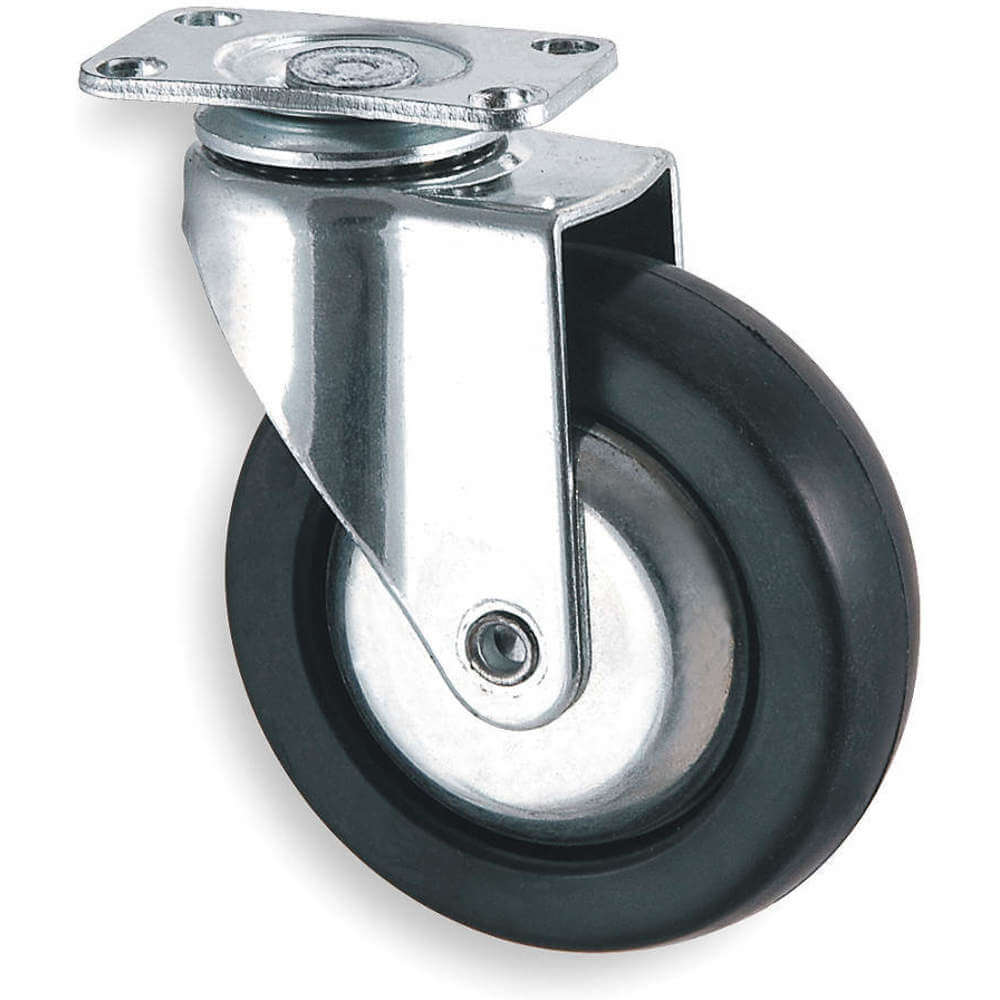

APPROVED VENDOR 1UHV9 Swivel Plate Caster 140 Lb 4 Inch Diameter
Get it by Friday, Aug 28
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating | 0 lbs. to 299 lbs. |
| Caster Material | Polyolefin |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Polyolefin |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Polyolefin |
| Durometer | 65 Shore D |
| Features | Corrosion Resistant |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | D |
| Included Thread Guards | Yes |
| Inside Bolt Hole Spacing | 1 3/4" x 3" |
| Load Rating | 140 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 4 13/16" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 2 3/4" x 3 3/4" |
| Mounting Plate Size & Bolt Hole Pattern | 2 3/4" X 3 3/4" ( D ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 1 3/4" x 3" |
| Overall Height | 4.812" |
| Plate Size | 2 3/4" x 3 3/4" |
| Plate Type | D |
| Raceway Type | Double Ball |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 3 5/64" |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Plain Bore |
| Wheel Color | Black |
| Wheel Core Material | Plastic |
| Wheel Dia. | 4" |
| Wheel Material | Polyolefin |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 65 Shore D , Hard |
| Wheel/tread Material | Polyolefin |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 7.11 |
| HS code | 8302200000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Wheel Dia. | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Wheel/tread Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1G095 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 3 1/2" | No Brake Included | 4 5/8" | C | Polyurethane | €22.88 | |
|
1G096 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 4" | No Brake Included | 5 1/8" | C | Polyurethane | €18.18 | |
|
1G097 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 5" | No Brake Included | 6 1/8" | C | Polyurethane | €20.77 | |
 |
1G190 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 3" | No Brake Included | 3 3/4" | D | Thermoplastic Rubber | €11.63 | |
 |
1G191 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 4" | No Brake Included | 4 11/16" | D | Thermoplastic Rubber | €26.21 | |
 |
1G192 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 5" | No Brake Included | 5 5/8" | D | Thermoplastic Rubber | €13.32 | |
 |
1G196 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 3" | No Brake Included | 3 3/4" | D | Polyurethane | €11.63 |
