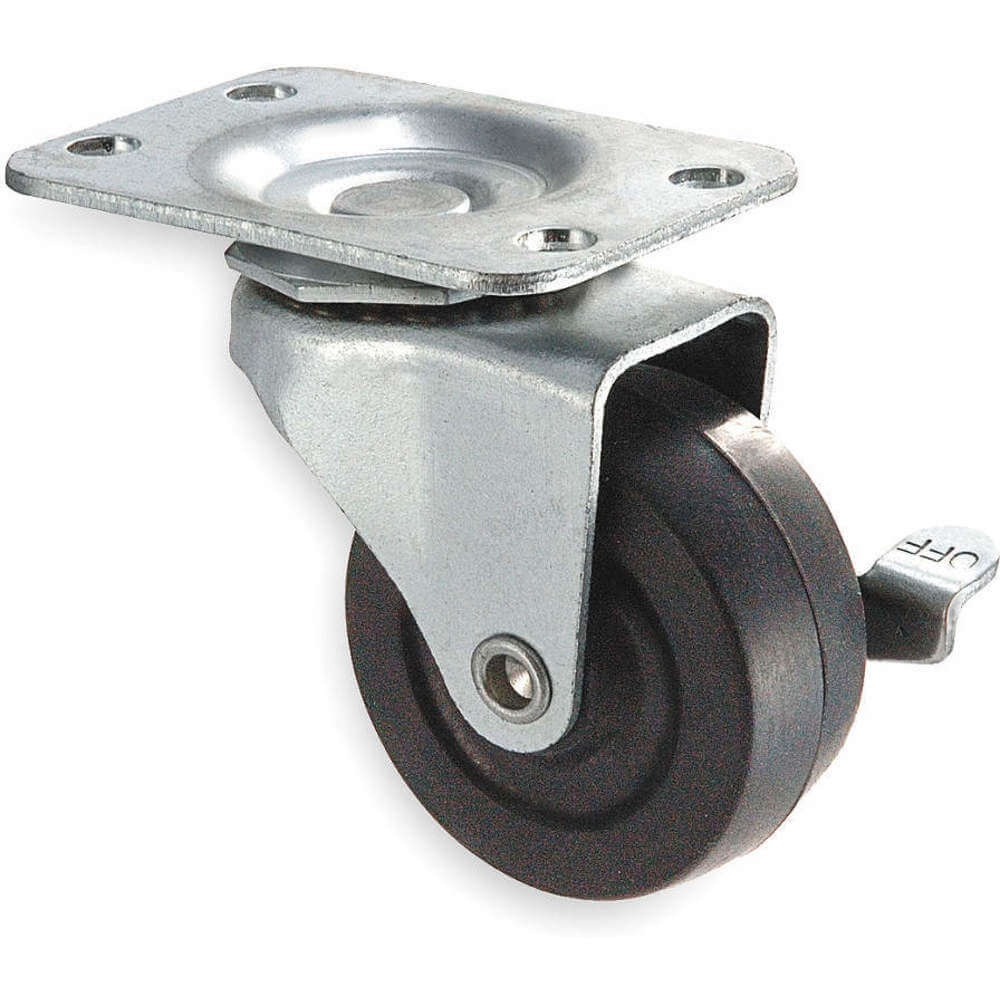

APPROVED VENDOR 1UHJ1 Swivel Plate Caster With Brake 75 Lb 2 Inch Diameter
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€6.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Double Ball |
| Brake Type | Side Strap |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Material | Rubber |
| Caster Product Group | Swivel Caster With Brake |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Rubber |
| Durometer | 90 Shore A |
| Features | Corrosion Resistant |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | D |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 15/16" x 2 1/8" |
| Load Rating | 75 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/4" |
| Mounting Height | 2 1/2" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 1 7/8" x 2 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 1 7/8" X 2 5/8" ( D ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 15/16" x 2 1/8" |
| Overall Height | 2 5/8" |
| Plate Size | 1 7/8" x 2 5/8" |
| Plate Thickness | 2/25" |
| Plate Type | D |
| Raceway Type | Double Ball |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Color | Black |
| Wheel Core Material | Rubber |
| Wheel Diameter | 2" |
| Wheel Material | Rubber |
| Wheel Width | 7/8" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 85 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 5.08 |
| HS code | 8302200000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Load Rating Range | Wheel Bearing Type | Caster Brake Type | Load Rating | Mounting Height | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1NUX5 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 900 lbs. | 7 1/2" | 2" | €48.62 | |
 |
1NUX8 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 900 lbs. | 9 1/2" | 2" | €103.61 | |
 |
1NUY2 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 750 lbs. | 5 5/8" | 2" | €49.95 | |
 |
1NUZ7 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 800 lbs. | 5 5/8" | 2" | €35.68 | |
 |
1NVC1 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | Roller | Side Pedal Brake | 1000 lbs. | 5 5/8" | 2" | €39.50 | |
|
1NVC4 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | Roller | Side Pedal Brake | 1000 lbs. | 6 1/2" | 2" | €51.03 | |
|
1NVC7 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | Roller | Side Pedal Brake | 1200 lbs. | 7 1/2" | 2" | €58.01 |
