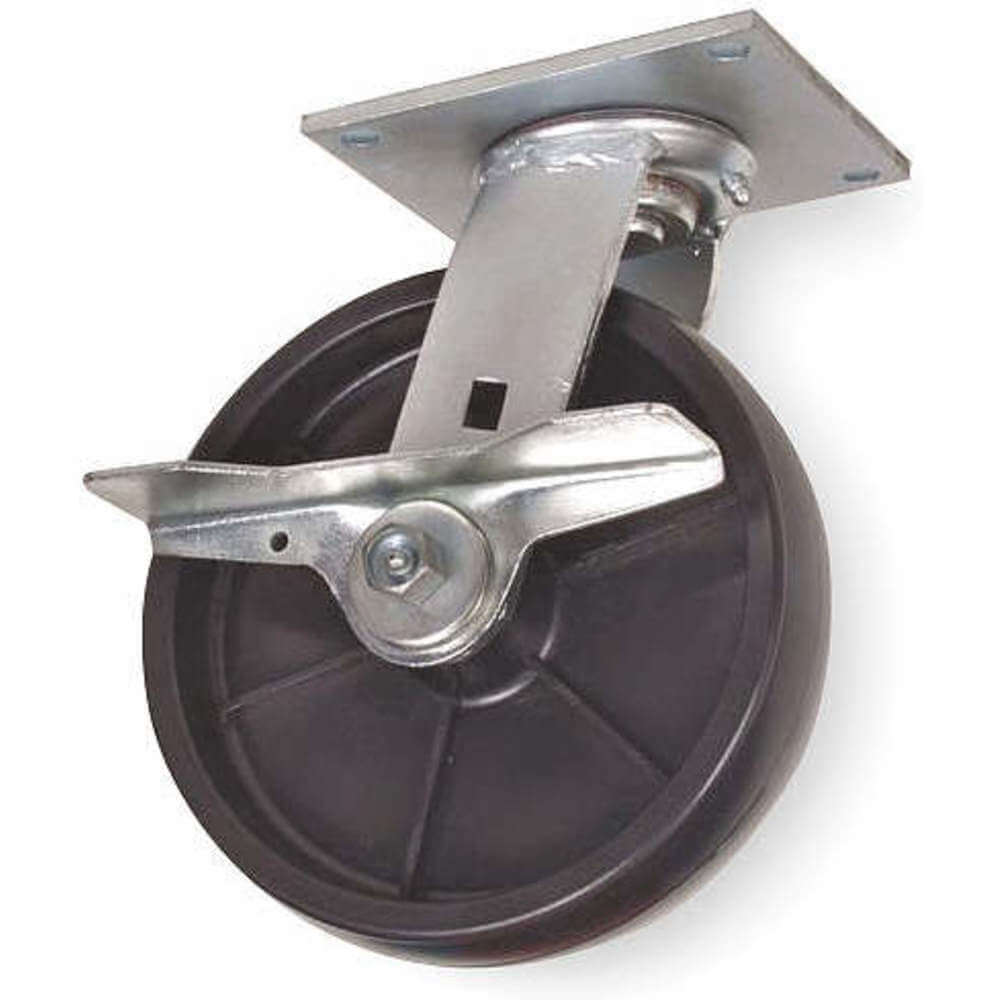

APPROVED VENDOR 1NVP5 Swivel Plate Caster With Brake 1000 Lb 8 Inch Diameter
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€48.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Double Ball |
| Brake Type | Side Strap |
| Caster Brake Included | Yes |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyolefin |
| Caster Product Group | Swivel Caster With Brake |
| Caster Type | Swivel |
| Caster Wheel Material | Polyolefin |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Polyolefin |
| Durometer | 65 Shore D |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | D |
| Inside Bolt Hole Spacing | 4 1/8" x 4 1/2" |
| Load Rating | 1000 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8" x 4 1/2" |
| Overall Height | 9 1/2" |
| Plate Size | 5" x 5 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | D |
| Raceway Type | Double Ball Hardened |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Diameter | 8" |
| Wheel Material | Polyolefin |
| Wheel Width | 2" |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
| HS code | 8716903000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Load Rating Range | Wheel Bearing Type | Caster Brake Type | Load Rating | Mounting Height | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1NUX5 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 900 lbs. | 7 1/2" | 2" | €48.62 | |
 |
1NUX8 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 900 lbs. | 9 1/2" | 2" | €103.61 | |
 |
1NUY2 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 750 lbs. | 5 5/8" | 2" | €49.95 | |
 |
1NUZ7 | 3" x 3" | 2 5/8" x 3 5/8" | 300 lbs. to 999 lbs. | Roller | Side Pedal Brake | 800 lbs. | 5 5/8" | 2" | €35.68 | |
 |
1NVC1 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | Roller | Side Pedal Brake | 1000 lbs. | 5 5/8" | 2" | €39.50 | |
|
1NVC4 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | Roller | Side Pedal Brake | 1000 lbs. | 6 1/2" | 2" | €51.03 | |
|
1NVC7 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. to 2999 lbs. | Roller | Side Pedal Brake | 1200 lbs. | 7 1/2" | 2" | €58.01 |
