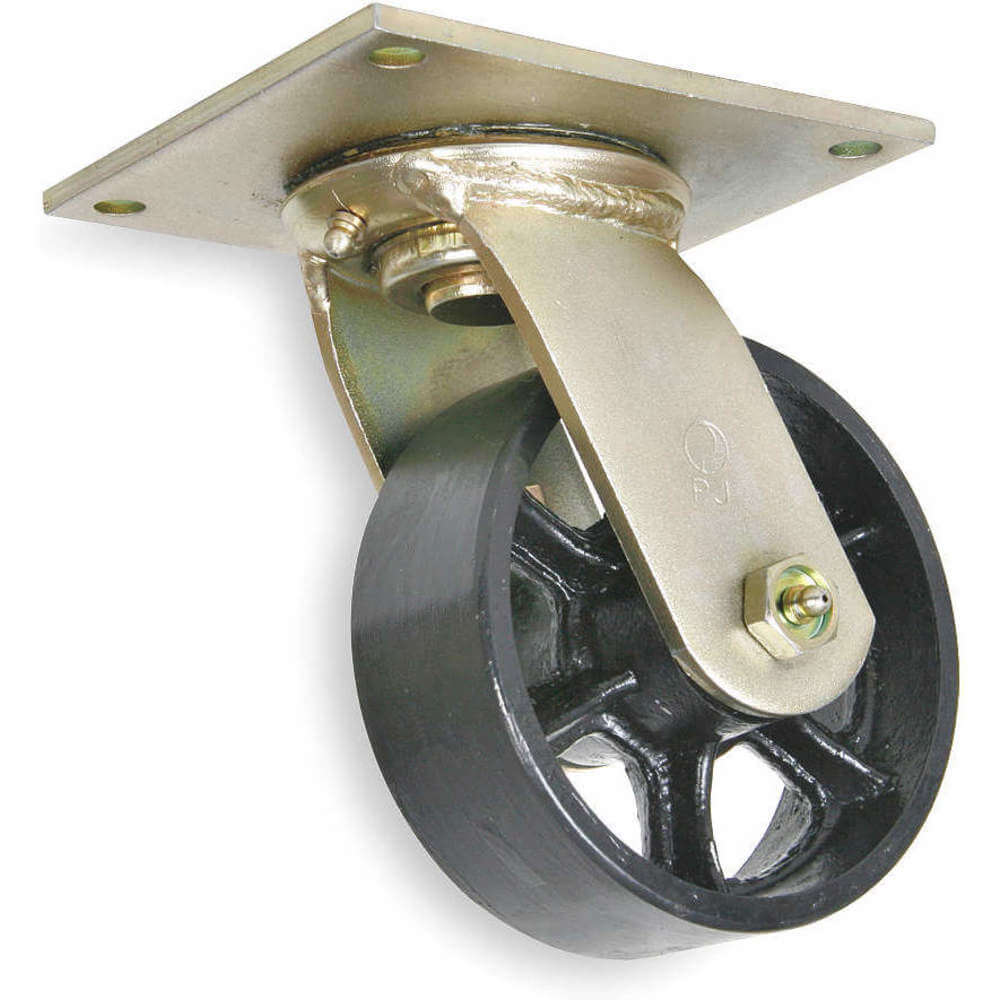

APPROVED VENDOR 1NVH4 Swivel Plate Caster 1200 Lb 5 Inch Diameter
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€36.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Cast Iron |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Cast Iron |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Cast Iron |
| Frame Finish | Zinc Chromate |
| Frame Material | Steel |
| Hole Pattern | D |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 4 1/2" |
| Load Rating | 1200 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 5" x 5 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 5" X 5 1/2" ( D ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8" x 4 1/2" |
| Plate Size | 5" x 5 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | D |
| Raceway Type | Double Ball Hardened |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 5" |
| Wheel Material | Cast Iron |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness Rating | Extra Hard |
| Wheel/tread Material | Iron |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 12.7 |
| HS code | 8716903000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Load Rating Range | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Wheel/tread Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1G095 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 0 lbs. to 299 lbs. | No Brake Included | 4 5/8" | C | Polyurethane | €20.41 | |
|
1G096 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 0 lbs. to 299 lbs. | No Brake Included | 5 1/8" | C | Polyurethane | €19.02 | |
|
1G097 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | Precision Ball | 0 lbs. to 299 lbs. | No Brake Included | 6 1/8" | C | Polyurethane | €21.74 | |
 |
1G190 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 3 3/4" | D | Thermoplastic Rubber | €13.11 | |
 |
1G191 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 4 11/16" | D | Thermoplastic Rubber | €28.92 | |
 |
1G192 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 5 5/8" | D | Thermoplastic Rubber | €14.74 | |
 |
1G196 | 1 3/4" x 3" | 1 3/4" x 3" | Delrin | 0 lbs. to 299 lbs. | No Brake Included | 3 3/4" | D | Polyurethane | €11.97 |
