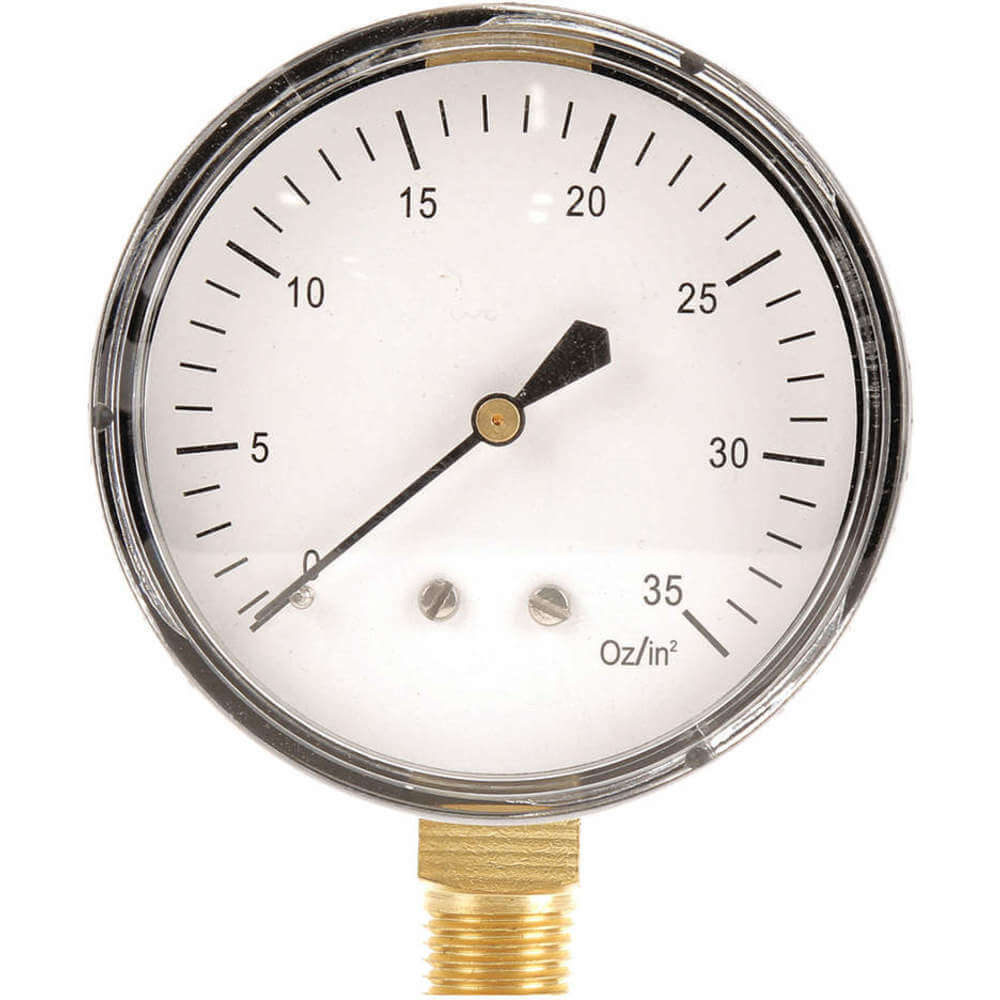

APPROVED VENDOR 18C778 Press Gauge Low Press Diaphragm 2-1/2 In
Item: AA8EDRModel: 18C778
7 In Stock
Ships within 2 days via
10.00% off
€96.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -40°F to +160°F |
| Application | Pressure Detection |
| Case Color | Black |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Lower |
| Dial Color | White |
| Dial Size | 2 1/2" |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | For Inert Gases |
| Gauge Case Material | Steel |
| Gauge Type | Low Pressure Diaphragm |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Nominal Dial Size | 2 1/2" |
| Operating Temp. Range | -40°F to +160°F |
| Panel-mountable | No |
| Pressure Gauge Type | Low Pressure Gauge |
| Pressure Range | 0 oz./sq. in. to 32 oz./sq. in. |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 32 |
| Primary Scale Minor Graduations | 1 |
| Primary Scale Units | oz./in. |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Copper Alloy |
| Sensor Type | Diaphragm |
| Series | YE65 Series |
| Smallest Graduation | 1 oz./sq. in. |
| Socket Material | Copper Alloy HPB59-1 |
| Tube Material | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 5.08 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Gauge Type | Pressure Range Type | Process Connection Location | Nominal Dial Size | Panel-mountable | Mounting Type | Lens Material | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11A497 | Process Pressure Gauge | Pressure | Bottom | 4 1/2" | Yes | Surface | Polycarbonate | -40°F to +140°F | €246.01 | |
 |
11A524 | Process Pressure Gauge | Compound | Bottom | 4 1/2" | Yes | Surface | Glass | -40°F to +140°F | €208.24 | |
 |
11A527 | Process Pressure Gauge | Pressure | Bottom | 4 1/2" | Yes | Surface | Glass | -40°F to +140°F | €208.24 | |
 |
11A531 | Process Pressure Gauge | Pressure | Bottom | 4 1/2" | Yes | Surface | Glass | -40°F to +140°F | €177.00 | |
 |
18C739 | Industrial Pressure Gauge | Vacuum | Bottom | 4 1/2" | No | Stem Mount | Acrylic | -40°F to +200°F | €63.98 | |
 |
18C741 | Industrial Pressure Gauge | Compound | Bottom | 4 1/2" | No | Stem Mount | Acrylic | -40°F to +200°F | €63.98 | |
 |
18C742 | Industrial Pressure Gauge | Compound | Bottom | 4 1/2" | No | Stem Mount | Acrylic | -40°F to +200°F | €63.98 |
