APPLETON ELECTRIC TC125104 Cord Connector, 1 1/4 Inch MNPT, 0.67 to 1.04 Inch Cord Dia., Aluminum, Silver
Item: AA2FGXModel: TC125104Cross Ref: 10G032
7 In Stock
Ships within 2 days via
10.00% off
€212.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cord Connector |
| Body Color | Silver |
| Body Color - Cord Connector | Silver |
| Body Material | Aluminum |
| Box Connection | 1 1/4" MNPT |
| Cable Gland Accessories | Adaptor, Reducer, Earth Tag |
| Color | Silver |
| Compatible Conduit Trade Size | 1 1/4" |
| Conduit Size | 1 1/4" |
| Connection Orientation | Straight |
| Cord Dia. (in.) | 0.67" to 1.04" |
| Cord Dia. (in.) | 0.67 to 1.04 |
| Cord Dia. Range | 0.67" to 1.04" |
| For Maximum Cable Od | 1 1/25" |
| For Min. Cable Od | 0.67" |
| For Use With | Tray Cable |
| Gland Color Code | No Code |
| Grommet Color Code | No Code |
| Hazardous Location Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups E, F, G, Class III, Division 2 |
| Hazardous Location Rating - Europe | EX D IIC GB, EX E IIC GB, EX II 2 GD, EX TA IIIC DA |
| Hub Size | 1 1/4" |
| Insulated | No |
| Ip Rating | IP66 |
| Length | 0.98" |
| Length - Box To End Of Connector | 1" |
| Length - External Strain Relief | 1 21/32" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Male/female | Male |
| Material | Copper Free Aluminum |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 230°F |
| Min. Throat Dia. | 1" |
| Min. Throat Dia. (in.) | 1.00 |
| Minimum Operating Temperature | -76°F |
| Nema Rating | NEMA 4X |
| Number Of Cords | 1 |
| Product Datasheet | appleton-electric-tc050nb0552ro.pdf |
| Strain Relief Type | No External Strain Relief |
| Style | Straight |
| Thread Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 7.11 |
| HS code | 8536694020 |
| Country of Origin | IN |
Documentation:
Product Variants
| Product | Model | Cord Dia. Range | Material | Color | Conduit Size | Min. Throat Dia. | Cord Dia. (in.) | Trade Size | Liquid Tight / Dust Tight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

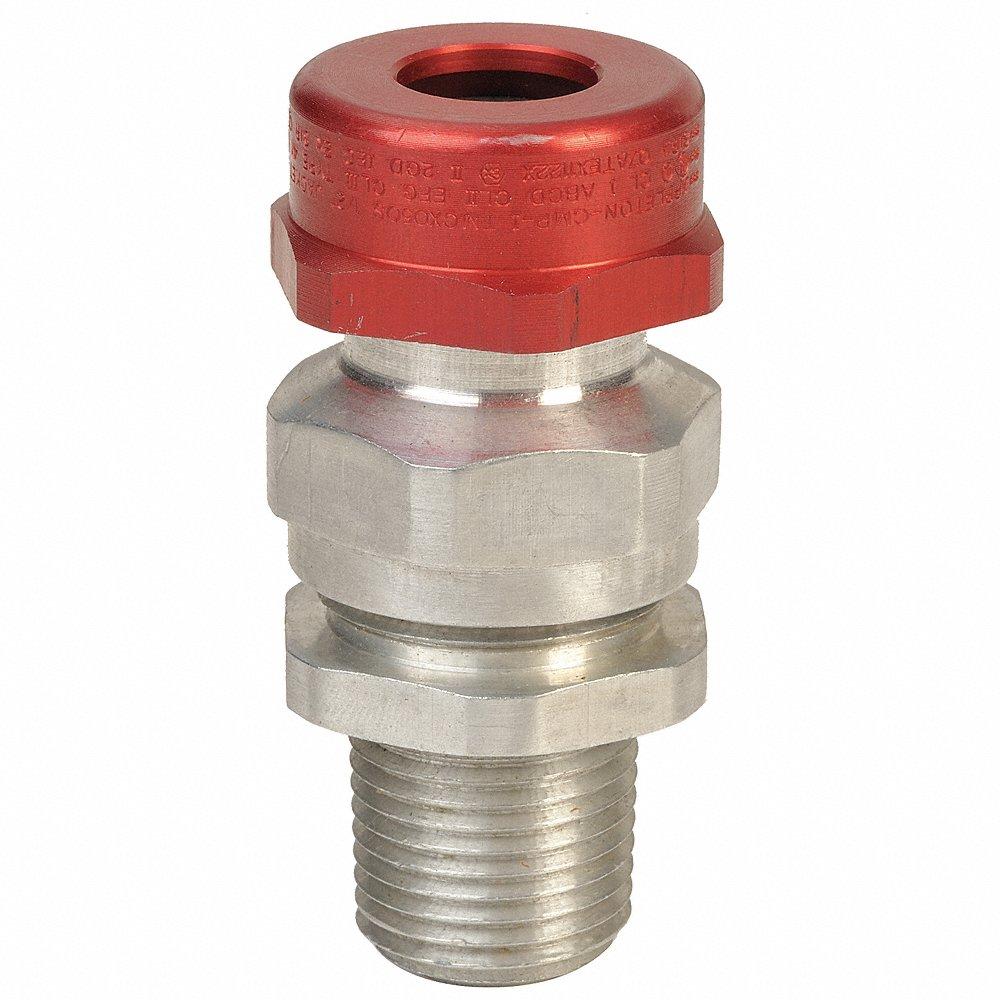

TMCX050SNB | 0.35" to 0.55" | Brass | Silver | 1/2" | 0.59" | 0.34" to 0.50" | - | Liquid Tight | €269.37 | |
 |

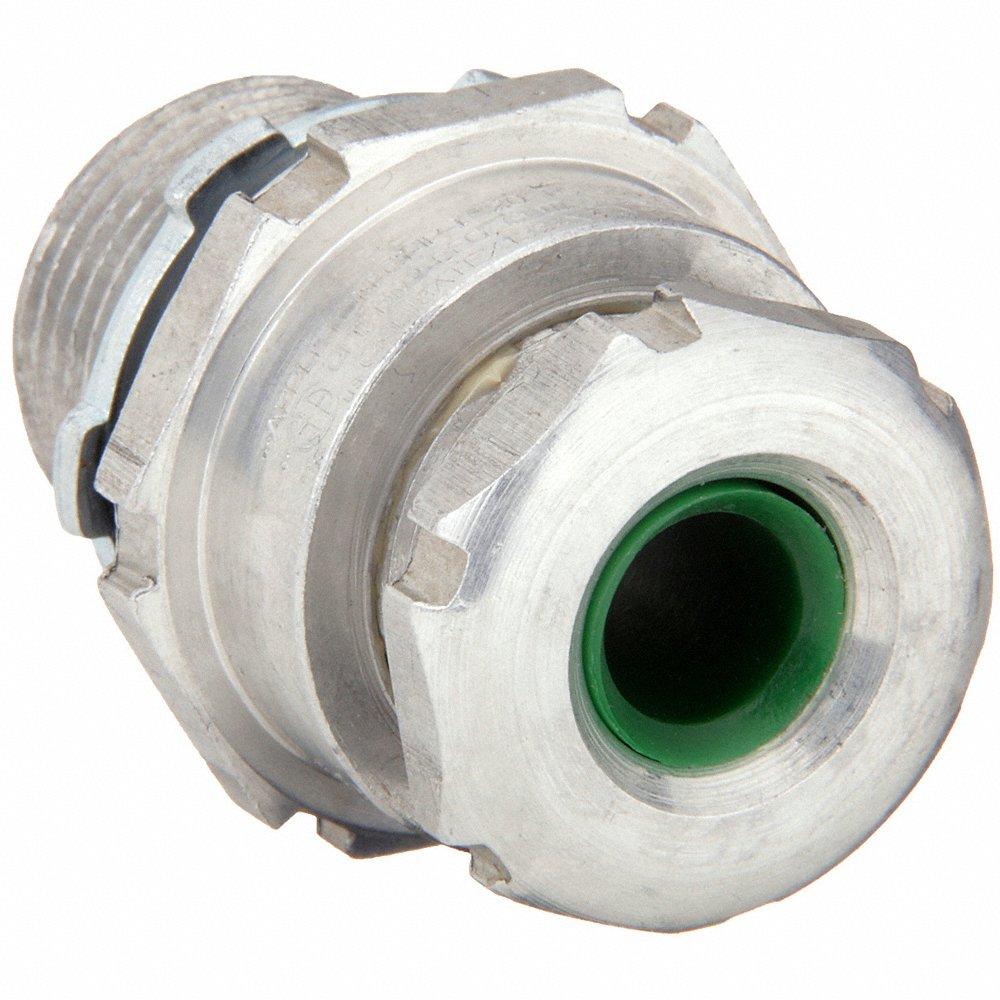

TC050028 | 0.13" to 0.28" | Copper Free Aluminum | Silver | - | 0.78" | 0.13" to 0.28" | - | Liquid Tight | €42.53 | |
|
TC050055 | 0.26" to 0.55" | Copper Free Aluminum | Silver | - | 0.78" | 0.26" to 0.55" | - | Liquid Tight | €42.67 | |
|
TC075028 | 0.13" to 0.28" | Copper Free Aluminum | Silver | 3/4" | 0.8" | 0.13" to 0.28" | - | Liquid Tight | €55.15 | |
|
TC075055 | 0.26" to 0.55" | Copper Free Aluminum | Silver | - | 0.8" | 0.26" to 0.55" | - | Liquid Tight | €55.15 | |
|
TC075079 | 0.47" to 0.79" | Copper Free Aluminum | Silver | - | 0.8" | 0.47" to 0.79" | - | Liquid Tight | €55.15 | |
|
TC100079 | 0.47" to 0.79" | Copper Free Aluminum | Silver | - | 0.98" | 0.47" to 0.79" | - | Liquid Tight | €73.05 |
