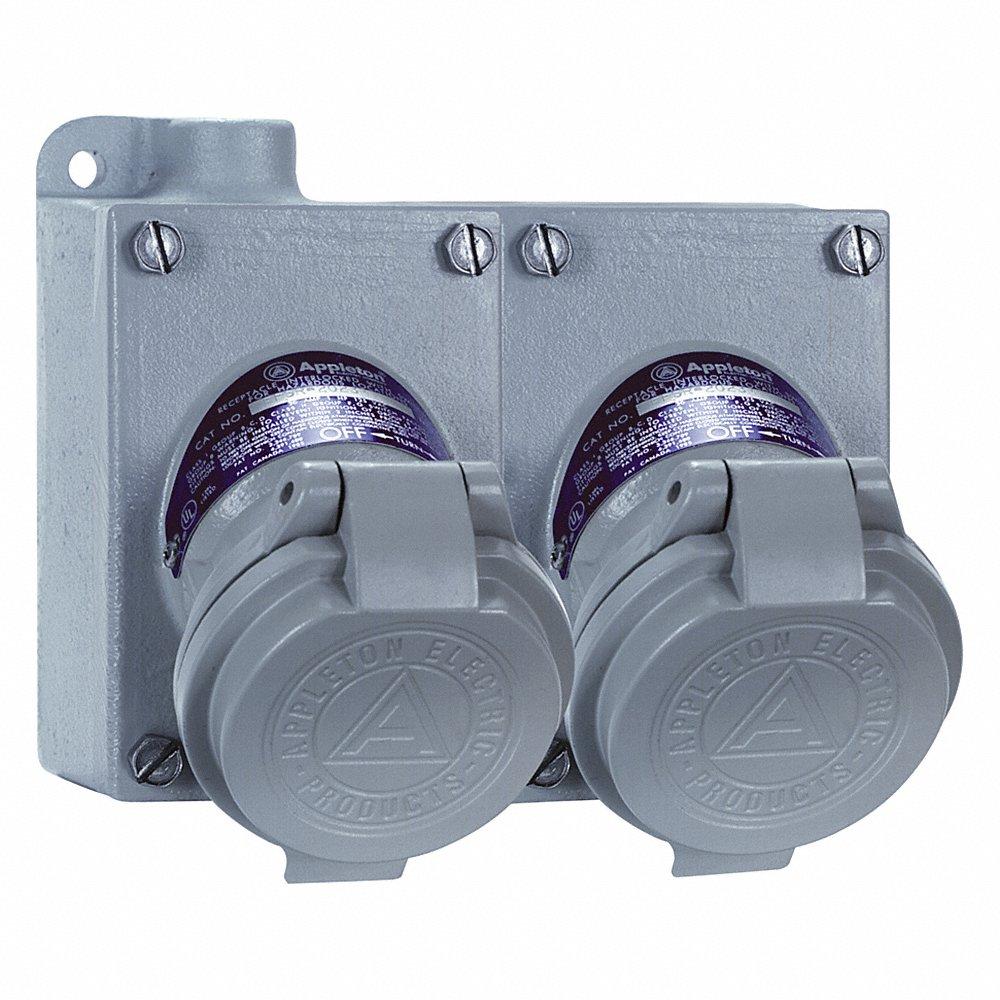

APPLETON ELECTRIC CPS152-202 Pin and Sleeve Receptacle, 20 A, 125 to 250V AC/18V DC, 1 hp, Gray, Dead End
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,369.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Cap Type | Spring Loaded Cap |
| Connection Orientation | 60° Elbow |
| Contact Material | Copper |
| Current Rating | 20A |
| Face Diameter | 2.63" |
| Features | Delayed Action Construction: Insert Plug Partially Rotate Slide On Front Of Receptacle And Insert Plug Fully |
| Flange Type | Non Flanged |
| For Maximum Cable Diameter | 0.639" |
| For Minimum Cable Diameter | 0.538" |
| Gfci | Yes |
| Grounding | Grounded |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D |
| Housing Color | Gray |
| Housing Material | Malleable Iron |
| Housing Material Finish | Epoxy Powder Coated |
| Hp Rating | 1 hp |
| Hub Diameter | 3/4" |
| Hub Size | 3/4" |
| Hub Style | Dead End |
| Includes Mounting Hardware | Yes |
| Insulation Material | Fiberglass Reinforced Polyester |
| Ip Rating | Not Rated |
| Market | Industrial |
| Mounting Box | 2-Gang |
| Mounting Box Entry | Dead End |
| Nema Enclosure Rating | Not Rated |
| Number Of Gangs | 2 |
| Number Of Poles | 3.0 |
| Number Of Wires | 2 |
| Phase | Single |
| Power Indicating Light | No |
| Product Datasheet | appleton-electric-cps152102sagfi.pdf |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | No |
| Screw Material | Stainless Steel |
| Screw Type | Captive Hex Head Slotted |
| Shrouded | Yes |
| Ul 94 Flammability Rating | Not Rated |
| Voltage | 125-250V |
| Voltage Rating | 125-250V AC/18V DC |
| Wire Connection Type | Spring Clamp Terminals |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 26.42 |
| Ship length (cm) | 40.39 |
| Ship width (cm) | 35.05 |
| HS code | 8536698000 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Voltage Rating | Hub Size | Hub Style | Current Rating | Number Of Wires | Hp Rating | Reverse Service | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

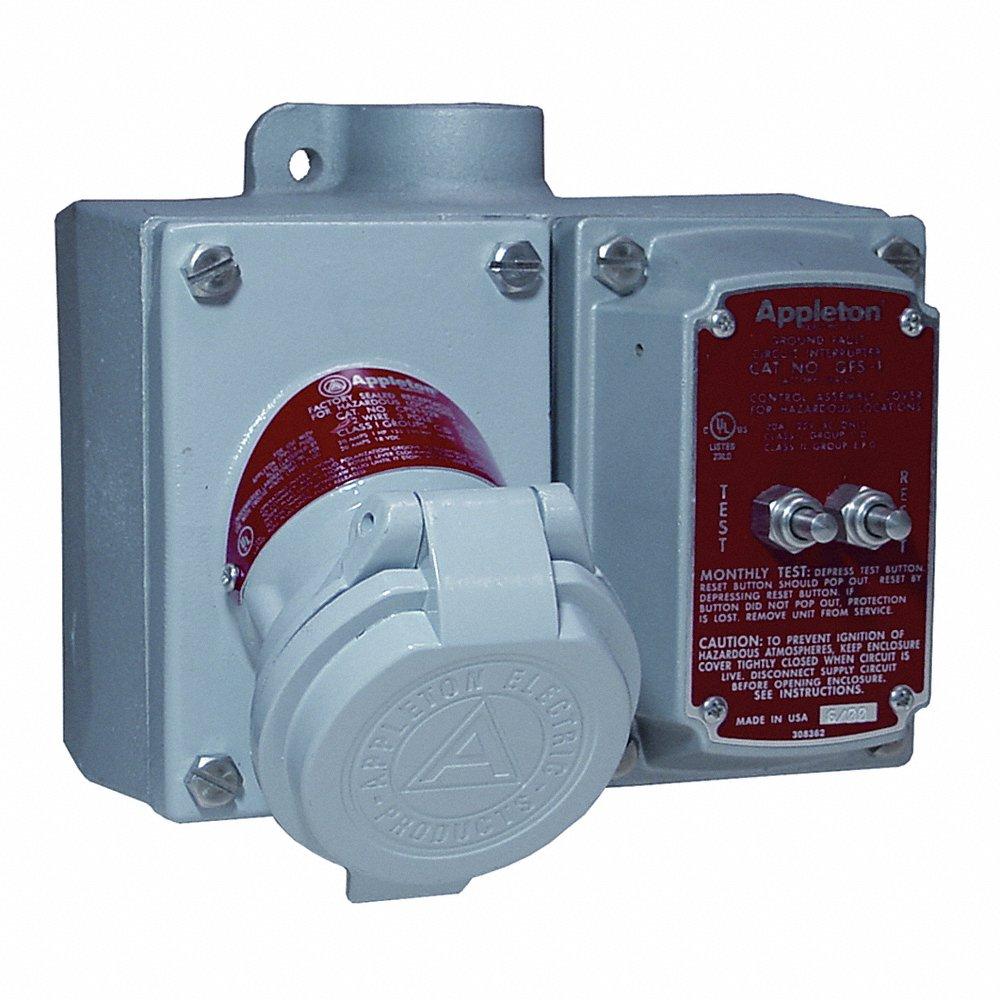

CPS152-102GFI | 3.0 | 125-250V AC/18V DC | 1/2" | Dead End | 20A | 2 | 1 hp | No | €4,326.95 | |
 |

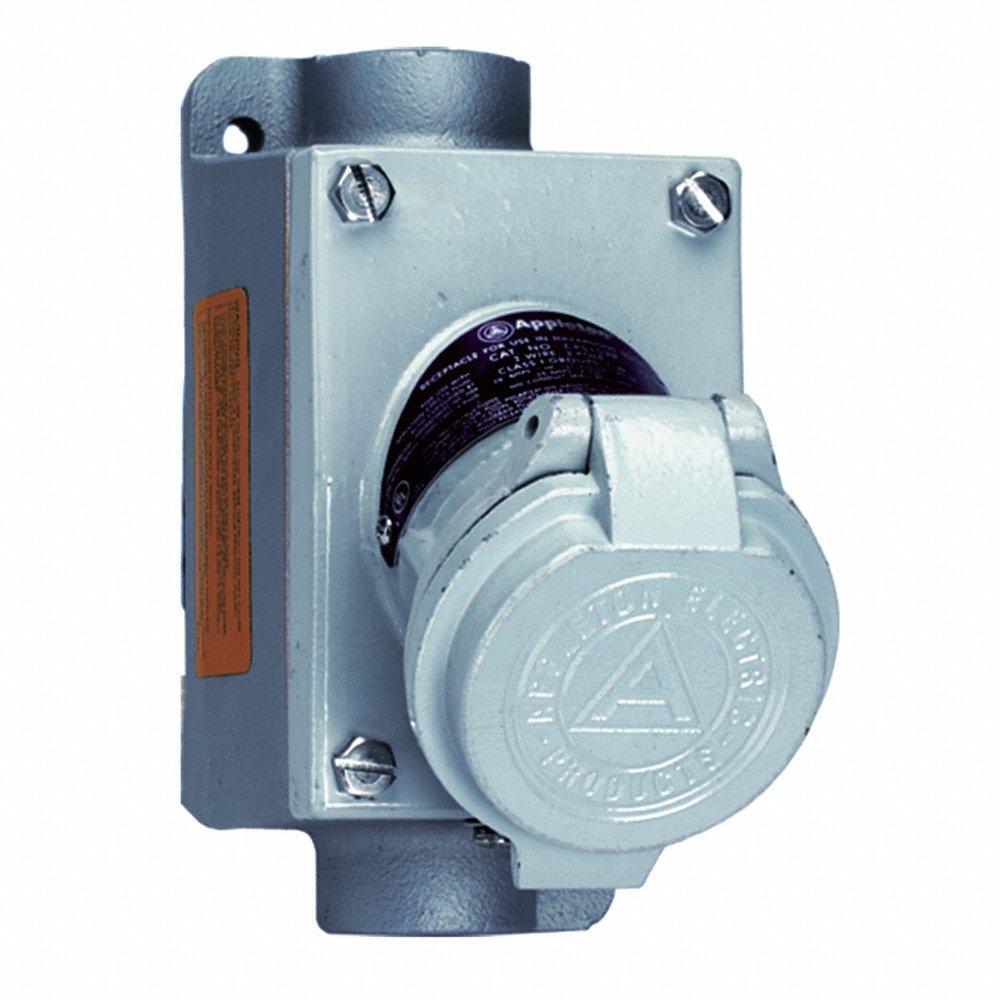

CPS152-111 | 3.0 | 125-250V AC/18V DC | 1/2" | Feed Thru | 20A | 2 | 1 hp | No | €1,283.25 | |
|
CPS152-112 | 3.0 | 125-250V AC/18V DC | 1/2" | Feed Thru | 20A | 2 | 1 hp | No | €2,637.85 | |
|
CPS152-112GFI | 3.0 | 125-250V AC/18V DC | 1/2" | Feed Thru | 20A | 2 | 1 hp | No | €4,326.95 | |
 |

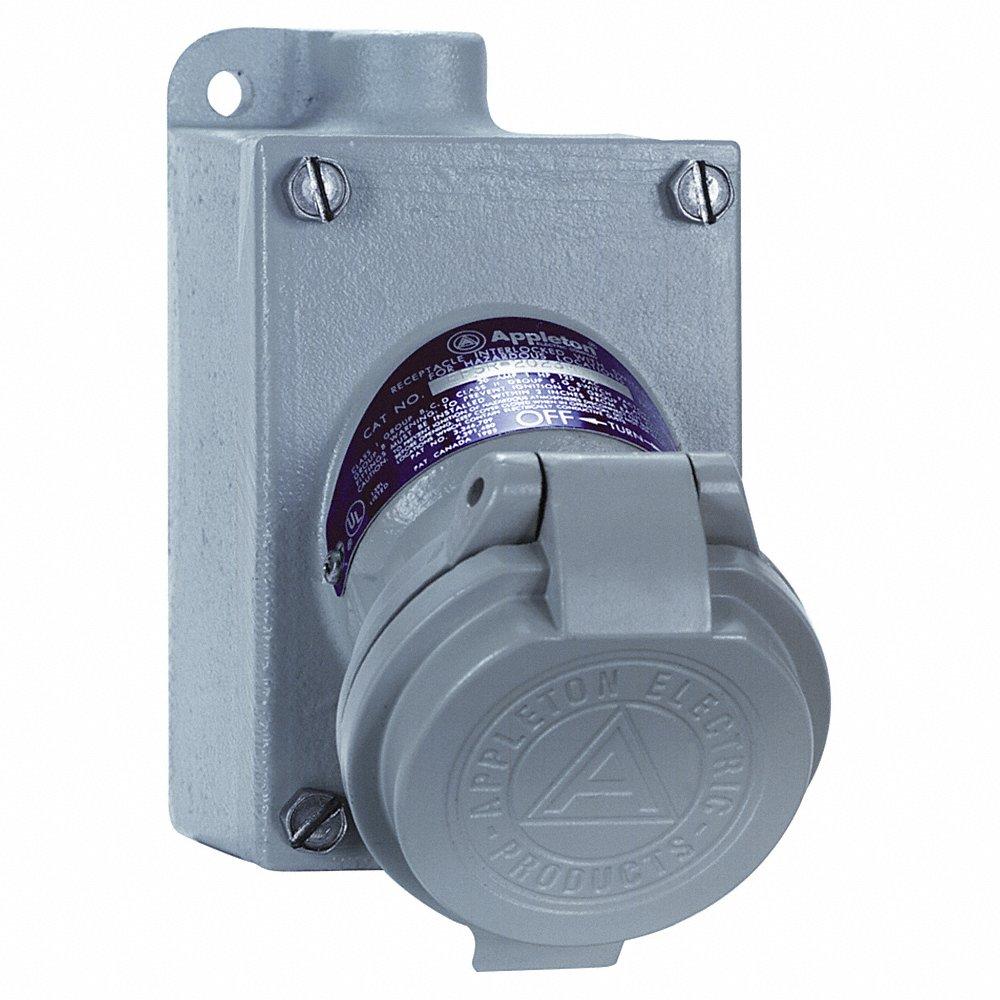

CPS152-201 | 3.0 | 125-250V AC/18V DC | 3/4" | Dead End | 20A | 2 | 1 hp | No | €1,359.58 | |
|
CPS152-202GFI | 3.0 | 125-250V AC/18V DC | 3/4" | Dead End | 20A | 2 | 1 hp | No | €4,326.95 | |
|
CPS152-211 | 3.0 | 125-250V AC/18V DC | 3/4" | Feed Thru | 20A | 2 | 1 hp | No | €1,346.20 |
