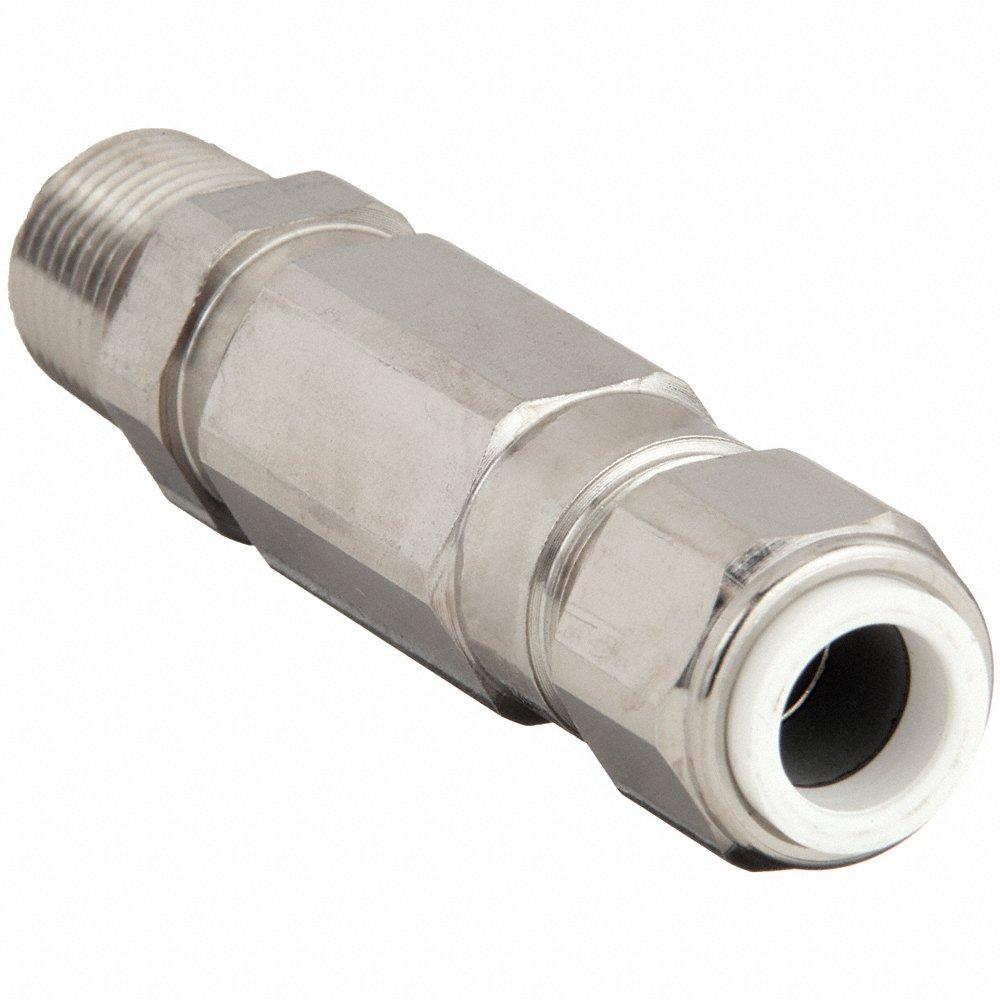

APPLETON ELECTRIC 20ST30505 Cord Connector, 1/2 Inch MNPT, 0.24 to 0.46 Inch Cord Dia., Silver, Brass, 1 Cord
Item: AA2FHTModel: 20ST30505Cross Ref: 10G152
7 In Stock
Ships within 2 days via
10.00% off
€204.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cord Connector |
| Body Color | Silver |
| Body Color - Cord Connector | Silver |
| Body Material | Brass |
| Box Connection | 1/2" MNPT |
| Collar Material | Brass |
| Color | Silver |
| Compatible Conduit Trade Size | 1/2" |
| Connection Orientation | Straight |
| Cord Dia. (in.) | 0.24" to 0.46" |
| Cord Dia. (in.) | 0.24 to 0.46 |
| Cord Dia. Range | 0.24" to 0.46" |
| Environmental Rating | Hazardous Locations |
| Finish | Nickel Plated |
| For Maximum Cable Od | 0.46" |
| For Min. Cable Od | 6/25" |
| For Minimum Cable Od | 0.24" |
| For Use With | Armored Cable |
| Gland Color Code | No Code |
| Grommet Color Code | No Code |
| Hazardous Location Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups E, F, G, Class III, Division 2 |
| Hazardous Location Rating - Europe | AEX E IIC, AEX NR II, Class I, EX D IIC, EX E IIC, EX II 2 GD, EX NR IIC, Zone 1, Zone 1, 2, 21, 22 |
| Hub Size | 1/2" |
| Insulated | No |
| Ip Rating | IP66 |
| Length | 2 13/25" |
| Length - Box To End Of Connector | 2 3/4" |
| Length - External Strain Relief | 3 3/32" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Male/female | Male |
| Material | Brass |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 266°F |
| Min. Throat Dia. | 15 mm |
| Min. Throat Dia. (in.) | 15mm |
| Minimum Operating Temperature | -76°F |
| Number Of Cords | 1 |
| Product Datasheet | appleton-electric-100t35.pdf |
| Sealing Ring Material | Thermoplastic Elastomer |
| Strain Relief Type | No External Strain Relief |
| Style | Straight |
| Thread Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.3 |
| HS code | 8536694020 |
| Country of Origin | UK |
Documentation:
Product Variants
| Product | Model | Cord Dia. Range | Conduit Size | Cord Dia. (in.) | Material | Color | Liquid Tight / Dust Tight | Male/female | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2016A2F0505 | 0.13" to 0.34" | - | 0.13" to 0.34" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €81.88 | |
 |
20A2F0505 | 0.26" to 0.55" | - | 0.24" to 0.46" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €91.15 | |
 |
20SA2F0505 | 0.24" to 0.46" | - | 0.26" to 0.55" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €82.37 | |
|
25A2F0755 | 0.44" to 0.79" | 3/4" | 0.44" to 0.79" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €96.93 | |
|
32A2F1005 | 0.67" to 1.04" | - | 0.67" to 1.04" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €178.31 | |
|
40A2F1255 | 0.93" to 1.27" | 1 1/4" | 0.93" to 1.27" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €245.23 | |
|
50SA2F1505 | 1.22" to 1.5" | 1 1/2" | 1.22" to 1.5" | Brass | Silver | Liquid Tight | Male | Nickel Plated | €374.03 |
