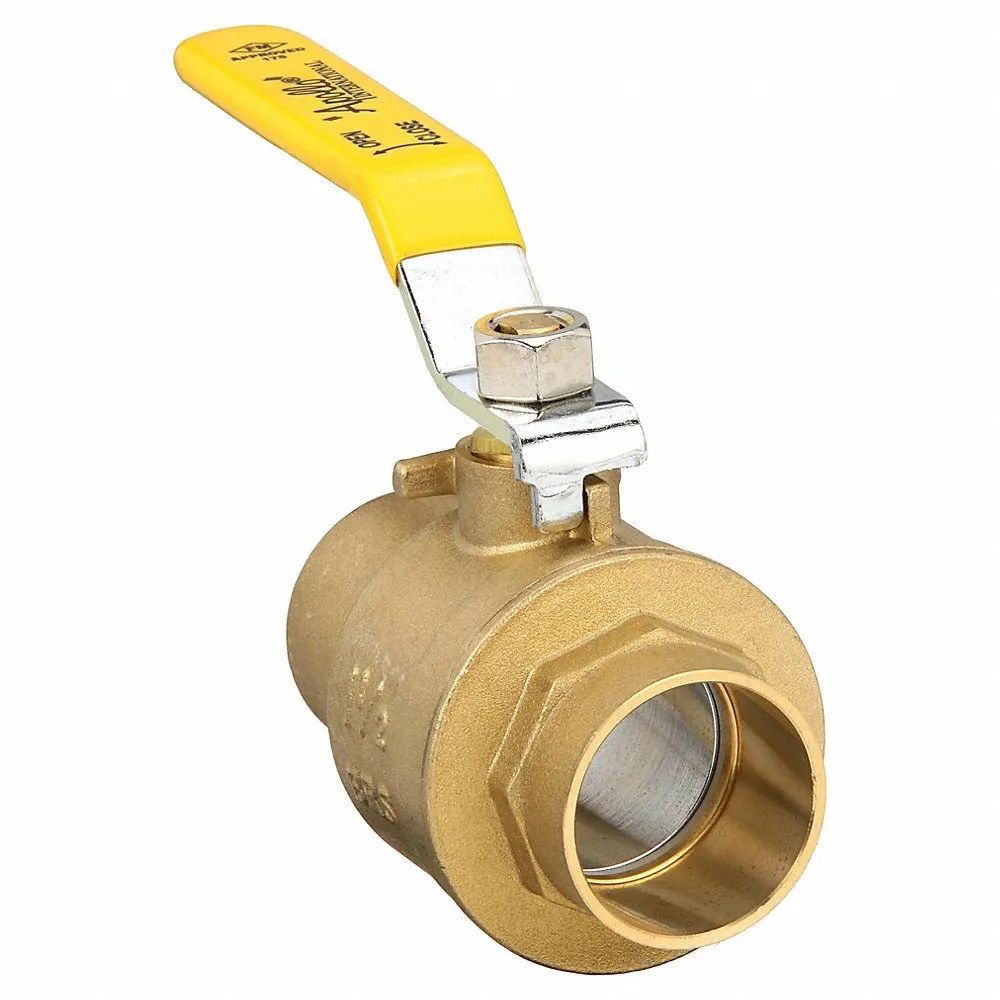

APOLLO VALVES 94A20701 Ball Valve, 1 1/2 in Tube, Full, 600 psi CWP, 0 to 400 Deg. F, Lever Handle, Sweat, Sweat x Sweat
Item: AA9CZRModel: 94A20701Cross Ref: 1CKE5
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0 |
| Color | Brass |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | Solder |
| Connection Type - Side 1 | Sweat |
| Connection Type - Side 2 | Sweat |
| Dimensions | 7 1/2" x 2 3/4" x 4 1/2" |
| Finish | Chrome Plated |
| For Media | Combustible Gases |
| Grease-free | No |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Finish | Corrosion Resistant Plating |
| Handle Height | 3.17" |
| Handle Length | 5.51" |
| Handle Material | PVC, Steel |
| Handle Type | Lever |
| Housing Construction | 2-Part |
| Manufacturer Warranty | 2 yrs. |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Media Temp. Range | 0°F to 400°F |
| Medically Clean | No |
| Meets Ul Flammable Gas And Liquid Standards | UL 125, UL 842, UL 1477 |
| Nominal Valve Size | 1 1/2" |
| Overall Length | 4.43" |
| Port Type | Full |
| Product Datasheet | apollo-valves-94a20701.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Series | 94A Series Ball Valves |
| Shape | Straight |
| Size | 1 1/2" |
| Spindle Material | Brass |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +400°F |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 94A |
| With Filter | No |
Shipping Info:
| Ship weight (kg) | 0.98 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 6.99 |
| HS code | 8481801085 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Connection Type | Handle Material | Overall Length | Max. Operating Pressure | Ball Finish | Body Material | Seat Material | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
94A10101 | FNPT | PVC, Steel | 1.76" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €16.77 | |
 |
94A10201 | FNPT | PVC, Steel | 1.76" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €15.02 | |
 |
94A10301 | FNPT | PVC, Steel | 2.05" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €16.84 | |
 |
94A10401 | FNPT | PVC, Steel | 2.36" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €22.78 | |
|
94A10501 | FNPT | - | 2.76" | 600 psi | - | Brass | PTFE | Brass | €35.63 | |
|
94A10601 | FNPT | PVC, Steel | 3.31" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €56.76 | |
 |
94A10701 | FNPT | PVC, Steel | 3.66" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €82.73 |
