APOLLO VALVES 86B20424 Stainless Steel Fire Safe Ball Valve Socket 3/4 In
Item: AC8WCLModel: 86B20424Cross Ref: 3EFE2
7 In Stock
Ships within 2 days via
10.00% off
€524.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fire Safe Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Body Style | Inline |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume | 51 |
| Color | Silver, Yellow |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | Butt Weld |
| Connection Type - Side 1 | Butt Weld |
| Connection Type - Side 2 | Butt Weld |
| Dimensions | 8.9" x 3.84" x 6.62" |
| Finish | None |
| For Media | Air, Natural Gas |
| Grade | Grade 300, Grade 316 |
| Grease-free | No |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Material | Stainless Steel |
| Handle Type | Lever Locking |
| Housing Construction | 3-Part |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 1440 psi CWP |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 1440 psi |
| Max. Steam Pressure | 250 psi |
| Media Temperature Range | -50°F to +500°F |
| Medically Clean | No |
| Nominal Valve Size | 3/4" |
| Overall Length | 7.37" |
| Pipe Schedule Compatibility | Schedule 40 |
| Port Type | Full |
| Product Datasheet | apollo-valves-86b20424.pdf |
| Seal Material | PTFE |
| Seat Material | MPTFE |
| Series | 86 Series Ball Valves |
| Shape | Straight |
| Size | 3/4" |
| Special Features | Drain Port |
| Spindle Material | Stainless steel |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | -50°F to +500°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Silver |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | 86 Series |
| With Filter | No |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 22.61 |
| Ship width (cm) | 9.75 |
| HS code | 8481803070 |
| Country of Origin | US |
Product Details:

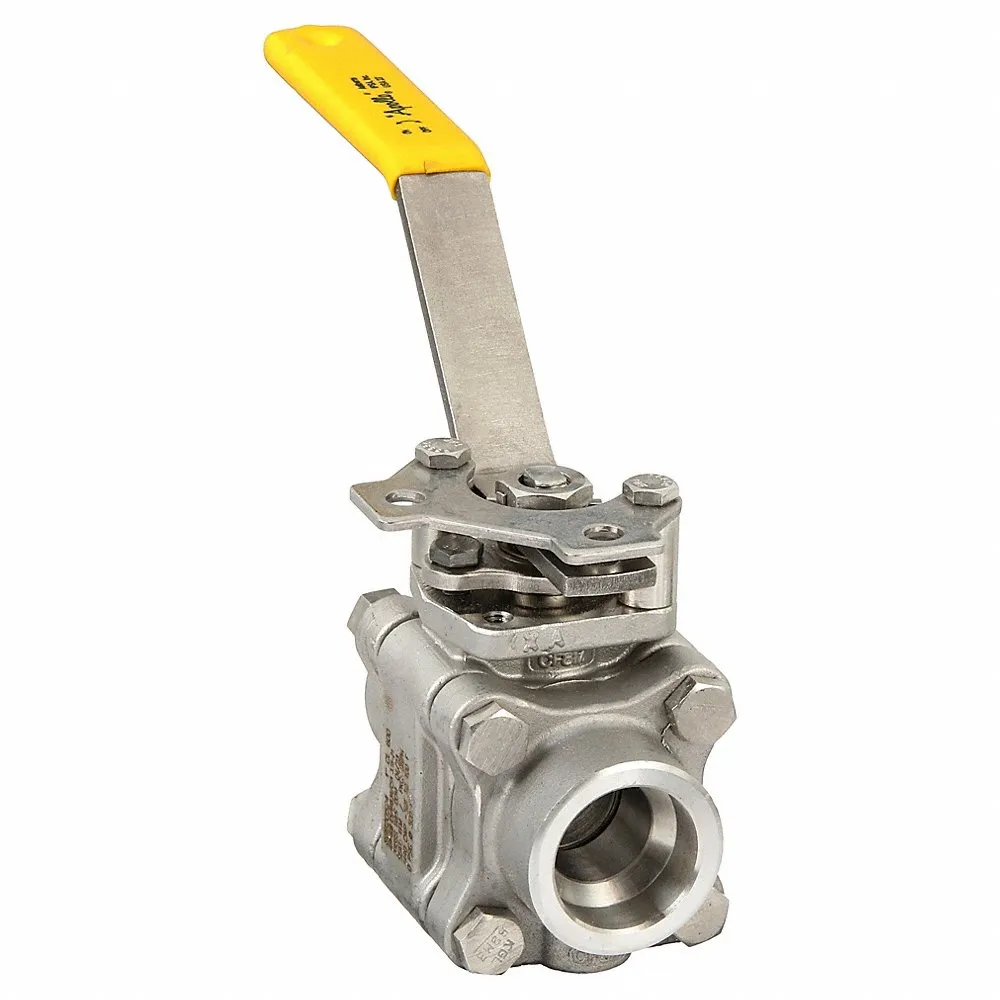

- Apollo 86B-204-24 is a stainless-steel inline ball valve with a maximum saturated steam operating pressure of 250 psi, ideal for maintaining tight shut-off conditions during fire incidents.
- It features three-piece construction with enclosed fasteners and a pressure-balanced ball valve assembly within a unitary cage to limit axial movement.
- This fire-safe ball valve further comes equipped with a graphite packing and compression-controlled gaskets to provide a spring action for preventing external leakages under drastic temperature and pressure fluctuations (max. 500 deg F & 1440 psi WOG).
Documentation:
Product Variants
| Product | Model | Coefficient Of Volume | Overall Length | Body Material | Connection Type | Max. Pressure | Max. Steam Pressure | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
86B20524 | 68 | 8.62" | Stainless Steel | Butt Weld | 1440 psi CWP | 250 psi | Stainless Steel | MPTFE | €687.43 |
