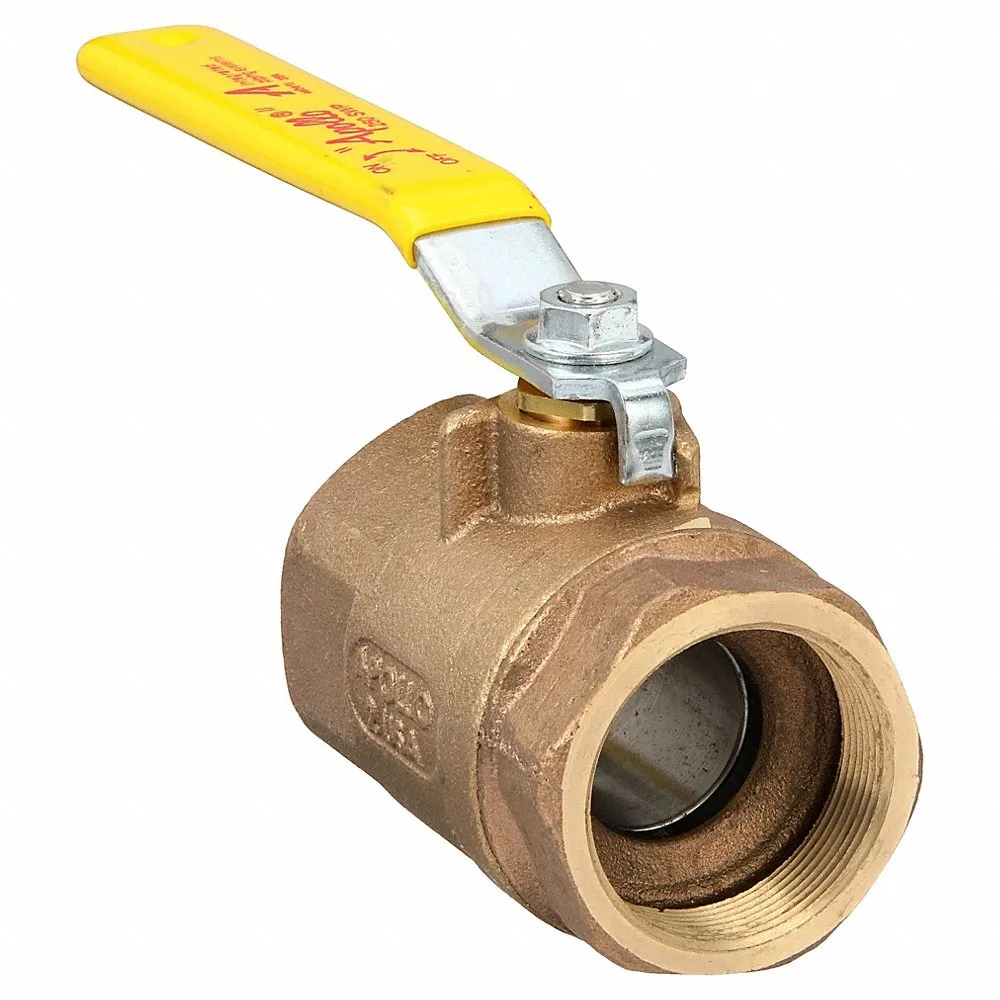

APOLLO VALVES 7014864 Bronze 2 Pcs Ball Valve with 250# Steam Trim 2 Inch Size, 2 x FNPT, 7.14 x 1.43 x 2.29 Inch Size
Item: AE4UDMModel: 7014864Cross Ref: 5MU34
7 In Stock
Ships within 2 days via
10.00% off
€438.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Bronze , Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D-1 | 2.99 |
| D1 | 2.38 |
| D2 | 2.38 |
| Dimensions | 7.14" x 1.43" x 2.29" |
| E | 1.12 |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| Handgrip Length | 1" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Finish | Zinc Plated |
| Handle Length | 7 3/4" |
| Handle Material | Zinc Plated Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.9" |
| Housing Construction | 2-Part |
| Length Of Connection 1 | 2.35" |
| Length Of Connection 2 | 2.32" |
| M1 | 1 |
| M2 | 7.75 |
| Manufacturer Warranty | 5 yrs. |
| Max. Medium Temp. | 500°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Steam Pressure | 250 psi |
| Media Temperature Range | -20°F to +500°F |
| Medically Clean | No |
| Medium Temp. (continuous) | -20.002°F to +500°F |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 2" |
| Outer Pipe Dia. Connection 1 | 2.38" |
| Outer Pipe Dia. Connection 2 | 2.38" |
| Overall Length | 4.5" |
| Port Type | Standard |
| Product Datasheet | apollo-valves-7010310.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 70 Series Ball Valves |
| Shape | Straight |
| Size | 2" |
| Spindle Material | Stainless steel |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | -20°F to +500°F |
| U | 1.31 |
| V | 2.37 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 70 Series |
| With Filter | No |
| With Thermometer | No |
| Working Length Connection 1 | 1.75" |
| Working Length Connection 2 | 1.73" |
| Y | 0.9 |
| Z1 | 1.75 |
| Z2 | 1.73 |
Shipping Info:
| Ship weight (kg) | 2.65 |
| Ship height (cm) | 5.82 |
| Ship length (cm) | 18.14 |
| Ship width (cm) | 3.63 |
| HS code | 8481801085 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Seat Material | Seal Material | Overall Length | Color | Temp. Range | Max. Temp. | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7014164 | FNPT | PTFE | PTFE | 2" | Yellow, Bronze | -20°F to +500°F | - | - | €82.43 | |
 |
7014264 | FNPT | PTFE | PTFE | 2" | Yellow, Bronze | -20°F to +500°F | - | - | €92.17 | |
 |
7014364 | FNPT | PTFE | PTFE | 2.25" | Yellow, Bronze | -20°F to +500°F | - | - | €91.54 | |
 |
7014464 | FNPT | PTFE | PTFE | 3" | Yellow, Bronze | -20°F to +500°F | - | - | €138.79 | |
 |
7014564 | FNPT | PTFE | PTFE | 3.25" | Yellow, Bronze | -20°F to +500°F | - | - | €178.72 | |
 |
7014664 | FNPT | PTFE | PTFE | 4" | Yellow, Bronze | -20°F to +500°F | - | - | €272.71 | |
 |
7014764 | FNPT | PTFE | PTFE | 4.25" | Yellow, Bronze | -20°F to +500°F | - | - | €345.48 |
