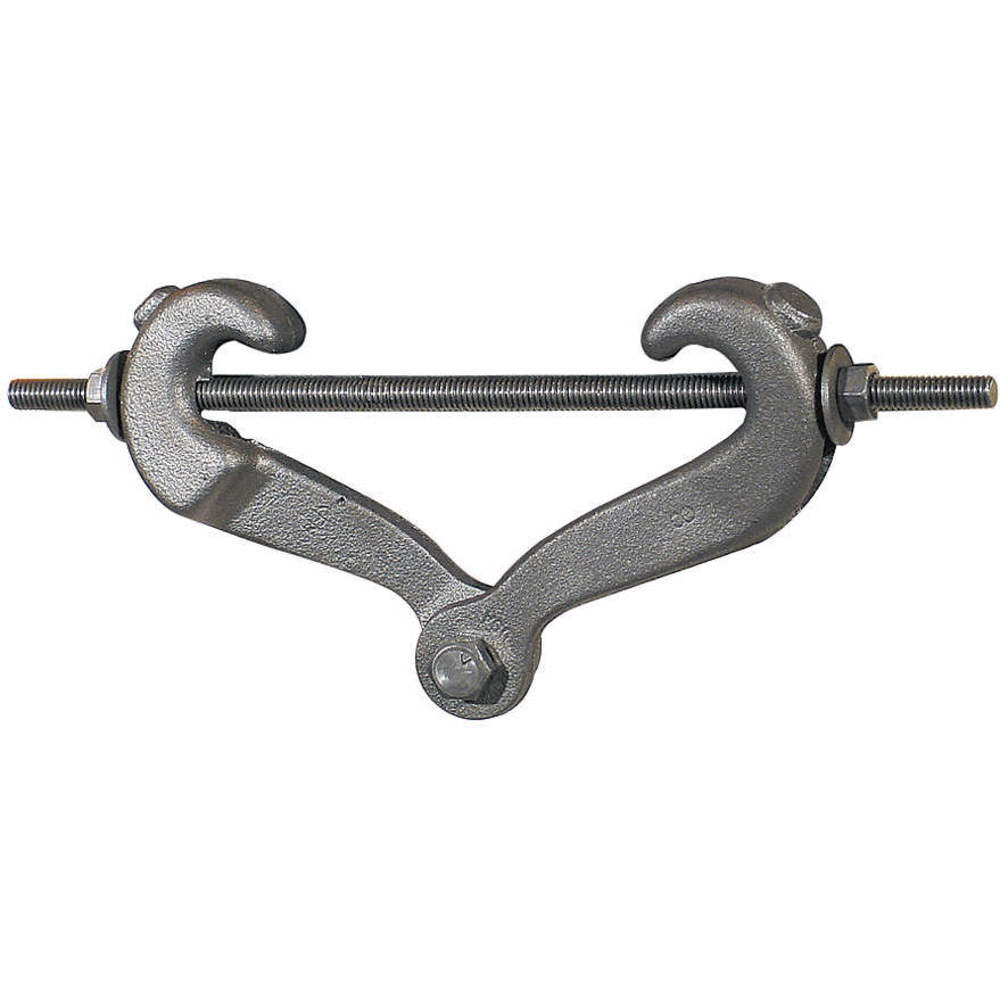

ANVIL 0500095401 Malleable Beam Clamp, Black
Item: AD8DBVModel: 0500095401Cross Ref: 4HYR2
7 In Stock
Ships within 2 days via
10.00% off
€77.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Beam Clamp |
| Beam Clamp Type | Tong Style |
| Beam Mount Location | Bottom Center |
| Beam Width | 2-3/8 to 7" |
| Bolt Diameter | 7/16" |
| Clamp Length | 2.38" |
| Clamp Material | Malleable Iron |
| Features | Hanger Rod Can Swing From Vertical Providing Flexibility At The Beam Clamp, Proper Fit For All Beam Sizes |
| For Beam Shape/type | H-Beam |
| For Maximum Beam Width | 7" |
| For Minimum Beam Width | 2 3/8" |
| For Threaded Rod Size | 7/8" |
| Includes | Nuts, Washer |
| Includes Locknut | Yes |
| Load Capacity | 1365 lbs. |
| Material | Malleable Iron |
| Metal Detectable | Yes |
| Type | Without Extension |
Shipping Info:
| Ship weight (kg) | 0.98 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 12.45 |
| HS code | 7325995000 |
| Country of Origin | US |
Product Details:
- Special Features: For Attachment To Structural Steel. Use In Conjunction With Beams Where Beam Widths Are From 2 3/8" Minimum To 7" Maximum And Flange Thickness Does Not Exceed 0.60"
Product Variants
| Model | Load Capacity | Material | Type | Beam Mount Location | Clamp Length | For Threaded Rod Size | For Beam Shape/type | For Maximum Beam Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0500007422 | 440 lbs. | Malleable Iron | C | Bottom | 2" | 5/8" | H-Beam | - | €16.59 | |
| 0500007430 | 500 lbs. | Malleable Iron | C | Bottom | 2" | 3/4" | H-Beam | - | €21.88 | |
| 0500008008 | 400 lbs. | Malleable Iron | C | Bottom | 1.75" | 3/8" | H-Beam | 3/4" | €8.35 | |
| 0500008016 | 400 lbs. | Malleable Iron | C | Bottom | 1.75" | 1/2" | H-Beam | 3/4" | €9.94 | |
| 0500305016 | 440 lbs. | Steel | C | Bottom | 1.75" | 1/2" | H-Beam | 3/4" | €12.12 | |
| 0500343207 | 1365 lbs. | Malleable Iron | - | - | - | - | - | - | €63.90 |
