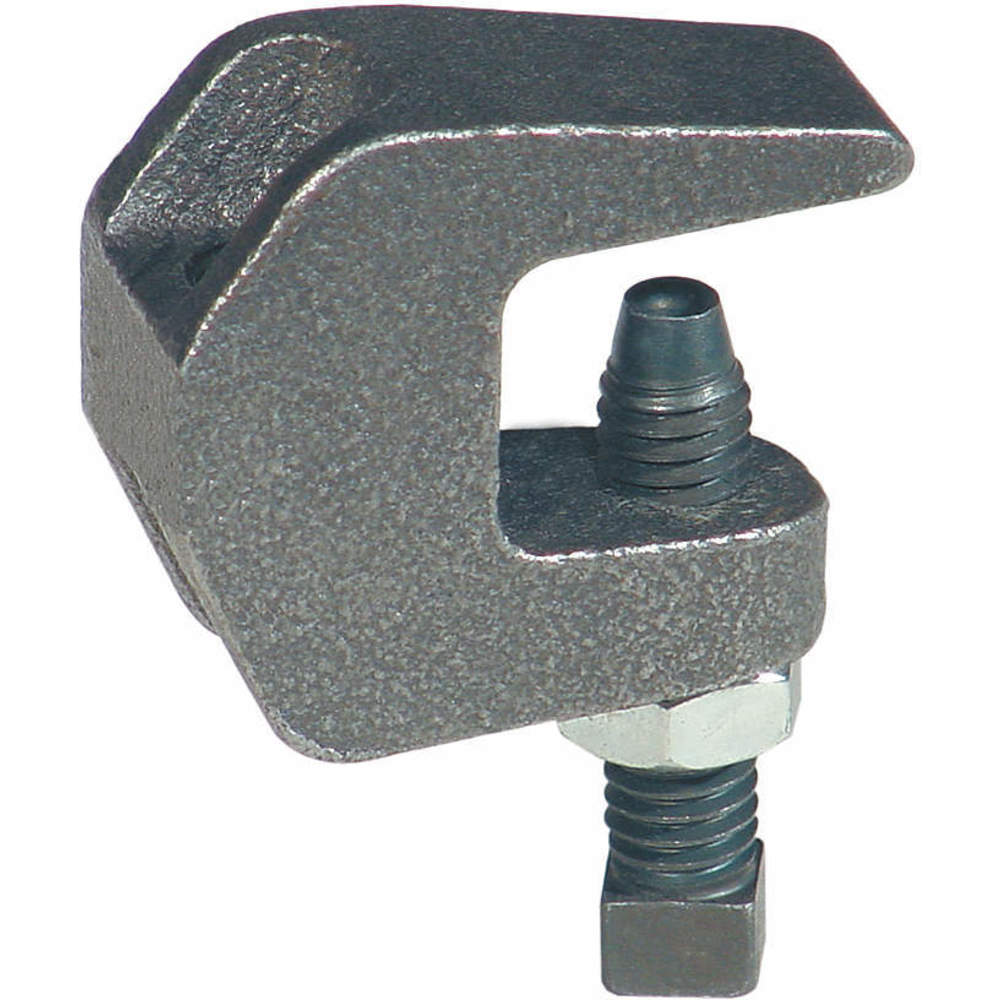

ANVIL 0500009063 Universal C-type Clamp, Standard Throat, 3/8 Inch Rod Size
Item: AD8CYLModel: 0500009063Cross Ref: 4HYE5
7 In Stock
Ships within 2 days via
10.00% off
€4.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Beam Clamp |
| Beam Clamp Type | C-Clamp |
| Beam Mount Location | Top, Bottom |
| Clamp Length | 1.81" |
| Clamp Material | Ductile Iron |
| Clamp Material Finish | Galvanized |
| Clamp Width | 0.81" |
| Finish | Plain |
| For Beam Shape/type | H-Beam |
| For Threaded Rod Size | 3/8" |
| Includes | Jam Nut, Lock Nut, Set Screw |
| Includes Locknut | Yes |
| Installation Torque | 60 lbs.-in. |
| Length | 1.562" |
| Load Capacity | 500 lbs. |
| Material | Ductile Cast Iron |
| Metal Detectable | Yes |
| Product Datasheet | anvil-0500009071.pdf |
| Rod Size | 3/8" |
| Thread Size | 3/8"-16 |
| Throat Depth | 3/4" |
| Type | C |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 4.57 |
| HS code | 7325995000 |
| Country of Origin | US |
Product Details:
- Special Features: For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4"
Documentation:
Product Variants
| Product | Model | Clamp Width | Clamp Length | For Threaded Rod Size | Installation Torque | Type | For Beam Shape/type | Beam Mount Location | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0560009078 | 1.06" | 2.13" | 1/2" | 125 lbs.-in. | C | H-Beam | Top, Bottom | 500 lbs. | €7.26 |
