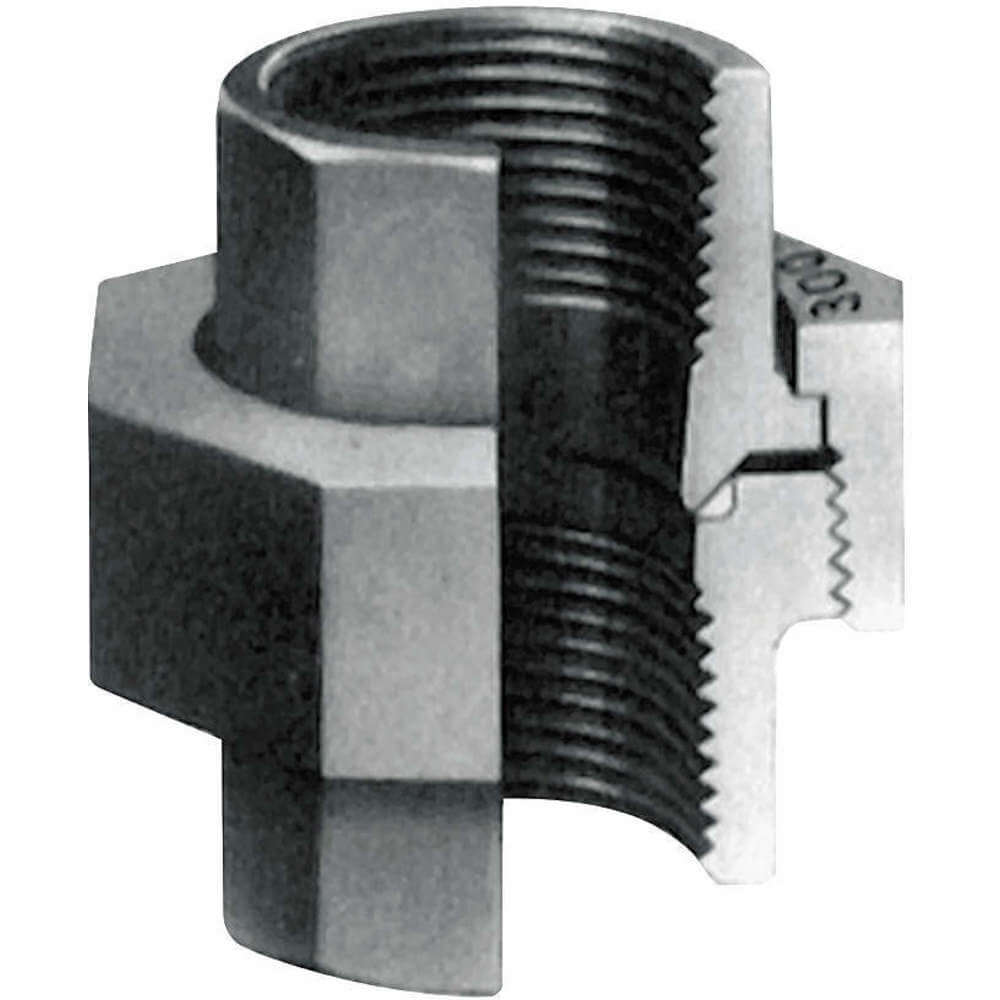

ANVIL 0312822786 Class 300 Union, 2 1/2 Inch Nominal pipe Size, Black Finish
Item: AA4DJJModel: 0312822786Cross Ref: 12G109
7 In Stock
Ships within 2 days via
10.00% off
€472.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
| Basic Fitting Shape | Union |
| Body Material | Malleable Iron |
| Class | Class 300 |
| Color | Black |
| Connection Type | FNPT |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 2 1/2" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 2 1/2" |
| Fitting Side B Type | NPT |
| For Pipe Schedule | 80 |
| Hex Size | 3 1/4" |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 600 psi @ 150°F |
| Maximum Operating Pressure | 1000 psi @ 150°F |
| Pipe Fitting Material | Malleable Iron |
| Pipe Size | 2 1/2" |
| Product Datasheet | anvil-0313822603.pdf |
| Saturated Steam Pressure | 230 psi |
| Specific Fitting Shape | Union |
| Standards | Aar Approved, Asme B16.3, Fm Approved, Ul Listed |
| Temp. Range | -20°F to +150°F |
Shipping Info:
| Ship weight (kg) | 2.72 |
| Ship height (cm) | 3.78 |
| Ship length (cm) | 9.86 |
| Ship width (cm) | 6.3 |
| HS code | 7307199030 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Hex Size | Basic Fitting Shape | Connection Type | Class | Saturated Steam Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0312822604 | 1/8" | 1/8" | 1/8" | 0.312" | Union | FNPT | Class 300 | 230 psi | €70.70 | |
| 0312822620 | 1/4" | 1/4" | 1/4" | 7/8" | Union | FNPT | Class 300 | 230 psi | €64.11 | |
| 0312822646 | 3/8" | 3/8" | 3/8" | 0.688" | Union | FNPT | Class 300 | 230 psi | €64.87 | |
| 0312822661 | 1/2" | 1/2" | 1/2" | 0.938" | Union | FNPT | Class 300 | 230 psi | €55.51 | |
| 0312822687 | 3/4" | 3/4" | 3/4" | - | Union | FNPT | Class 300 | 230 psi | €60.06 | |
| 0312822703 | 1" | 1" | 1" | - | Union | FNPT | Class 300 | 230 psi | €77.81 | |
| 0312822729 | 1 1/4" | 1 1/4" | 1 1/4" | 1.688" | Union | FNPT | Class 300 | 230 psi | €122.63 |
