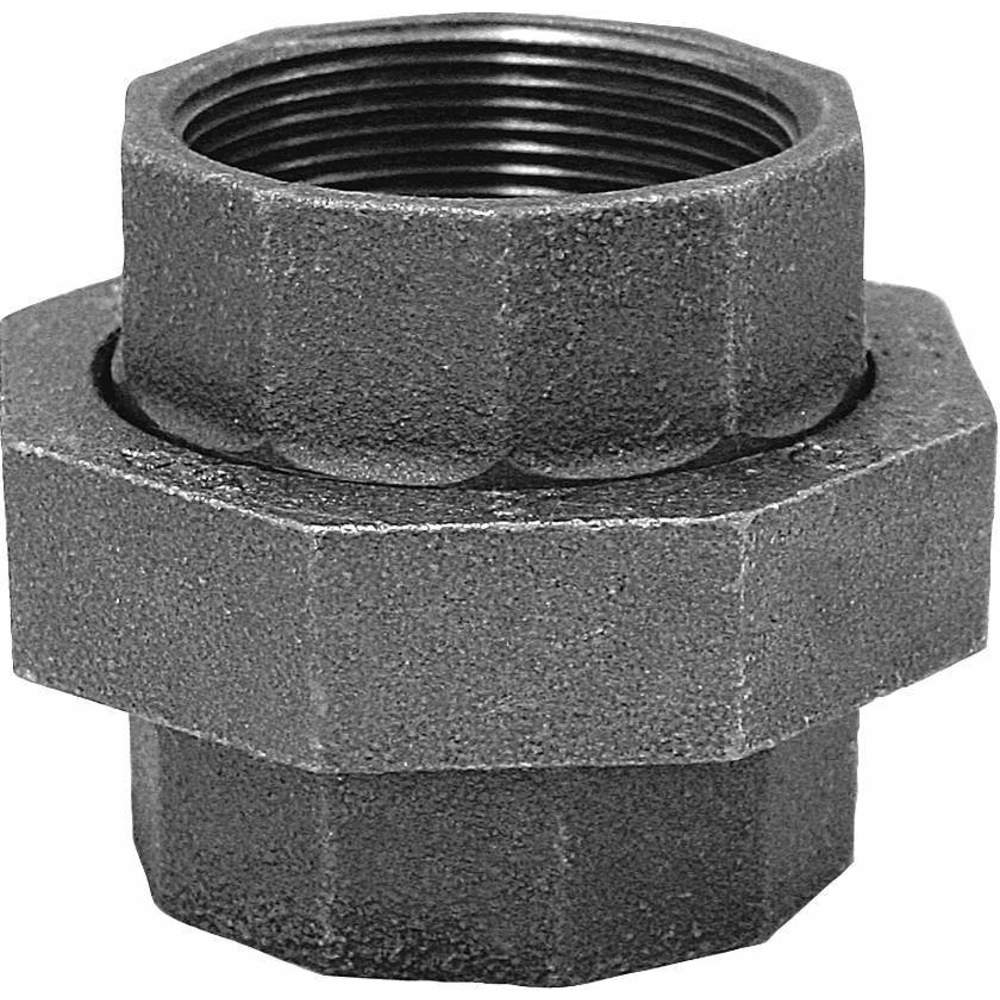

ANVIL 0312822067 Class 150 Union, 1/2 Inch Nominal pipe Size, Black Finish
Item: AE2CKLModel: 0312822067Cross Ref: 4WJT3
7 In Stock
Ships within 2 days via
10.00% off
€24.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
| Basic Fitting Shape | Union |
| Body Material | Malleable Iron |
| Class | Class 150 |
| Color | Black |
| Connection Type | FNPT |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1/2" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1/2" |
| Fitting Side B Type | NPT |
| For Pipe Schedule | 40 |
| Hex Size | 0.938" |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 300 psi @ 150°F |
| Maximum Operating Pressure | 300 psi @ 150°F |
| Pipe Fitting Material | Malleable Iron |
| Pipe Size | 1/2" |
| Product Datasheet | anvil-0312822000.pdf |
| Saturated Steam Pressure | 150 psi |
| Specific Fitting Shape | Union |
| Standards | Ansi B1.20.1, Asme B16.11, Astm A105 |
| Temp. Range | -20°F to +150°F |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 3.78 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 6.3 |
| HS code | 7307193060 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Hex Size | Basic Fitting Shape | Connection Type | Class | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0312822000 | 1/8" | 1/8" | 1/8" | 0.312" | Union | FNPT | Class 150 | -20°F to +150°F | €46.90 | |
| 0312822026 | 1/4" | 1/4" | 1/4" | 0.312" | Union | FNPT | Class 150 | -20°F to +150°F | €44.31 | |
| 0312822042 | 3/8" | 3/8" | 3/8" | 0.688" | Union | FNPT | Class 150 | -20°F to +150°F | €31.00 | |
| 0312822083 | 3/4" | 3/4" | 3/4" | - | Union | FNPT | Class 150 | -20°F to +150°F | €31.51 | |
| 0312822109 | 3/4" x 1/2" | 3/4" | 1/2" | 1.187" | Union | FNPT | Class 150 | -20°F to +150°F | €55.24 | |
| 0312822125 | 1" | 1" | 1" | 1.187" | Union | FNPT | Class 150 | -20°F to +150°F | €40.83 | |
| 0312822141 | 1 1/4" | 1 1/4" | 1 1/4" | 1.688" | Union | FNPT | Class 150 | -20°F to +150°F | €60.66 |
