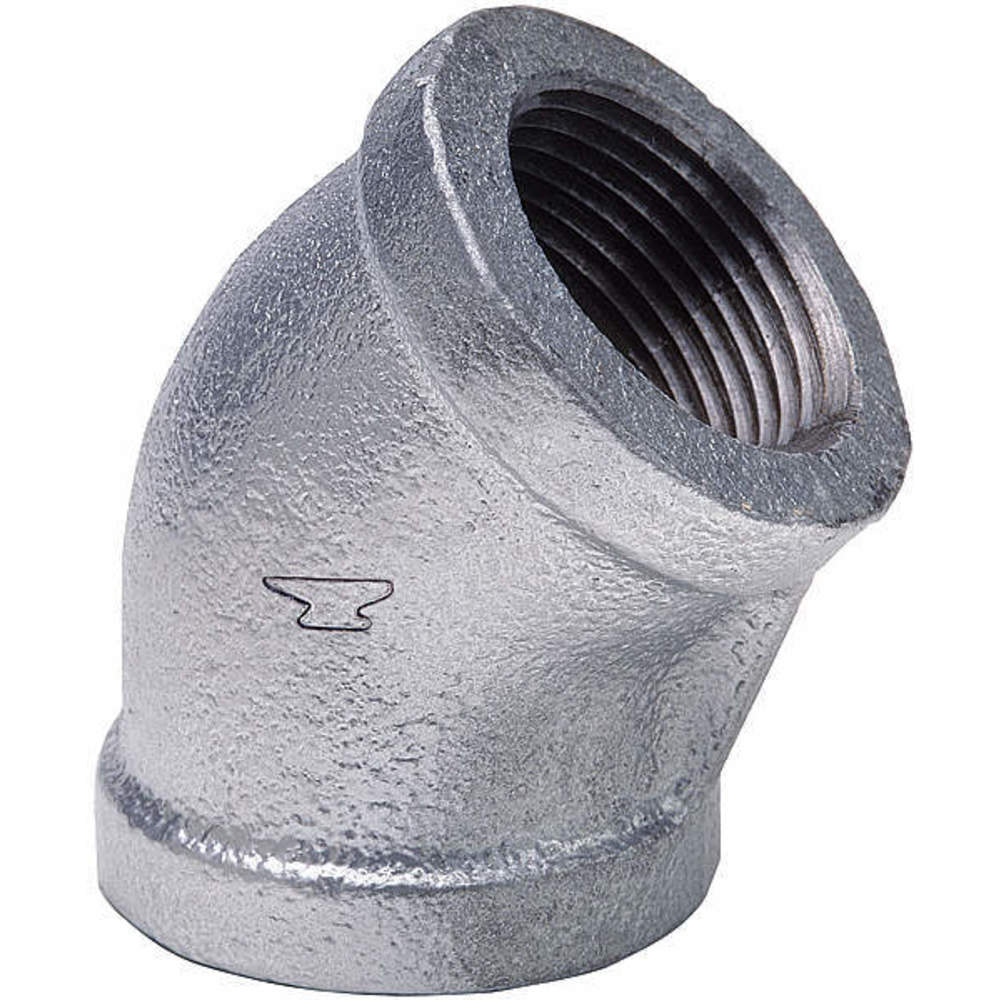

ANVIL 0311023402 Elbow, 45 Degree, Standard, Class 150, 1/2 Size, Galvanized Finish
Item: AF8EGAModel: 0311023402Cross Ref: 25CF34
7 In Stock
Ships within 2 days via
10.00% off
€10.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Elbow, 45 Degrees |
| Application | Air, Non-Potable Water, Oil |
| Basic Fitting Shape | Elbow |
| Body Material | Steel |
| Class | Class 150 |
| Color | Silver |
| Connection Type | FNPT |
| Finish | Galvanized |
| Finish/coating | Galvanized |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1/2" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1/2" |
| Fitting Side B Type | NPT |
| For Pipe Schedule | 40 |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 300 psi @ 150°F WOG |
| Maximum Operating Pressure | 300 psi @ 150°F |
| Pipe Fitting Material | Malleable Iron |
| Pipe Size | 1/2" |
| Product Datasheet | anvil-0310025408.pdf |
| Saturated Steam Pressure | 150 psi |
| Specific Fitting Angle | 45° |
| Specific Fitting Shape | Elbow |
| Standards | Asme B16.3, Astm A197, Fm Approved, Ul Listed |
| Temp. Range | -20°F to +150°F |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.57 |
| HS code | 7307199090 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Temp. Range | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Basic Fitting Shape | Connection Type | Class | Application | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0311022800 | -20°F to +150°F | 1/8" | 1/8" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €17.72 | |
| 0311023006 | -20°F to +150°F | 1/4" | 1/4" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €15.29 | |
| 0311023204 | -20°F to +150°F | 3/8" | 3/8" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €17.04 | |
| 0311023600 | -20°F to +150°F | 3/4" | 3/4" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €16.47 | |
| 0311023808 | -20°F to +150°F | 1" | 1" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €18.60 | |
| 0311024004 | -20°F to +150°F | 1 1/4" | 1 1/4" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €34.19 | |
| 0311024202 | -20°F to +150°F | 1 1/2" | 1 1/2" | Elbow | FNPT | Class 150 | Air, Non-Potable Water, Oil | Steel | €38.70 |
