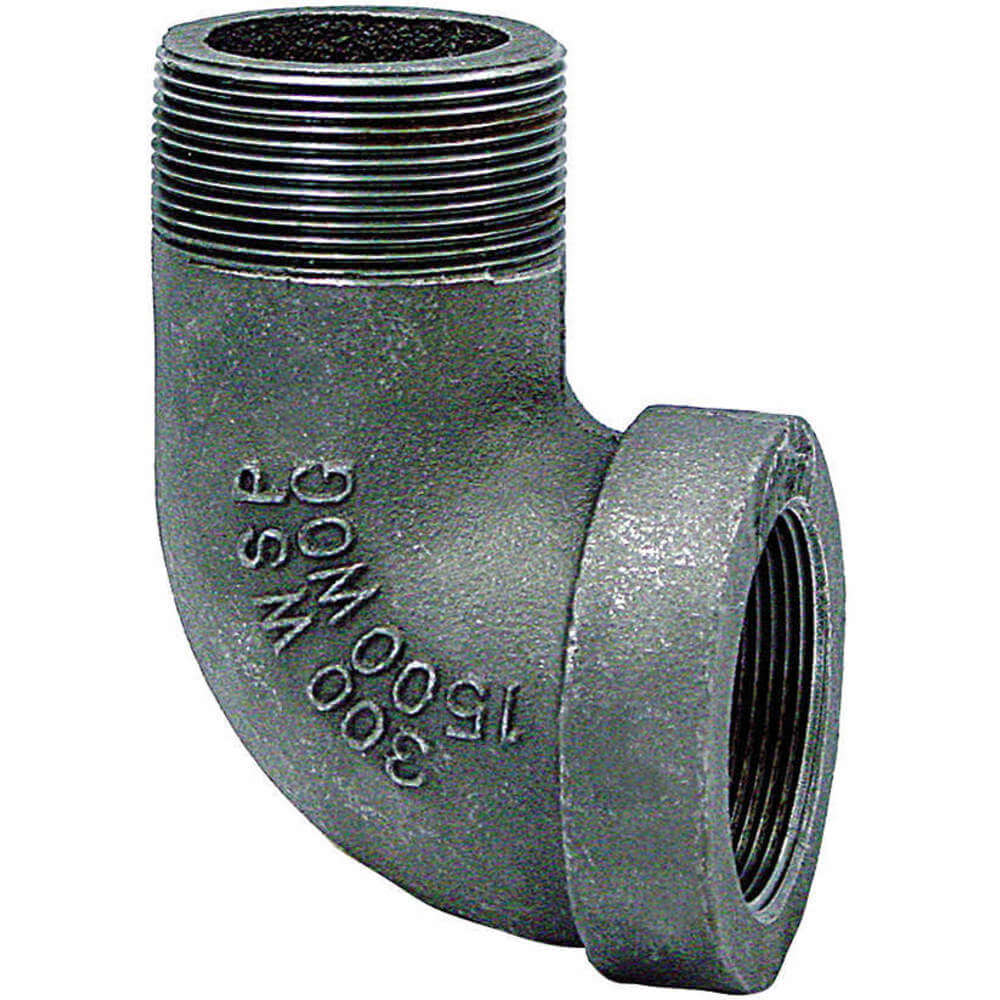

ANVIL 0310508403 Street Elbow, 90 Degree, Black, 1 1/4 Inch Nominal Pipe Size
Item: AA4DEUModel: 0310508403Cross Ref: 12G025
7 In Stock
Ships within 2 days via
10.00% off
€93.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Street Elbow, 90 Degrees |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
| Basic Fitting Shape | Elbow |
| Body Material | Malleable Iron |
| Class | Class 300 |
| Color | Black |
| Connection Type | FNPT x MNPT |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1 1/4" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Male |
| Fitting Side B Nominal Pipe Size | 1 1/4" |
| Fitting Side B Type | NPT |
| For Pipe Schedule | 80 |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 1500 psi @ 150°F |
| Maximum Operating Pressure | 1500 psi @ 150°F |
| Pipe Fitting Material | Malleable Iron |
| Pipe Size | 1 1/4" |
| Product Datasheet | anvil-0310514203.pdf |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Street Elbow |
| Standards | Asme B16.3, Astm A197, Fm Approved, Ul Listed |
| Temp. Range | -20°F to +150°F |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 7.62 |
| HS code | 7307199060 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Connection Type | Class | Basic Fitting Shape | Temp. Range | Fitting Side A Gender | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0310507405 | 1/4" | 1/4" | 1/4" | FNPT x MNPT | Class 300 | Elbow | -20°F to +150°F | Female | €35.08 | |
| 0310507603 | - | 3/8" | 3/8" | FNPT x MNPT | Class 300 | Elbow | -20°F to +150°F | Female | €39.29 | |
| 0310507801 | 1/2" | 1/2" | 1/2" | FNPT x MNPT | Class 300 | Elbow | -20°F to +150°F | Female | €48.34 | |
| 0310508007 | 3/4" | - | - | FNPT x MNPT | Class 300 | - | -20°F to +150°F | - | €64.58 | |
| 0310508205 | 1" | 1" | 1" | FNPT x MNPT | Class 300 | Elbow | -20°F to +150°F | Female | €75.54 | |
| 0310508601 | 1 1/2" | 1 1/2" | 1 1/2" | FNPT x MNPT | Class 300 | Elbow | -20°F to +150°F | Female | €118.28 | |
| 0310508809 | 2" | 2" | 2" | FNPT x MNPT | Class 300 | Elbow | -20°F to +150°F | Female | €196.84 |
