AMETEK LAMB 116565-13 AC Vacuum Motor, Tangential, 1250 W, 5.7 Frame Size, 3 Stage, 120 V
Item: AD8TJRModel: 116565-13Cross Ref: 4M923
7 In Stock
Ships within 2 days via
5.00% off
€292.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Average Life | 500 hrs. |
| Bearing Type | Ball |
| Blower Stages | 3 |
| Body Dia. | 5.7" |
| Cfm @ 2-in Orifice | 99 CFM |
| Cfm @ 2-in. Orifice | 99 CFM |
| Discharge | Tangential |
| Duty Cycle | Intermittent |
| Flow Class | Standard Flow |
| Frame | Non Standard |
| Frame Size | 5.7" |
| Frequency | 50/60 Hz |
| Full Load Amps | 10.4A |
| Inlet Tube Dia. | 1 7/8" |
| Insulation Class | Class A |
| Max. Air Watts | 368 W |
| Max. Ambient Temp. | 40°C |
| Max. Amps | 10.7A |
| Motor Application | Universal Ac, Dc Motor |
| Motor Bearings | Ball |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor Thermal Protection | None |
| Motor Type | Traditional Lamb |
| Mounting Bracket Material | Aluminum |
| Mounting Brackets | Thermoset |
| Nameplate Speed | 22200 RPM |
| No. Of Speeds | 1 |
| Overall Height | 5 25/32" |
| Overall Length | 7 13/16" |
| Phase | 1 |
| Power Level | 1250 W |
| Replacement Brush Kit | 833392-67 |
| Replacement Brushes | 41RD41 |
| Speed Control | Not Applicable |
| Thermal Protection | Not Applicable |
| Vacuum | 117.4 |
| Vacuum (h2o Sealed) | 117.4 |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 14.68 |
| Ship length (cm) | 19.84 |
| Ship width (cm) | 19.24 |
| HS code | 8414596095 |
| Country of Origin | MX |
Product Details:
- Motor/Blower Type (Bypass)
Product Variants
| Model | Cfm @ 2-in Orifice | Max. Air Watts | Max. Amps | Full Load Amps | Mounting Brackets | Nameplate Speed | Replacement Brush Kit | Power Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

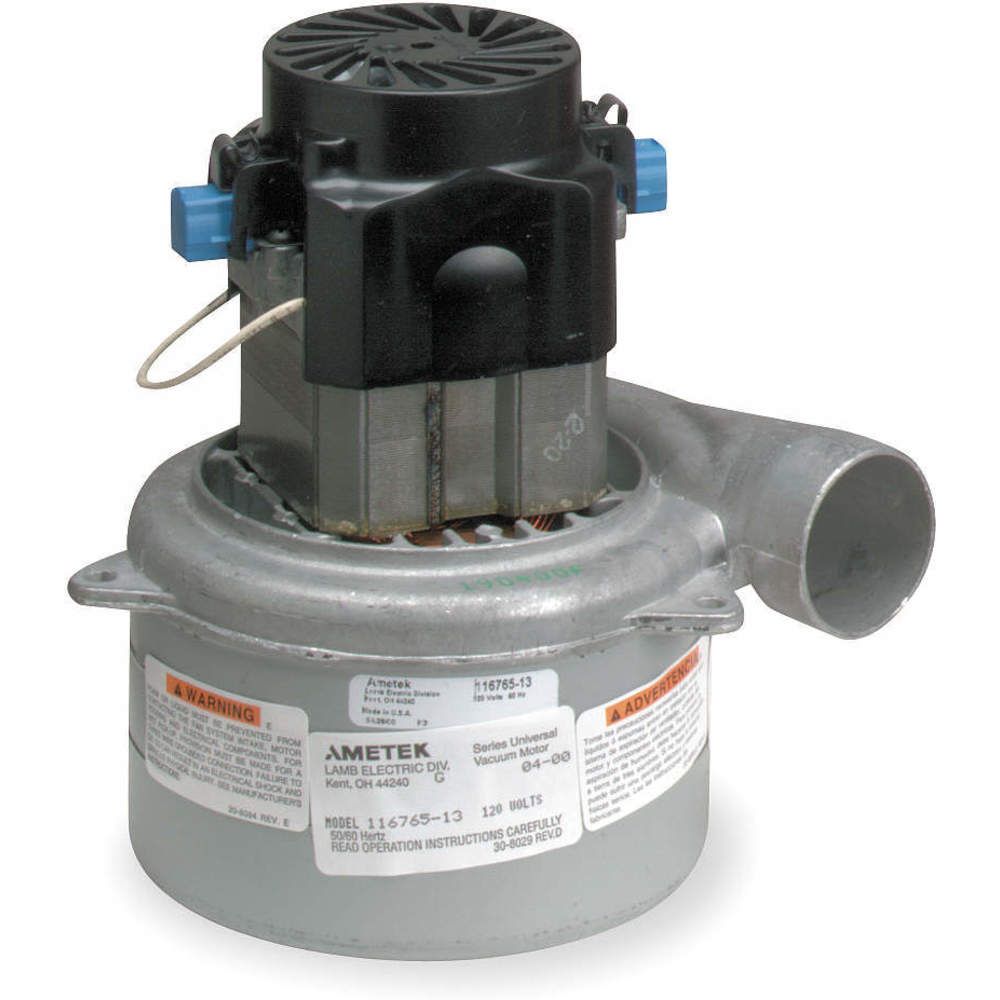

| 116765-13 | 95.3 CFM | 465 W | 13.1A | 12.6A | Metal | 25312 RPM | 833423-77 | 1500 W | €327.89 | |
| 116765-00 | 95.3 CFM | 465 W | 13.1A | 12.6A | Metal | 25312 RPM | 833423-77 | 1500 W | €335.78 | |
| 116565-29 | 99 CFM | 368 W | 10.7A | 10.4A | Thermoset | 22200 RPM | 833392-67 | 1250 W | €333.55 |
