AMETEK LAMB 116309-00 AC Vacuum Motor, Thru-Flow, 750 W, 5.7 Frame Size, 1 Stage, 120 V
Item: AC2QMLModel: 116309-00Cross Ref: 2M194
7 In Stock
Ships within 2 days via
5.00% off
€150.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Average Life | 500 hrs. |
| Bearing Type | Ball, Sleeve |
| Blower Stages | 1 |
| Body Dia. | 5.7" |
| Cfm @ 2-in Orifice | 112 CFM |
| Cfm @ 2-in. Orifice | 112 CFM |
| Discharge | Thru Flow |
| Duty Cycle | Intermittent |
| Efficiency Group | Standard |
| Flow Class | Standard Flow |
| Frame | Non Standard |
| Frame Size | 5.7" |
| Frequency | 50/60 Hz |
| Full Load Amps | 6.6A |
| Insulation Class | Class A |
| Max. Air Watts | 190 W |
| Max. Ambient Temp. | 40°C |
| Max. Amps | 6.8A |
| Motor Application | Universal Ac, Dc Motor |
| Motor Bearings | Ball, Sleeve |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor Thermal Protection | None |
| Motor Type | Traditional Lamb |
| Motor/blower Type | Thru Flow |
| Mounting Bracket Material | Aluminum |
| Mounting Brackets | Metal |
| Nameplate Speed | 26870 RPM |
| No. Of Speeds | 1 |
| Overall Height | 4 1/2" |
| Overall Length | 4 1/2" |
| Phase | 1 |
| Power Level | 750 W |
| Replacement Brush Kit | 833400-63 |
| Replacement Brushes | Mfr. No. 33400-13 |
| Speed Control | Not Applicable |
| Thermal Protection | Not Applicable |
| Vacuum | 63 |
| Vacuum (h2o Sealed) | 63 |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 1.55 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 14.48 |
| HS code | 8414596095 |
| Country of Origin | MX |
Product Details:
- Motor/Blower Type (Thru-Flow)
Product Variants
| Product | Model | Voltage | Cfm @ 2-in Orifice | Max. Air Watts | Overall Height | Body Dia. | Replacement Brush Kit | Motor Type | Power Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

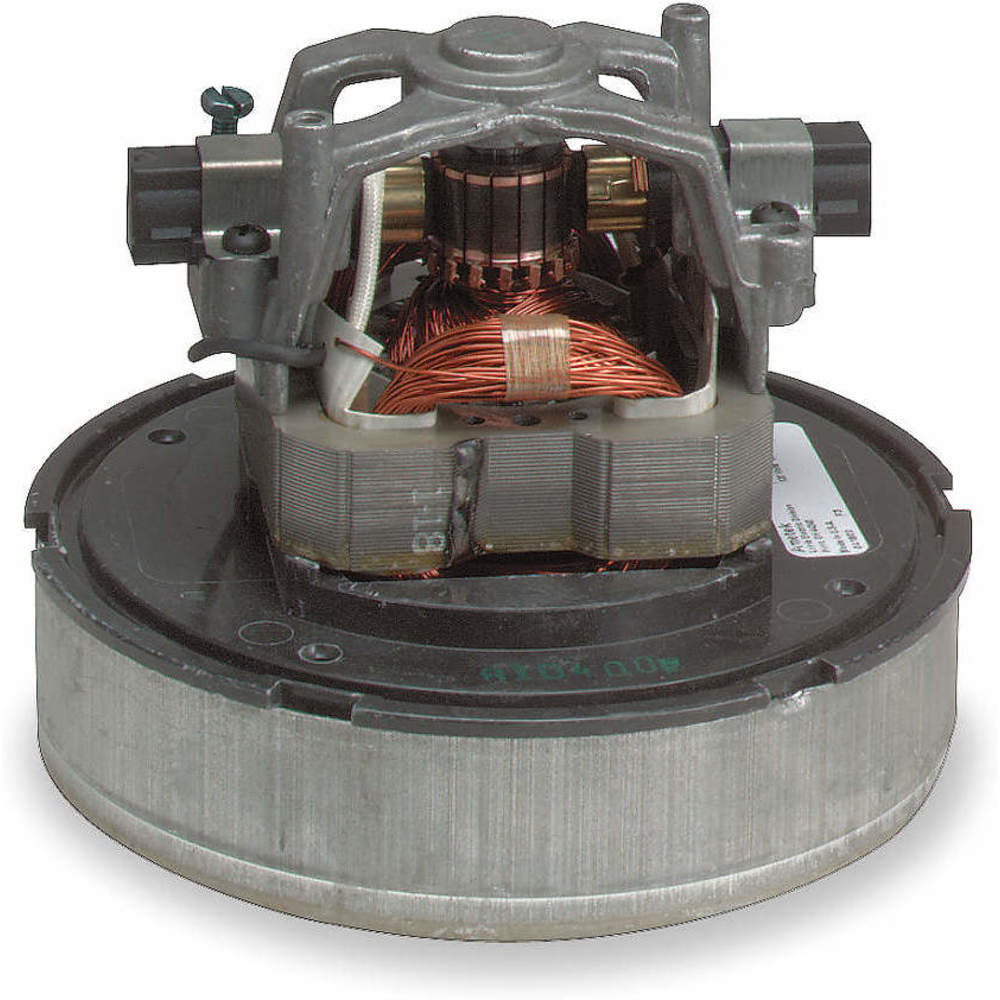

116297-00 | 120V AC | 123 CFM | 227 W | 4 9/16" | - | 833400-52 | Traditional Lamb | 700 W | €159.39 | |
 |
119347-00 | 120V AC | 147.3 CFM | 489 W | 4 3/4" | 5.7" | 833326-51 | Air Watt Series | 1250 W | €175.78 | |
|
119400-00 | 120V AC | 113.5 CFM | 214 W | 4 1/2" | 5.7" | 833474-50 | Economy | 775 W | €129.69 | |
|
119411-00 | 120V AC | 112 CFM | 190 W | 4 3/8" | 5.7" | 833474-50 | Economy | 750 W | €158.92 | |
|
116881-50 | 120V AC | 112 CFM | 190 W | 4 9/16" | 5 5/7" | 833400-63 | Traditional Lamb | 750 W | €136.91 | |
|
122752-07 | 120V | - | - | - | - | 833445-67 | Air Watt Series | 825 W | €118.94 |
