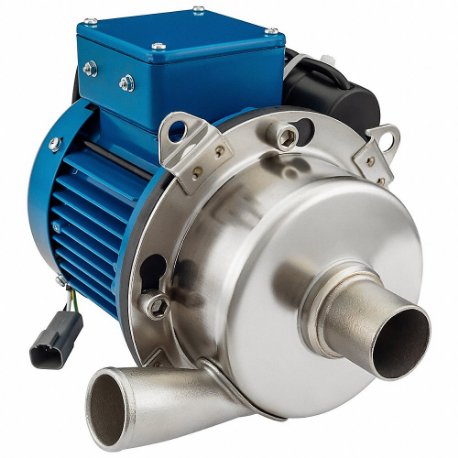

AMERICAN STAINLESS PUMPS FDP1AL Centrifugal Pump, 1 hp, 115/230VAC, 64 ft
Get it by Tuesday, Sep 1
13.00% off
€767.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Best Efficiency Flow | 37 GPM |
| Best Efficiency Head | 62 ft. |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Connection Type | Barbed |
| Cord Length | 1 ft. |
| Cord Type | Amphenol Plug |
| Discharge Type | Barbed |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 120 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 160 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 200 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (max.) | Not Applicable |
| Flow Rate @ 300 Ft Of Head (max.) | Not Applicable |
| For Use With Potable Systems | Yes |
| Frequency | 60 Hz |
| Height | 7 3/5" |
| Housing Material | Stainless Steel |
| Hp | 1 hp |
| Hp-pumps | 1 hp |
| Impeller Material | Stainless Steel |
| Inlet Pressure | 10 psi |
| Installation Position | Horizontal |
| Intake Type | Barbed |
| Length | 10 4/5" |
| Max. Case Pressure | 50 psi |
| Max. Feet Of Head | 64 ft. |
| Max. Flow Rate @ 1 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 10 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 100 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 15 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 20 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 30 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 40 Ft Of Head | 53 GPM |
| Max. Flow Rate @ 40 Ft. | 53 GPM |
| Max. Flow Rate @ 5 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 50 Ft Of Head | 35 GPM |
| Max. Flow Rate @ 50 Ft. | 35 GPM |
| Max. Flow Rate @ 60 Ft Of Head | 14 GPM |
| Max. Flow Rate @ 60 Ft. | 14 GPM |
| Max. Flow Rate @ 70 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 80 Ft Of Head | Not Applicable |
| Max. Flow Rate @ 90 Ft Of Head | Not Applicable |
| Max. Head | 64 ft. |
| Max. Specific Gravity | 1 |
| Max. Speed @ 5° | 3500 RPM |
| Max. Suction Lift | 24 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Mounting Orientation | Horizontal |
| Npshr | 10 psi |
| Outlet Type | Barbed |
| Overall Height | 7 3/5" |
| Overall Length | 10 4/5" |
| Overall Width | 6.7" |
| Overload Protection | Auto |
| Overload Thermal Protection | No |
| Phase | 1 |
| Priming | Manual |
| Pump Housing Material | Stainless Steel |
| Required Net Positive Suction Head | 10 psi |
| Seal Material | Buna N, Carbon Ceramic |
| Self Priming | Manual |
| Series | FDP Series |
| Specific Gravity | 1 |
| Speed | 3500 RPM |
| Thermal Protection | No |
| Voltage | 115/230V AC |
| Wetted Material | Stainless Steel |
| Width | 6.7" |
Shipping Info:
| Ship weight (kg) | 11.45 |
| Ship height (cm) | 19.3 |
| Ship length (cm) | 27.43 |
| Ship width (cm) | 17.02 |
Product Variants
| Product | Model | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Speed | Height | Max. Speed @ 5° | Overall Width | Overall Height | Outlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FDP1AH | 1 1/2" | 1 1/2" | 3420 RPM | 7 3/5" | 3420 RPM | 6.7" | 7 3/5" | Barbed | €695.68 | |
 |
FDP3AH | 1 1/4" | 1" | 3420 RPM | 6 4/5" | 3420 RPM | 6.7" | 6 4/5" | NPT | €706.63 | |
 |
FDP5AL | 1 1/4" | 1" | 3420 RPM | 7.7" | 3420 RPM | 6 4/5" | 7.7" | NPT | €706.63 | |
 |
FDP2AH | 1 1/2" | 1 1/2" | 3420 RPM | 9" | 3420 RPM | 6.7" | 9" | Barbed | €936.78 |
