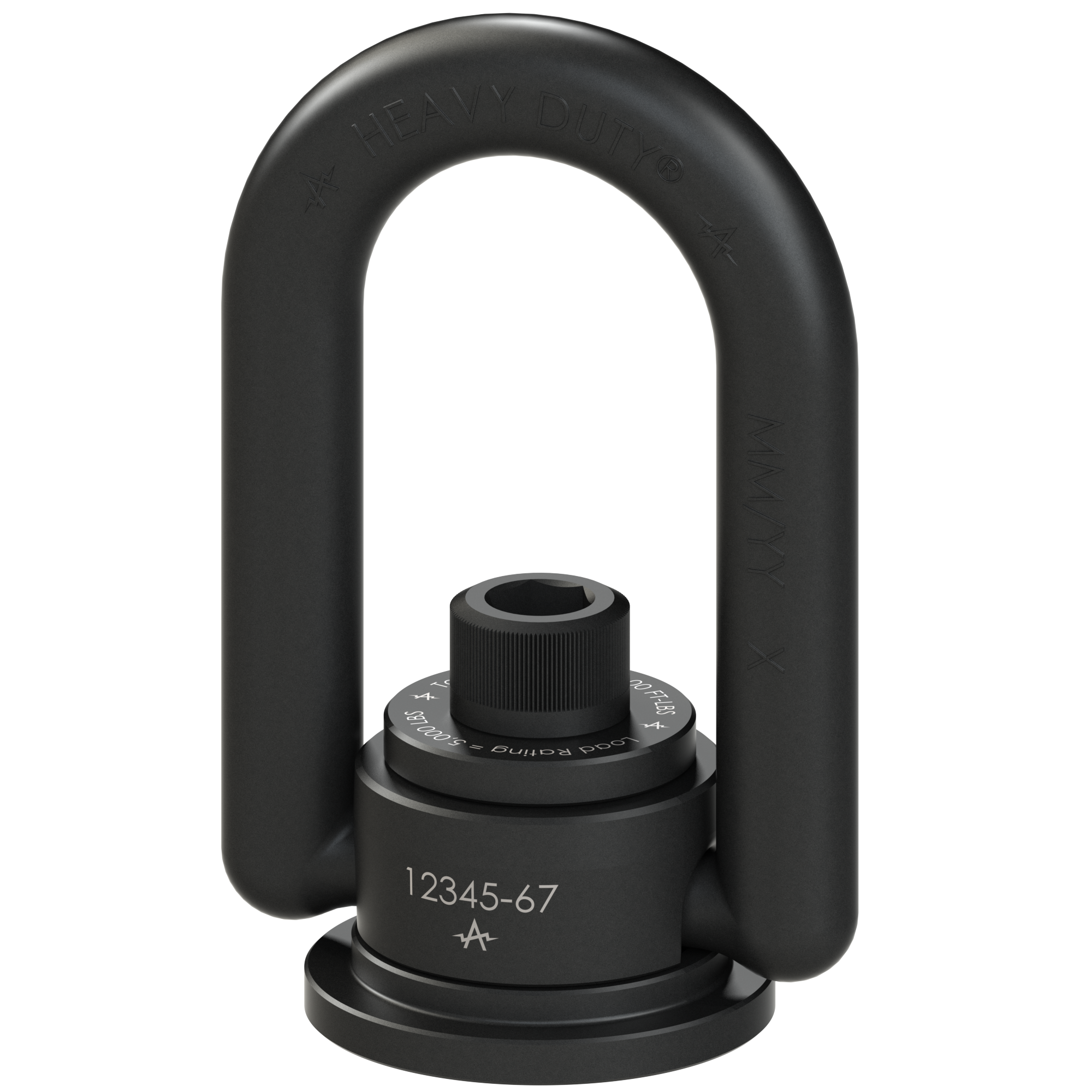

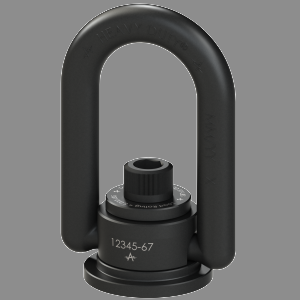

ADB HOIST RINGS MFG. 36640 Hoist Ring, 5000 Lbs. Load Capacity, 3.5 Inch Width, 180 Pivot, Alloy Steel
Get it by Tuesday, Feb 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€177.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Inside Length | 2 1/2" |
| Bail Inside Width | 2" |
| Bail Thickness | 3/4" |
| Color | Black |
| Finish | Black Oxide |
| Grade | Grade 4140 |
| Hardware Included | Removable Bolt |
| Hoist Ring Type | Pivot, Swivel |
| Load Capacity | 5000 lbs. |
| Material | Alloy Steel |
| Maximum Operating Temperature | 400°F |
| Minimum Installation Torque | 100 lbs.-ft. |
| Minimum Operating Temperature | -20°F |
| Mount Type | Screw On |
| Operation | Lifting, Pulling |
| Overall Length | 5 1/2" |
| Overall Width | 3 1/2" |
| Pivot | 180° |
| Pivot Angle | 180° |
| Plate Diameter | 2.45" |
| Plate Thickness | 1/4" |
| Rotate Angle | 360° |
| Standards | Astm E1444 |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Size | 5/8"-11 |
| Usable Thread Length | 1 5/8" |
| Working Load Limit | 5000 lbs. |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 13.87 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Features:
- Material:?Forged and Machined High Strength Alloy Steel
- Design Factor:?5:1, Magnetic Particle Inspected Per ASTM E1444. Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis
- Range of Movement:?Swivel 360?, Pivot 180? Under Load
- Finish:?Black Oxide
- All dimensions approximate ??variations do not effect use or design factor.
