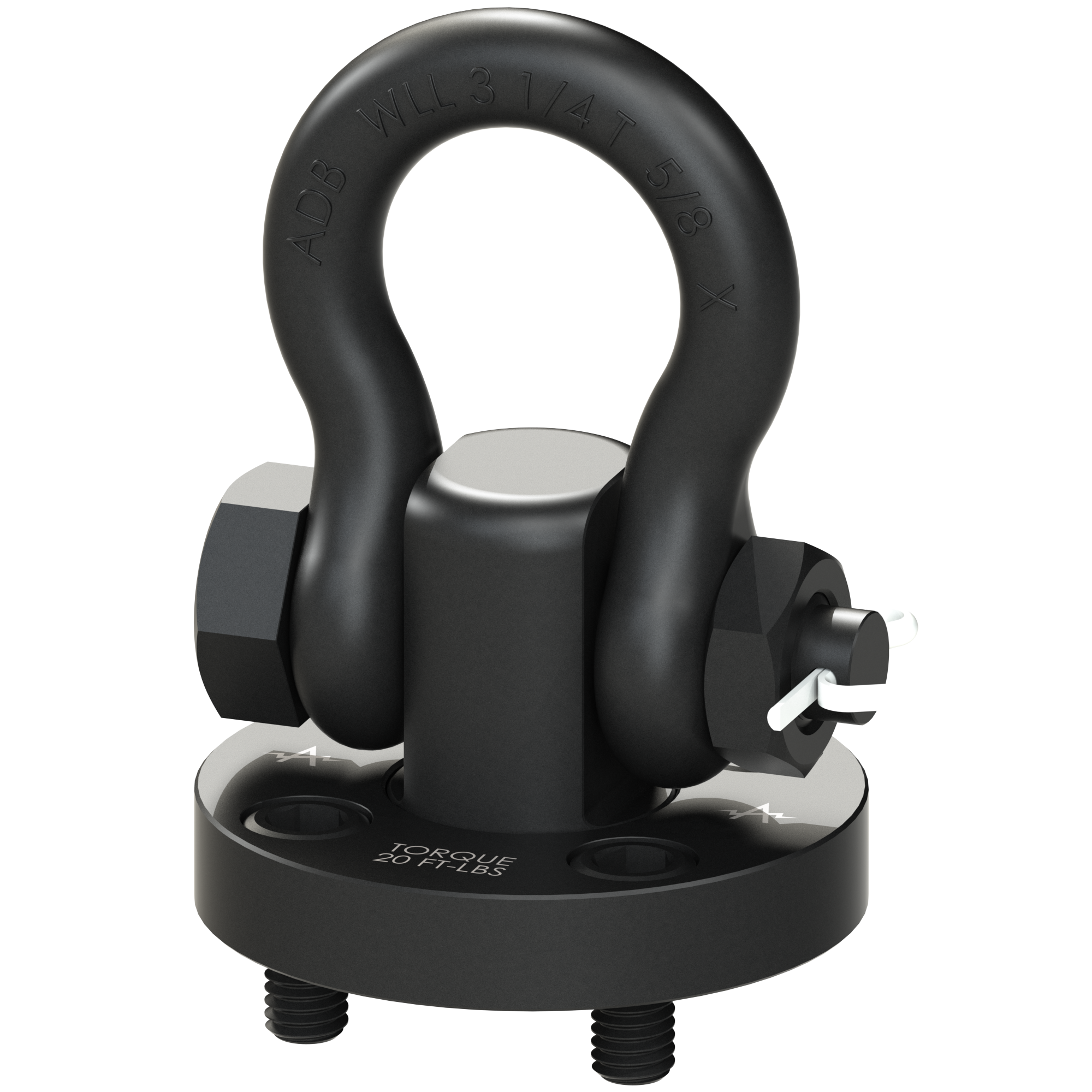

ADB HOIST RINGS MFG. 36520 Hoist Ring, 3000 Lbs. Load Capacity, 2.51 Inch Width, Alloy Steel, Black Oxide
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€244.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Inside Length | 1 3/8" |
| Bail Inside Width | 1 1/8" |
| Bail Thickness | 7/16" |
| Color | Black |
| Finish | Black Oxide |
| Grade | Grade 4140 |
| Hardware Included | Removable Bolt |
| Hoist Ring Type | Pivot, Swivel |
| Load Capacity | 3000 lbs. |
| Material | Alloy Steel |
| Maximum Operating Temperature | 400°F |
| Minimum Installation Torque | 7 lbs.-ft. |
| Minimum Operating Temperature | -20°F |
| Mount Type | Screw-On, Weld-On |
| Operation | Lifting, Pulling |
| Overall Length | 2 1/2" |
| Overall Width | 2 3/8" |
| Pivot | 180° |
| Pivot Angle | 180° |
| Rotate Angle | 360° |
| Series | Shacklehr |
| Standards | Astm 1444 |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Length | 1/2" |
| Thread Size | 5/16"-18 |
| Usable Thread Length | 1/2" |
| Working Load Limit | 3000 lbs. |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 11.56 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.03 |
| Country of Origin | US |
Features:
- Design Factor:?5:1, Magnetic Particle Inspected Per ASTM E1444
- Range of Movement:?Swivel 360?, Pivot 180? Under Load
- Finish:?Black Oxide Finish for corrosion resistance
- Typical Applications:?The ADB Shackle Hoist Ring is used for OEM applications and permanent mounting on dies, molds, fixtures or equipment. Can be bolted or welded in place and are ideal for lifting large and heavy structures.
- All dimensions approximate ??variations do not effect use or design factor.
Product Variants
| Model | Load Capacity | Thread Size | Material | Pivot | Swivel Angle | Finish | Price | |
|---|---|---|---|---|---|---|---|---|
| 36510 | 2000 lbs. | 1/4"-20 | Alloy Steel | 180° | 360° | Black Oxide | €235.82 | |
| 36530 | 4000 lbs. | 3/8"-16 | Alloy Steel | 180° | 360° | Black Oxide | €303.35 | |
| 36540 | 6500 lbs. | 7/16"-14 | Alloy Steel | 180° | 360° | Black Oxide | €298.00 | |
| 36550 | 13000 lbs. | 5/8"-11 | Alloy Steel | 180° | 360° | Black Oxide | €382.39 | |
| 36560 | 19000 lbs. | 3/4"-10 | Alloy Steel | 180° | 360° | Black Oxide | €661.21 | |
| 36570 | 24000 lbs. | 7/8"-9 | Alloy Steel | 180° | 360° | Black Oxide | €629.25 |
