ADB HOIST RINGS MFG. 33614 Hoist Ring, 180 Pivot 4000 Lbs. Load Capacity, 360 Swivel Angle, Alloy Steel
Get it by Monday, Dec 22
€77.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Finish | Black Oxide |
| Grade | Grade 4140 |
| Load Capacity | 4000 lbs. |
| Material | Alloy Steel |
| Pivot | 180° |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Projection | 1" |
| Thread Size | 5/8"-11 |
| Torque | 60 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 18.57 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Features:
- Design Factor:?Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis
- Range of Movement:?Swivel 360?, Pivot 180? Under Load
- Specifications:?Meets Military Specification No. MIL-STD 209, Meets ANSI/ASME B30.26
- Finish:?Black Oxide Finish for corrosion resistance, *
- Typical Applications:?ADB?? HEAVY DUTY??Hoist Rings are specified and used in nuclear energy equipment
- 200% Proof Load Tested
- Individually Serial Numbered
- All dimensions approximate variations do not effect use or design factor.
- Also available in a wide range of plating ??e.g Cadmium, Titanium-Cadmium, Nickel, etc.
Product Variants
| Product | Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Finish | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
34050 | Alloy Steel | 5/8"-11 | - | 180° | 0° | Black Oxide | - | €186.93 | |
|
33112 | Alloy Steel | 1/4"-20 | Imperial | 180° | 360° | Black Oxide | 550 lbs. | €108.41 | |
|
33212 | Alloy Steel | 5/16"-18 | Imperial | 180° | 360° | Black Oxide | 800 lbs. | €118.25 | |
 |

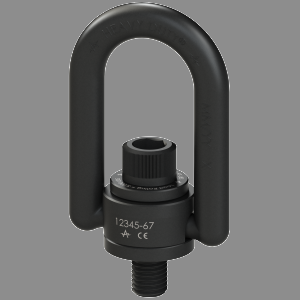

33213 | Alloy Steel | 5/16"-24 | Imperial | 180° | 360° | Black Oxide | 800 lbs. | €68.30 | |
|
33214 | Alloy Steel | 5/16"-18 | Imperial | 180° | 360° | Black Oxide | 800 lbs. | €123.74 | |
 |

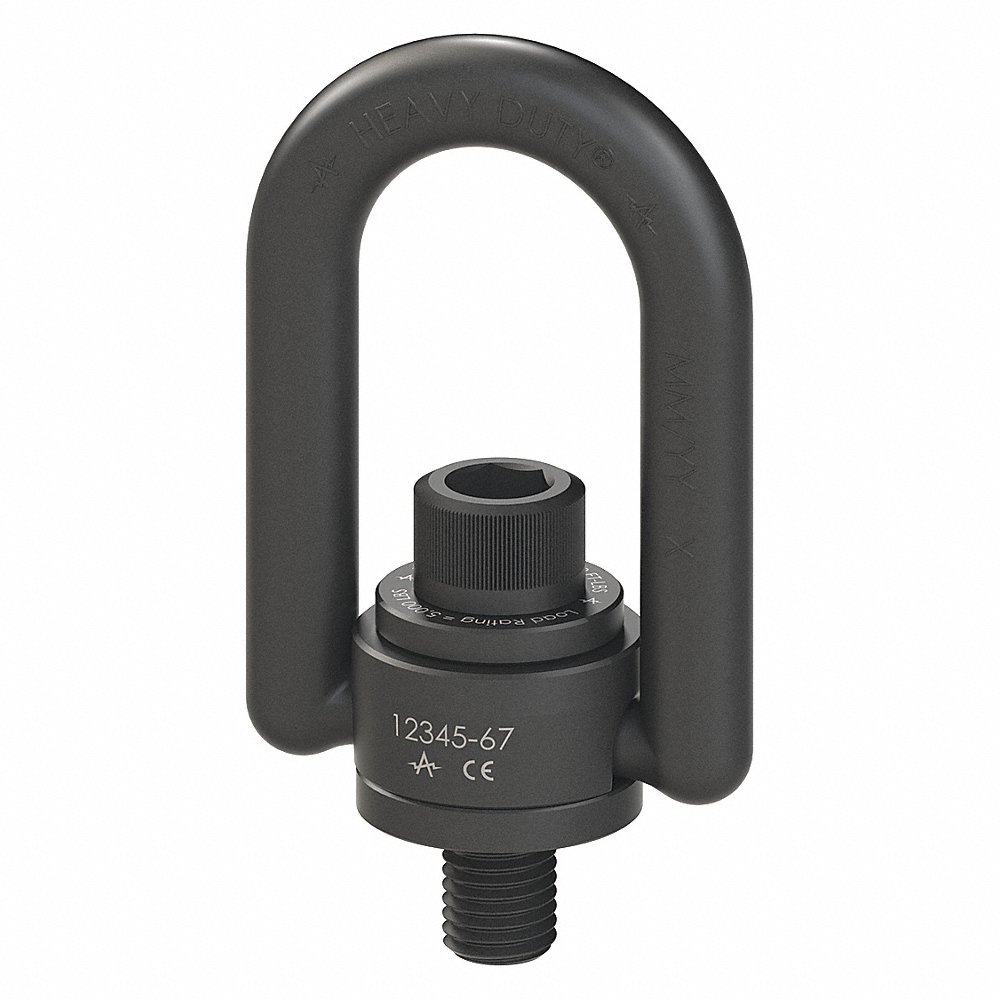

33312 | Alloy Steel | 3/8"-16 | Imperial | 180° | 360° | Black Oxide | 1000 lbs. | €128.12 | |
|
33313 | Alloy Steel | 3/8"-24 | Imperial | 180° | 360° | Black Oxide | 1000 lbs. | €68.30 |
