ADB HOIST RINGS MFG. 29009 Hoist Ring, 2500 lbs. Load Capacity, 3/4-10 Thread Size, 50 ft. lbs. Torque
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€495.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Inside Length | 2" |
| Bail Inside Width | 1 1/2" |
| Bail Thickness | 3/4" |
| Color | Silver |
| Finish | Plain |
| Hardware Included | Removable Bolt |
| Hoist Ring Type | Pivot, Swivel |
| Load Capacity | 2500 lbs. |
| Material | Stainless Steel |
| Maximum Operating Temperature | 400°F |
| Minimum Installation Torque | 50 lbs.-ft. |
| Minimum Operating Temperature | -20°F |
| Mount Type | Screw On |
| Operation | Lifting, Pulling |
| Overall Length | 3 1/2" |
| Overall Width | 2 3/8" |
| Pivot | 180° |
| Pivot Angle | 180° |
| Rotate Angle | 360° |
| Series | SEHRSS Series |
| Standards | Astm A967, Astm E1417, Qq-P-35 Type Ii |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Projection | 1.53" |
| Thread Size | 3/4"-10 |
| Torque | 50 lbs.-ft. |
| Usable Thread Length | 1 1/2" |
| Working Load Limit | 2500 lbs. |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 18.57 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 6.03 |
| Country of Origin | US |
Features:
- Material:?300 Series Stainless Steel
- Design Factor:?5:1, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance ? .030 inch unless otherwise specified
- Range of Movement:?Swivel 360?, Pivot 180? Under Load
- Specifications:?NDT: 100% Liquid Penetrant Tested Per ASTM E1417, Purification Process: Clean & Passivate Per ASTM A967, QQ-P-35 TYPE II
- Typical Applications:?Use Stainless for Corrosive, Cryogenic?or Elevated Temperature Environments
- 150% Proof Load Tested
- Individually Serial Numbered
- All dimensions approximate ??variations do not effect use or design factor.
Product Variants
| Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|
| 29050 | Stainless Steel | 1/4"-20 | Imperial | 180° | 360° | 275 lbs. | €445.00 | |
| 29051 | Stainless Steel | 5/16"-18 | Imperial | 180° | 360° | 400 lbs. | €457.02 | |
| 29052 | Stainless Steel | 5/16"-18 | Imperial | 180° | 360° | 400 lbs. | €447.09 | |
| 29053 | Stainless Steel | 3/8"-16 | Imperial | 180° | 360° | 500 lbs. | €459.24 | |

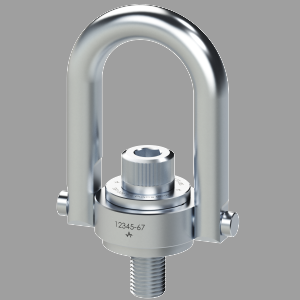

| 29301 | Stainless Steel | 1/2"-13 | Imperial | 180° | 360° | 1250 lbs. | €552.92 | |
| 29004 | Stainless Steel | 1/2"-13 | Imperial | 180° | 360° | 1250 lbs. | €550.27 | |
| 29322 | Stainless Steel | 1/2"-13 | Imperial | 180° | 360° | 1250 lbs. | €361.03 |
